APC Smart-UPS SRT5KRMXLTUS Essential Series UPS – 4250 Watt 5000 VA TAA Compliant


APC Smart-UPS SRT SRT5KRMXLTUS – Essential Series – UPS (rack-mountable) – AC 208 V – 4250 Watt – 5000 VA – Ethernet 10/100, USB, serial – output connectors: 4 – 3U – 19″ – black – TAA Compliant – for P/N: AR3103, AR3103SP, AR3106SP, AR3357X674, AR9300SP,

SKU: SRT5KRMXLTUS Categories: , , Brand: APC


The APC Smart-UPS SRT5KRMXLTUS Essential Series UPS is a TAA-compliant 2U extended-run battery system. It is for models AR3103, AR3103SP, AR3106SP, AR3357X674, and AR9300SP.

APC – The absolute leader in battery backup

From battery backups that safeguard against outages, to full-scale data center infrastructure. From surge protection and power conditioning to rack mounts and a host of other accessories. APC can help your home and business become more efficient, reliable, and connected.

The APC Smart-UPS series are a hugely popular and successful line of power backup systems. They go from entry-level up to full-on enterprise grade products. They are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions.

They supply reliable, network-grade power reliably and efficiently. Entry level models such as the SMC1000C and SMC1500C are an affordable choice for small and medium businesses looking to protect small networking devices, point-of-sale equipment and entry level servers.

And the extended run models like the SMT2200s accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours. Smart-UPS provides availability and manageability to your network so you can focus on business growth instead of business downtime. Smart-UPS is EcoStruxure enabled.

Smart-UPS – Something for everybody

The Smart-UPS line is extensive. For the sake of simplicity, the original Smart-UPS line is listed here according to power rating (in volt-amps). Simply click to learn more about some of the APC Smart-UPS models rated for: 420 VA, 500 VA, 1000 VA, 1440 VA, 1500 VA, 1920 VA, 2200 VA, 2880 VA, 3000 VA, and 5000 VA.

Smart-UPS accessories

Smart-UPS accessories include various backplate PDU options, external standard and switched PDU options, matching battery cabinets for extending run time(Smart-UPS XL only), management devices, service products, and mounting options. These accessories can customize your solution to increasing availability, adaptability, serviceability, manageability, and performance. Call Corporate Armor at 866-530-8335 or email us for more info.


One feature that stands out on the APC Smart-UPS series is APC’s SmartConnect technology. This allows your UPS to be cloud-enabled. That means you can login via a secure portal via any internet-connected device. Then you can view the status of your UPS, receive notifications, get firmware updates and more.

So for those who don’t have time to monitor the UPS, this can be quite valuable. In addition, the UPS also has both line interactive topology (via an automatic voltage regulator), and uses a clean pure sine wave form for output.

This makes it compatible with most any computer or audio gear. Smart-UPS provides availability and manageability to your network so you can focus on business growth instead of business downtime. Smart-UPS is EcoStruxure enabled. Be sure to give Corporate Armor a call at 866-530-8335, or reach out at [email protected] so we can answer all your APC Smart-UPS questions!


APC Smart-UPS SRT5KRMXLTUS Essential Series UPS highlights

  • Adjustable voltage sensitivity
  • Automatic restart of loads after UPS shutdown
  • Adjustable voltage sensitivity

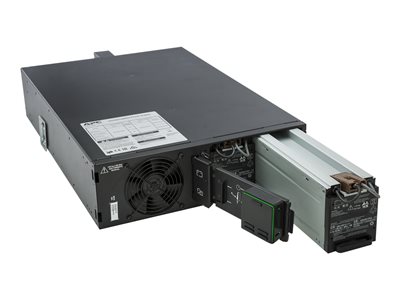

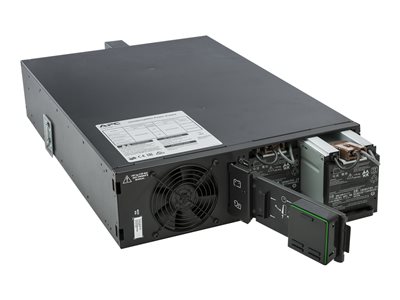

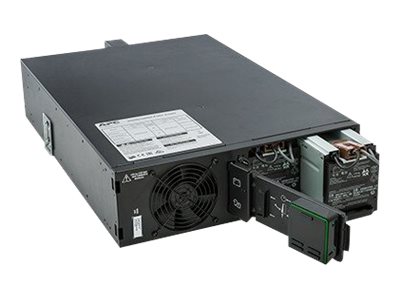

  • User-replaceable batteries




Read more


APC Smart-UPS: The world’s most popular for a reason!



Additional information

Weight 120.001 lbs
Dimensions 955.00 × 628.00 × 327.00 in
Product Description APC Smart-UPS SRT SRT5KRMXLTUS - Essential Series - UPS - 4250 Watt - 5000 VA - TAA Compliant
Device Type UPS - rack-mountable
Rack Size 19"
Input Voltage AC 208 V
Output Voltage AC 208 V 50/60 Hz
Power Capacity 4250 Watt / 5000 VA
Input Connectors 1 x power NEMA L6-30P
Output connectors 2 x power NEMA L6-30R u00a6 2 x power NEMA L6-20R
Battery Lead acid
Run Time (Up To) 4.4 min at full load u00a6 12.6 min at half load
Networking Ethernet 10/100, USB, serial
Remote Management Protocol SNMP, Telnet, HTTP, Modbus
Color Black
TAA Compliant Yes
Environmental Standards ENERGY STAR
Manufacturer Warranty 3-year warranty
Designed For P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF101BLK, ACF102BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR3810, AR3812, AR4000MV, AR4000MVX429, AR4000MVX432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7007, AR7050, AR7057, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A, SMX2000LV, SMX2000LVUS, SRT1000RMXLA, SRT1500RMXLA-NC, SU2000R3X155, SU2200R3X167, SUA3000R2IX38
UPS Technology On-line
Input Voltage Range AC 160 - 275 V
Frequency Provided 50/60 Hz u00b1 3%
Frequency Required 40 - 70 Hz
Power Output Connectors Details 2 x power NEMA L6-30R u00a6 2 x power NEMA L6-20R
Output Waveform Sinewave
Surge Suppression Yes
Efficiency 97%
Technology Lead acid

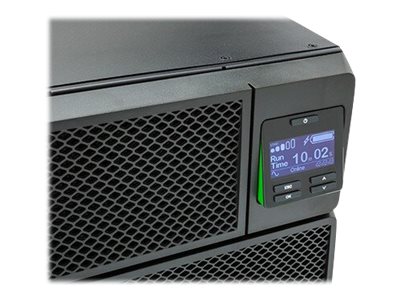

Features Audible alarm, LCD display, energy meter, double conversion
Remote Management Interface Ethernet 10/100, USB, serial
Interfaces 1 x management (Fast Ethernet) - RJ-45 u00a6 1 x management (USB) u00a6 1 x EPO (emergency power off) u00a6 1 x serial - RJ-45
Expansion Slots 1 (total) / 1 (free) x SmartSlot
Cables Included Power cable
Compliant Standards NOM, UL 1778, FCC Part 15 A, CSA C22.2 No. 107.3, OSHPD
Service & Support Limited warranty - 3 years u00a6 Limited warranty - batteries - 2 years
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 0 - 95% (non-condensing)
