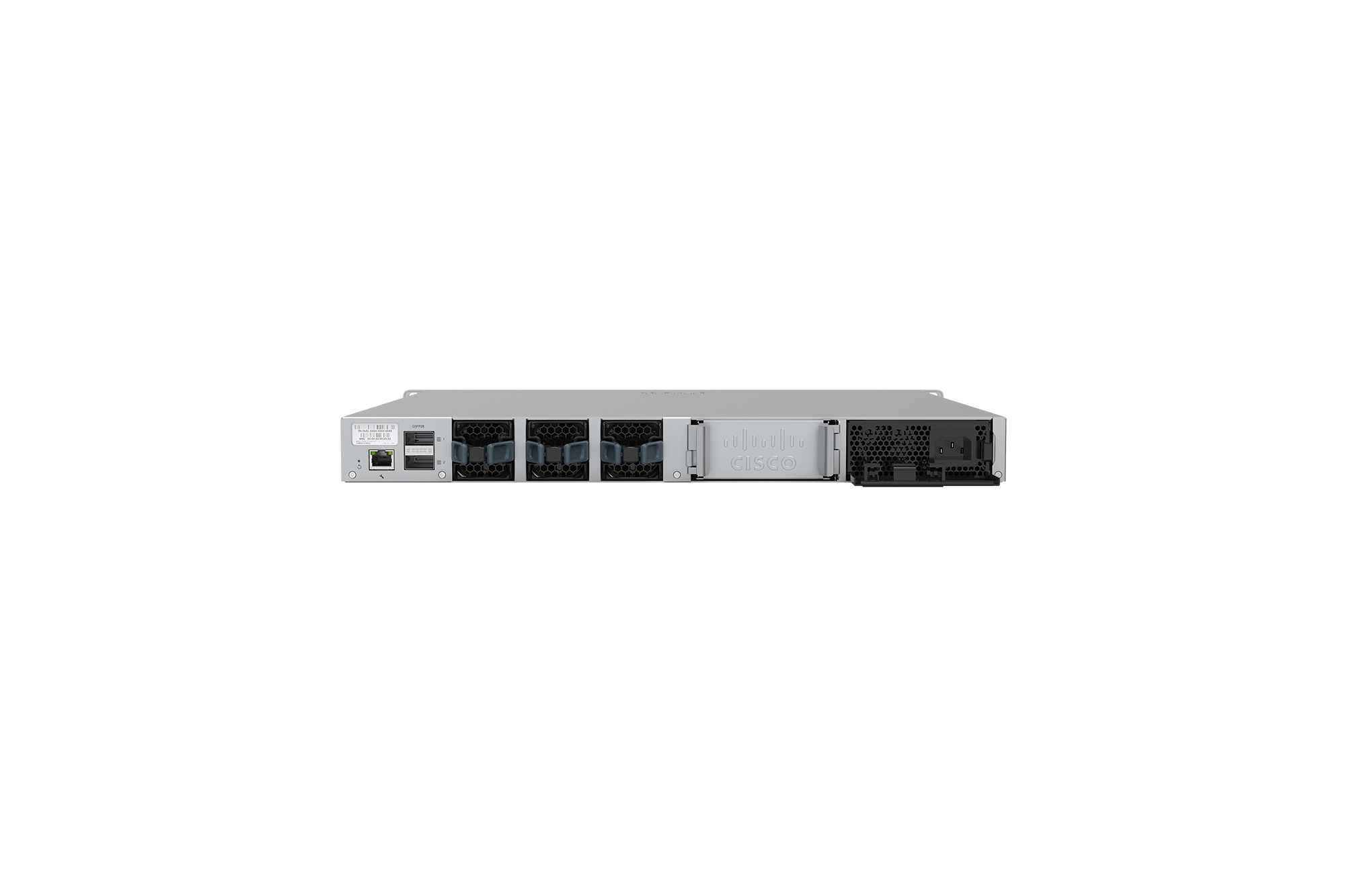

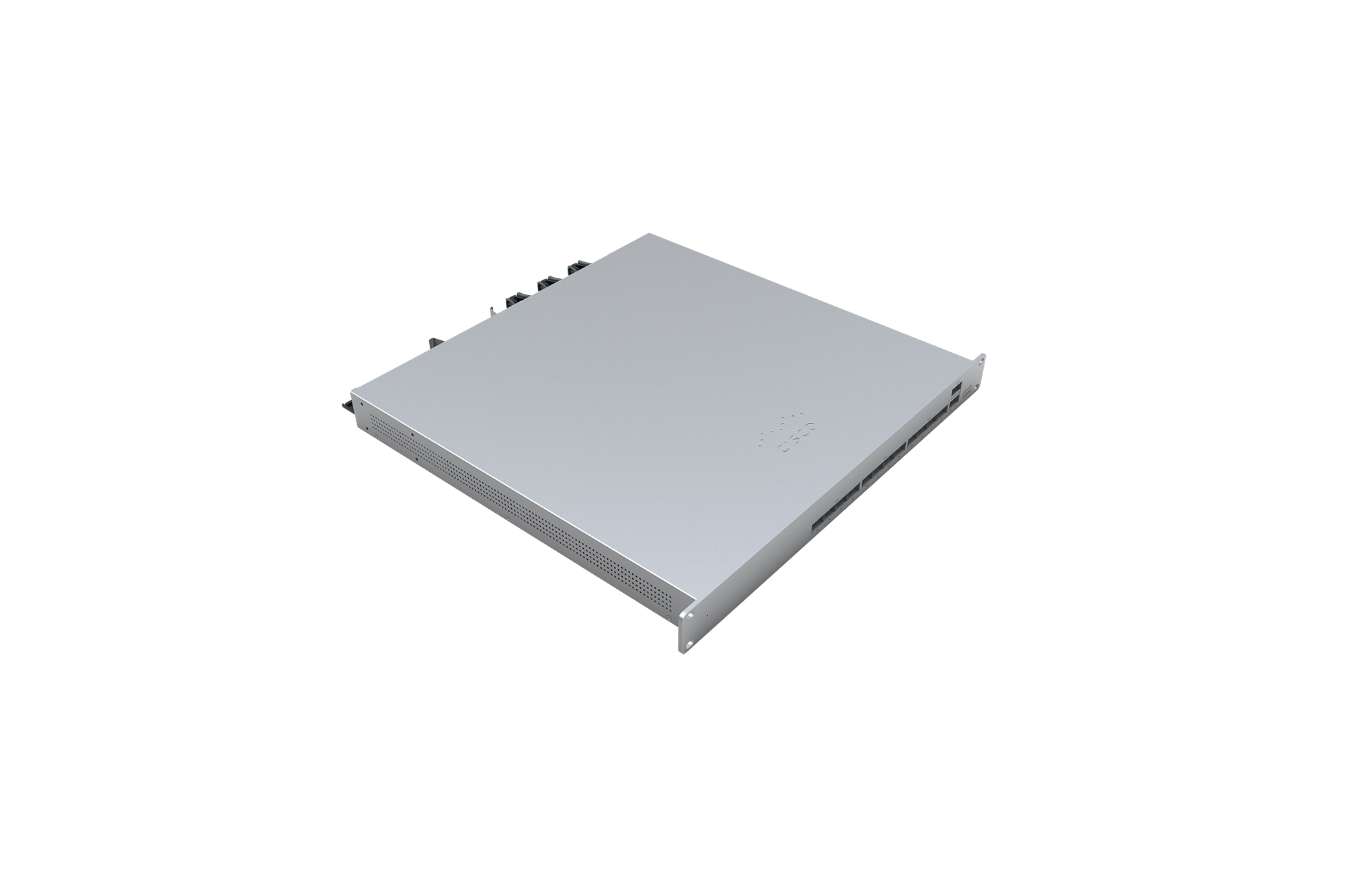

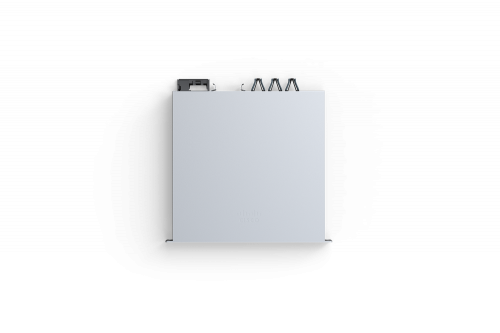

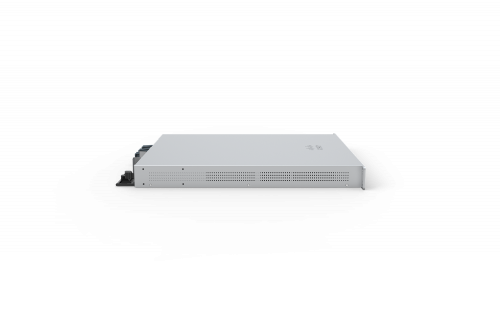

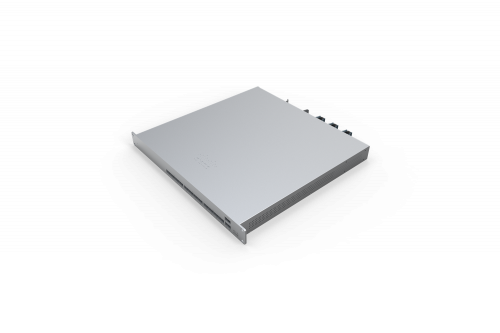

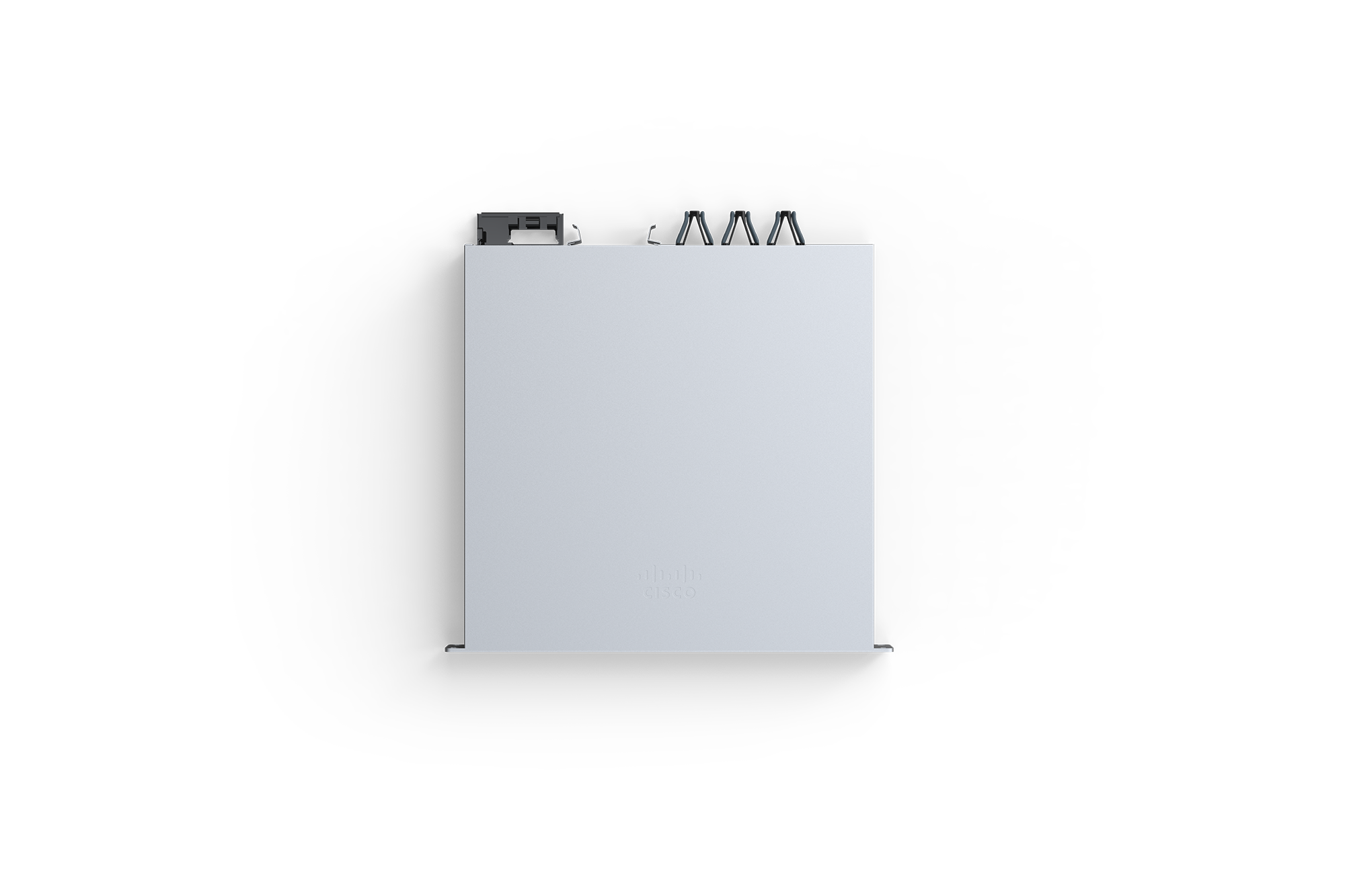

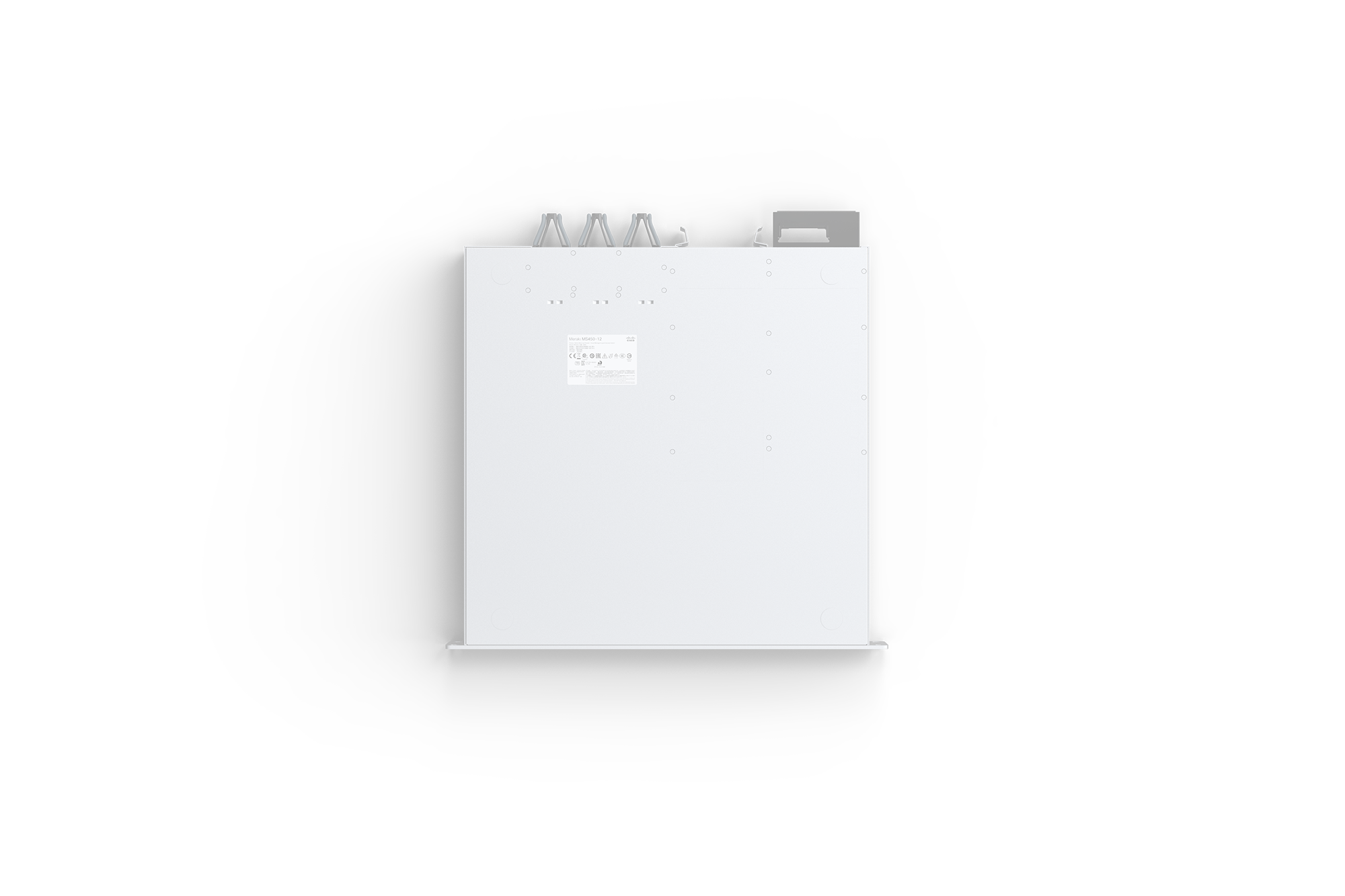

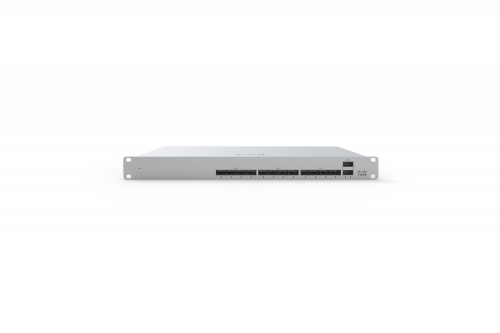

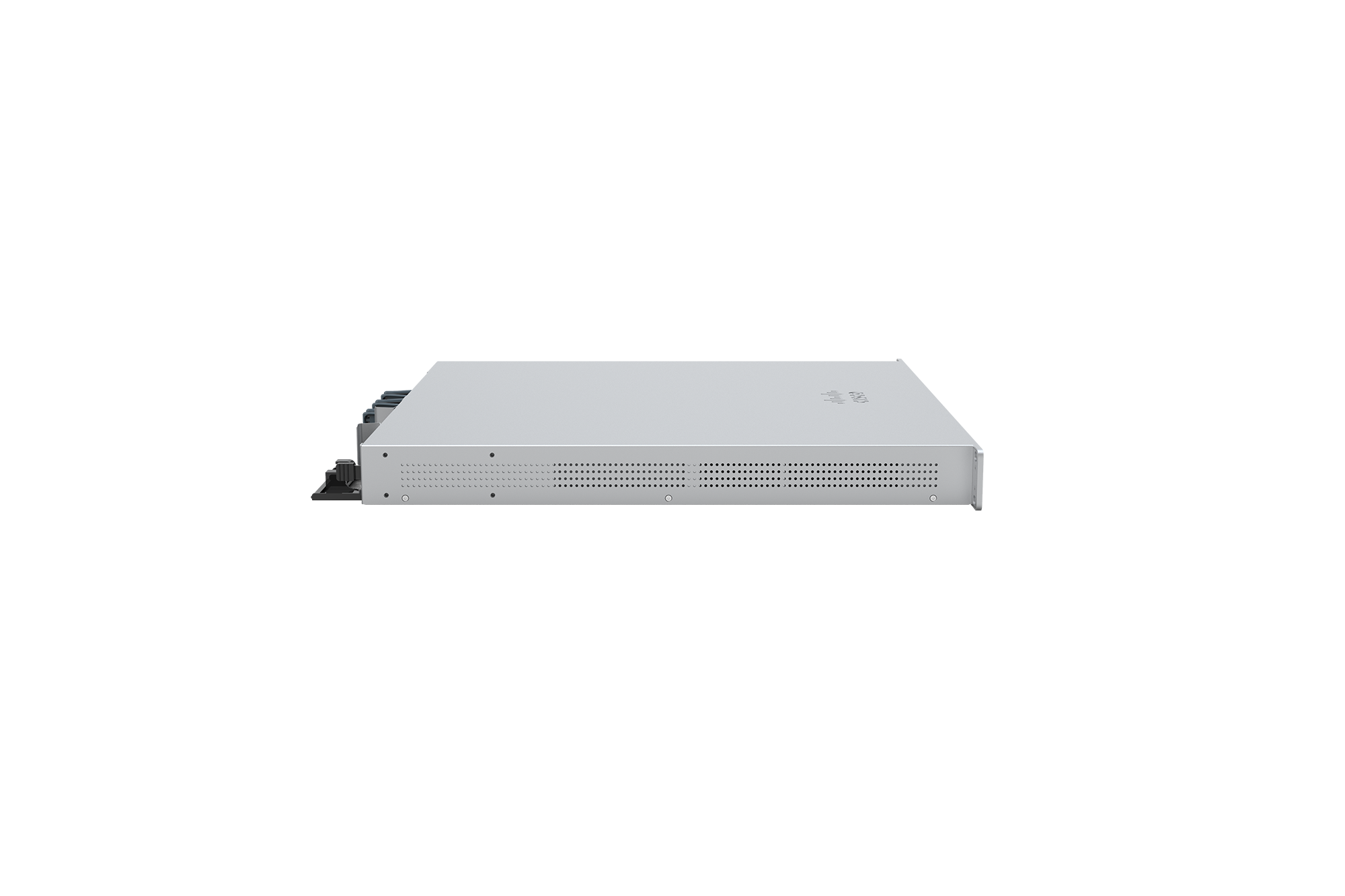

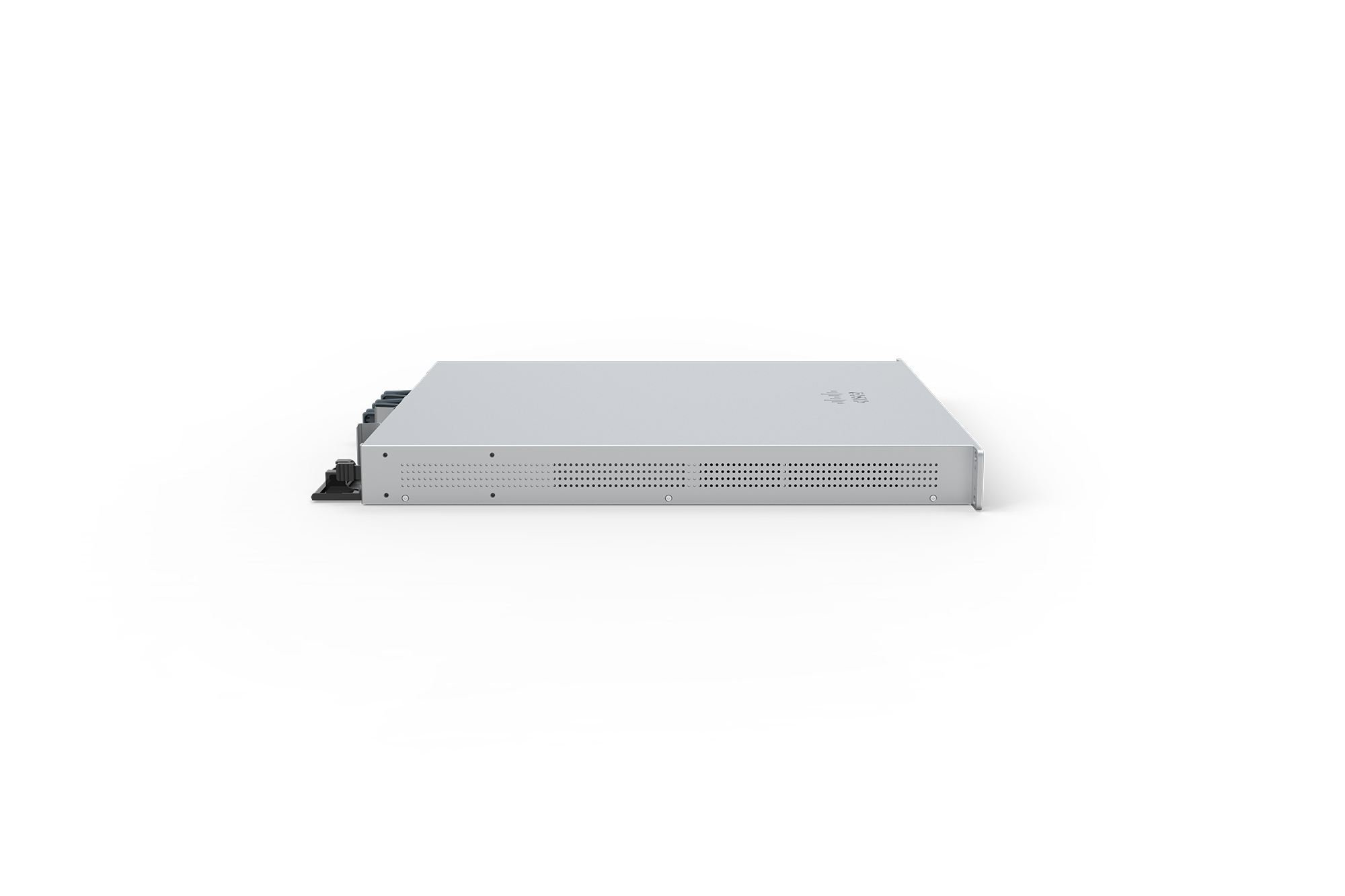

Meraki MS450-12 cloud managed aggregation switch 12 ports

Cisco Meraki Cloud Managed MS450-12 – Switch – managed – 12 x 40 Gigabit QSFP+ + 2 x 100 Gigabit QSFP+ – front to back airflow – desktop, rack-mountable

SKU: MS450-12~PVAR Categories: , Brand: Cisco Meraki


The Meraki MS450-12 cloud managed aggregation switch brings powerful cloud-managed switching to the aggregation layer. This 12 port, 40G aggregation switch adopts the benefits of the cloud: simplified management, network wide control, and lower cost.

 The Meraki MS450 has 12 x 40 Gigabit QSFP+ and 2 x 100 Gigabit QSFP+ ports.

Super-easy setup

We’ll talk about setup first. Meraki MS switches are wonderful at allowing a network admin to configure a VPN mesh network without having to have highly specialized knowledge. Unlike Cisco switches, there is no CLI, there is only a GUI. Also, Meraki support helps you set it up as you add nodes to your network. Meraki MS switches are amazingly easy to deploy, and amazingly easy to manage. Period.

As a matter of fact, this is true everything Meraki makes. They do it better than pretty much anybody else.

Zero-touch provisioning means that Meraki is brilliant for companies with limited IT teams or IT agencies looking to reduce site calls.

The Meraki MS450 series is a high performance L3 branch and campus line. It’s capable of higher capacity routing and stacking bandwidth than the lower down models. Just email us, or call Corporate Armor at 866-861-2498 and let help show you what 5-star Corporate Armor service is all about!


Meraki MS450 Cloud Managed 10GbE Switch

  • Managed via the Cisco Meraki Dashboard
  • Automatic Firmware upgrades
  • 12 40G QSFP+ ports
  • Two 100G QSFP28 uplinks
  • Switching capacity up to 1.36 Tbps
  • Stacking bandwidth up to 400 Gbps





Additional information

Weight 1.4 lbs
Dimensions 0.00 × 0.00 × 0.00 in

No License, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years, 7 Years, 10 Years

Product Description Cisco Meraki Cloud Managed MS450-12 - switch - 12 ports - managed - rack-mountable
Device Type Switch - 12 ports - managed - stackable
Enclosure Type Front to back airflow desktop, rack-mountable 1U
Subtype 40 Gigabit Ethernet
Ports 12 x 40 Gigabit QSFP+ + 2 x 100 Gigabit QSFP+
Performance Stacking bandwidth: 400 Gbps u00a6 Switching capacity: 1.36 Tbps u00a6 Forwarding rate: 654.76 Mpps
MAC Address Table Size 64K entries
Jumbo Frame Support 9578 bytes
Routing Protocol VRRP, RSTP, STP
Remote Management Protocol SNMP
Features ALERT notification, IGMP snooping, Syslog support, port mirroring, Broadcast Storm Control, firmware upgradable, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), 802.1x authentication, 3 fans, Root Guard, Loop Guard, Voice VLAN, BPDU Guard
Compliant Standards CSA, C-Tick, IC, RoHS, IPv6 Ready
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Manufacturer Warranty Limited lifetime warranty
Max Units In A Stack 8
Encryption Algorithm CoA
Authentication Method RADIUS
Interfaces 12 x 40GBase-X QSFP+ u00a6 2 x 100GBase-X QSFP28 uplink u00a6 2 x network stack device u00a6 1 x management RJ-45
Power Device Internal power supply - hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Provided 250 Watt
Voltage Required AC 120/230 V (50 - 60 Hz)
Power Consumption Operational 138 Watt
Rack Mounting Kit Included
MTBF 436,776 hours
Service & Support Limited warranty - advance parts replacement - lifetime - response time: next business day
Min Operating Temperature 32 u00b0F
Max Operating Temperature 113 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
