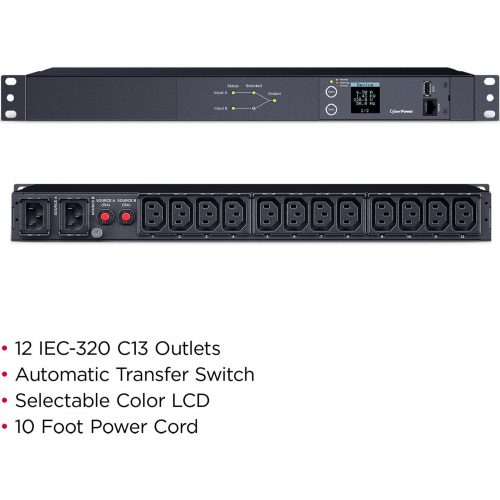

CyberPower PDU24004 Switched ATS PDU – 12 Outlets Metered 230V AC


CyberPower Switched ATS PDU PDU24004 12-Outlets PDU
Phase: Single.
Amps: 15A (Derated to 12A).
Volts: 200-240V.
Frequency: 50/60Hz.
Plug type: 2 x IEC-320 C14.
Outlets: 12 x IEC-320 C13.
Size: 1U Rackmount.
Warranty: 3 year.

SKU: PDU24004 Categories: , Brand: Cyber Power


Ensure continued operation of critical devices with the CyberPower PDU24004 Switched ATS PDU. It’s ideal for data centers and network closets, and provides power redundancy to single corded connected equipment. If power for the primary source exceeds lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

The PDU24004 supports inputs between 200-240V. It includes 12 IEC C13 outlets.  The CyberPower PDU24004 is protected by a three year limited warranty.


CyberPower UPS Systems is a well known US builder of uninterruptible power supplies, surge protectors and other backup power solutions. Some of its more popular products are the affordable line-interactive UPS devices.

CyberPower also manufactures home office and professional-grade UPS systems, PDUs, surge protectors, mobile chargers and connectivity products. They range from consumer grade to IT professional and enterprise. They’re very intent to providing a full range of power management products and solutions. The mission of CyberPower UPS is to help you power, monitor and safeguard critical equipment and data.

Wherever you are, whenever you need power, CyberPower has got you. They offer a huge line of accessories that charge, split, convert, and adapt power to fit your needs.

We are thrilled to be working with them, and are ready to answer your questions and save you money on your next CyberPower purchase, so reach out to us, or call Corporate Armor at 877-449-0458. We can’t wait to serve you!


CyberPower PDU24004 Switched ATS PDU

  • Provides power redundancy to single-corded connected equipment
  • Super easy to install
  • Three-year warranty
  • Superior build quality





Additional information

Weight 10.374 lbs

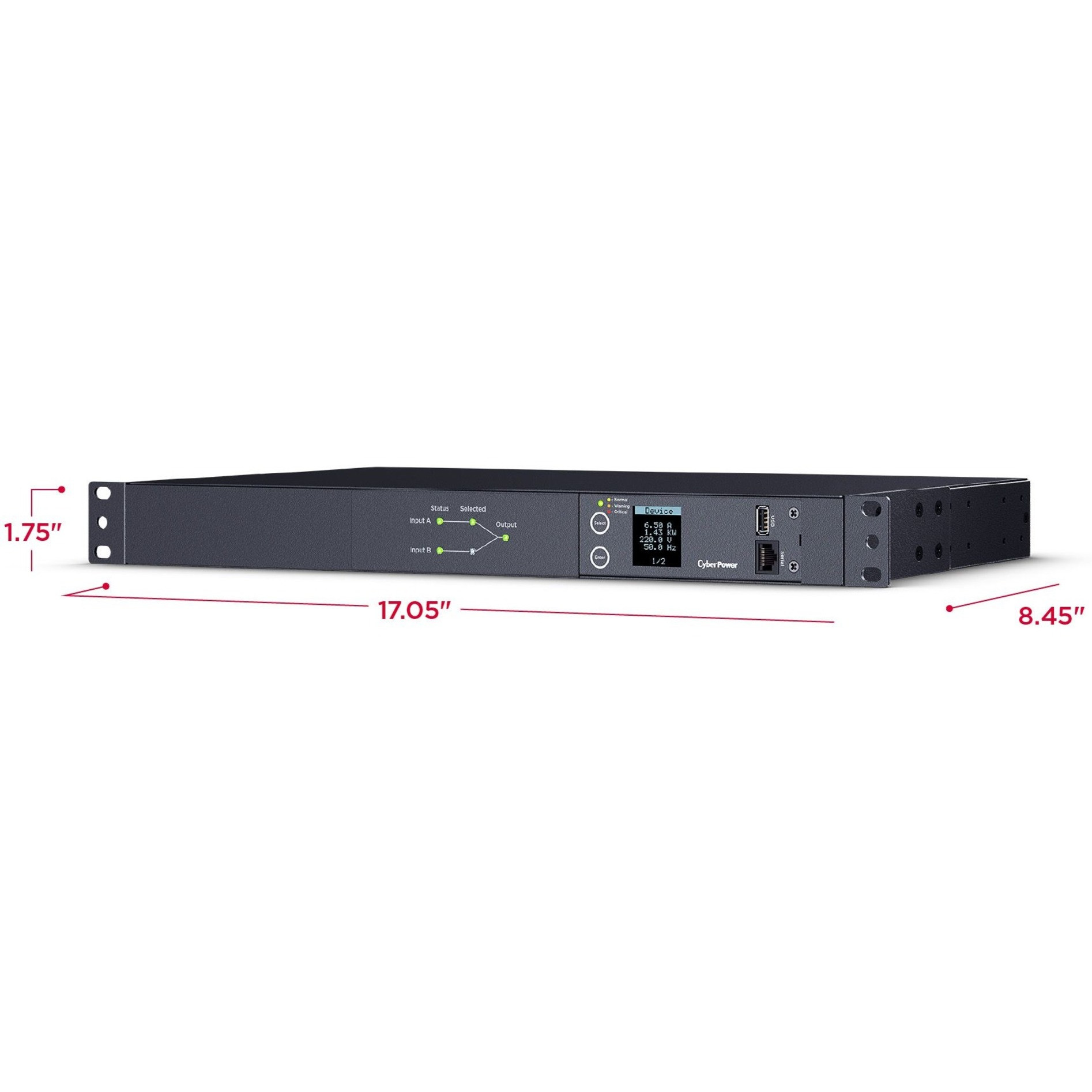

Dimensions 8.45 × 17.05 × 1.75 in
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number PDU24004
Manufacturer Website Address
Limited Warranty 3 Year
Output Voltage 230 V AC
Input Current 15 A
Management IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD,
Manufacturer CyberPower Systems, Inc
Product Model PDU24004
Product Name Switched ATS PDU PDU24004 12-Outlets PDU
Mount Type Rack-mountable
Product Series Metered ATS PDU
Rack Height 1U
Brand Name CyberPower
Plug/Connector Type IEC 60320 C14
Input Voltage Range 200 V AC - 240 V AC
Country of Origin China
Phase Single Phase
Receptacle Type IEC 60320 C13
Environmentally Friendly Yes
Environmental Certification RoHS
Output Voltage Range 200 V AC - 240 V AC
Network (RJ-45) Yes
Design Modular
PDU Type Metered
Mounting Orientation Horizontal
Product Color Black
Receptacle Detail 12 x IEC 60320 C13
Plug/Connector Detail 2 x IEC 60320 C14
Additional Information Cord Length: 10 ft (3.0 m), Derated Input Current: 12 A, Input Frequency Range: 50 Hz - 60 Hz, Input Overload Protection: 15A x 2, Input Plug Type: 2 x IEC-320 C14, Maximum Input Current: 15A, Nominal Input Voltage: 200 - 240 VAC, Phase: Single Phase, Plug Style: Straight (Socket), Nominal Output Voltage: 200 - 240 VAC, Outlet Banks: 1, Outlets - Total: 12, Outlet Type COMPUTED: 12 - IEC-320 C13, Overload Protection: None, Power Source Transfer Time: 2-7 ms, Source Failure Detection Time: 2-3 ms, Total Transfer Time: <10 ms, Hardware Connection Port: Serial (RJ45), LCD: Multifunction LCD, LED Indicators: Source Status, Upgradeable firmware: Yes, Color: Black, Cord Retention Tray/Cord Organizers: Yes, External Site Ground Pin: Yes, Material of Construction: Metal, Operating Elevation: 0 - 13123 ft (0 - 4000 m), Operating Relative Humidity: 0 - 95 % (non-condensing), Operating Temperature: 32 - 113 °F (0 - 45 °C), Storage Elevation: 0 - 49213 ft (0 - 14999 m), Storage Temperature: 5 - 131 °F (-15 - 55 °C), Safety: UL62368: FCC Class A: cTUVus/CE/UKCA,
GTIN 0649532933334
UPC 649532933334
EAN 0649532933334
UNSPSC 39121017
