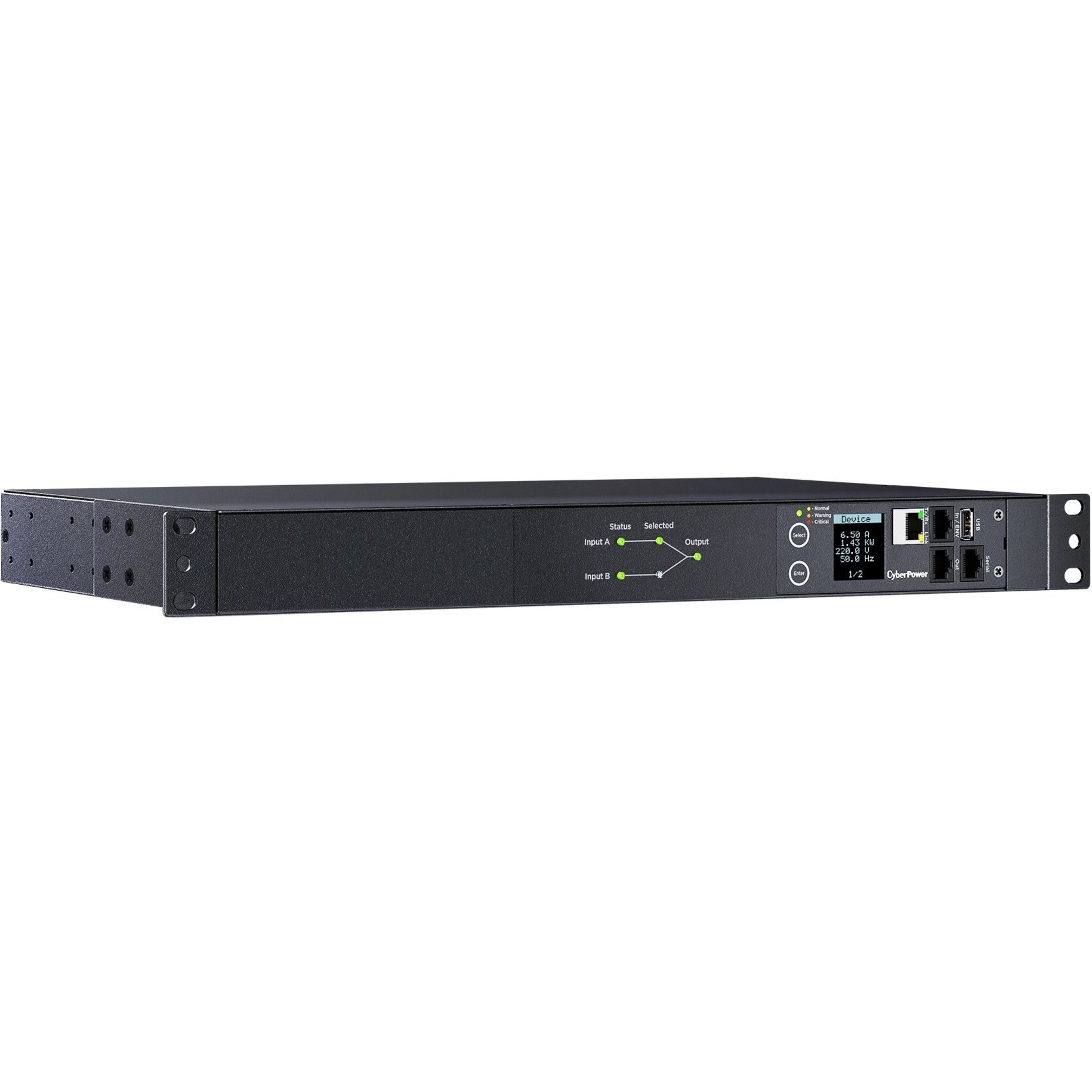

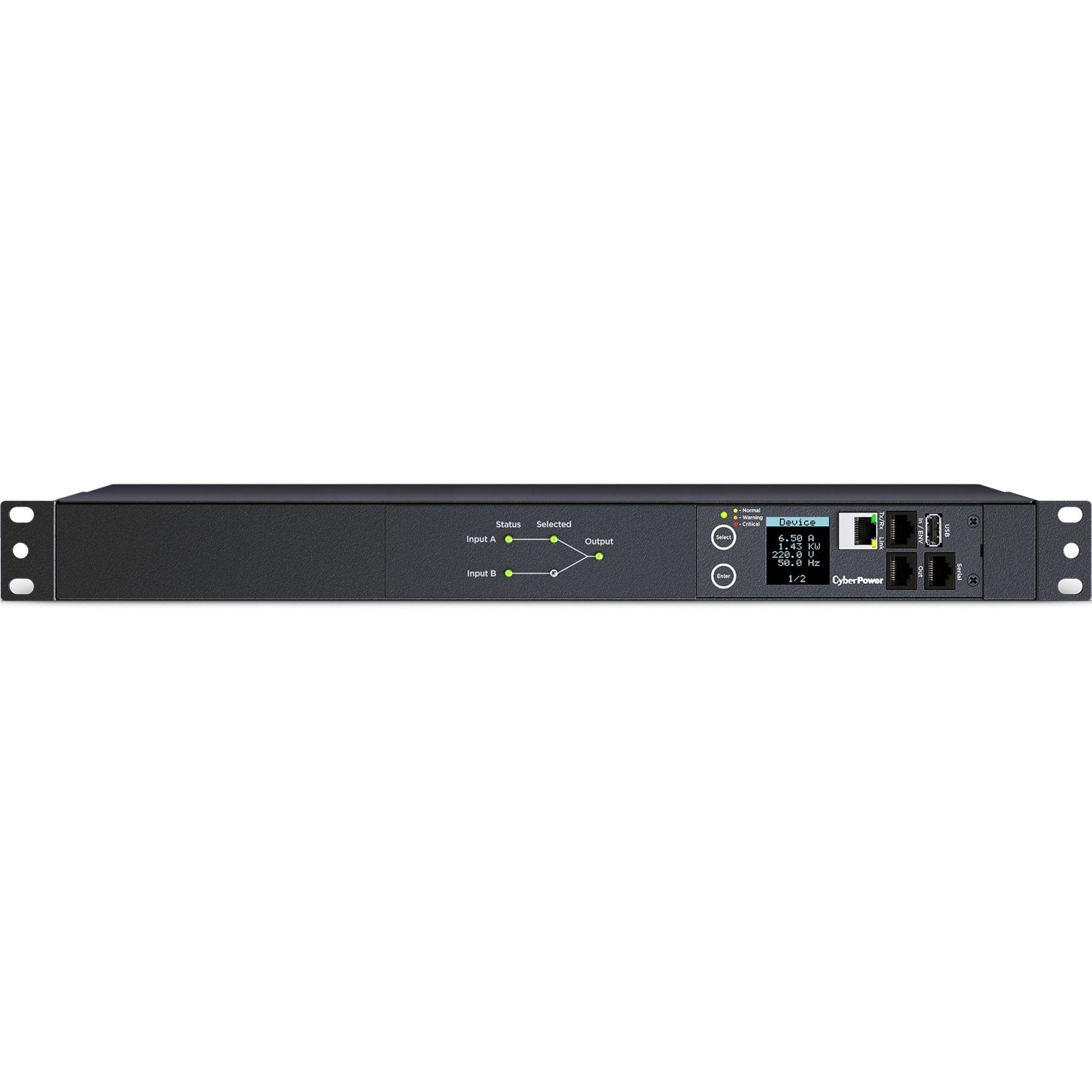

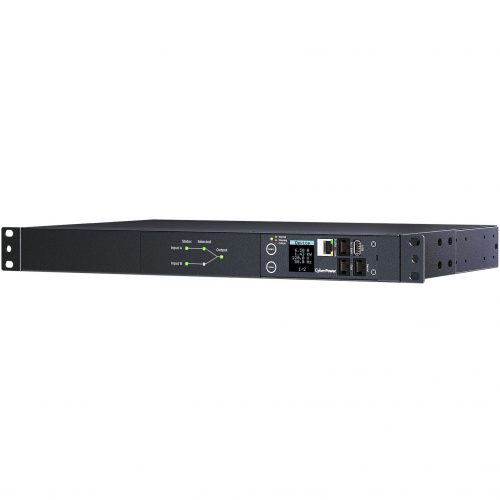

CyberPower PDU44005 Switched ATS PDU – 10-Outlets 230V AC


Phase: Single.
Amps: 20A (Derated to 16A).
Volts: 200-240V.
Frequency: 50/60Hz.
Plug type: 2 x IEC-320 C20.

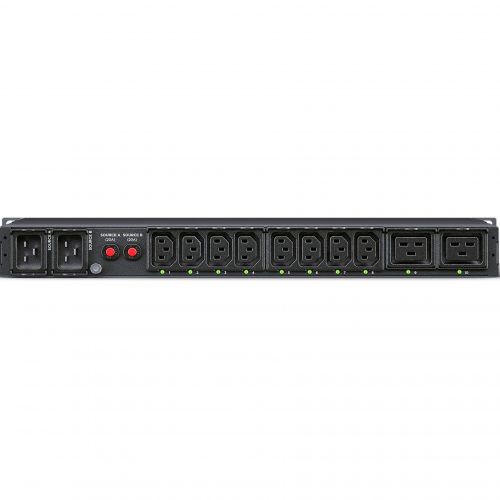

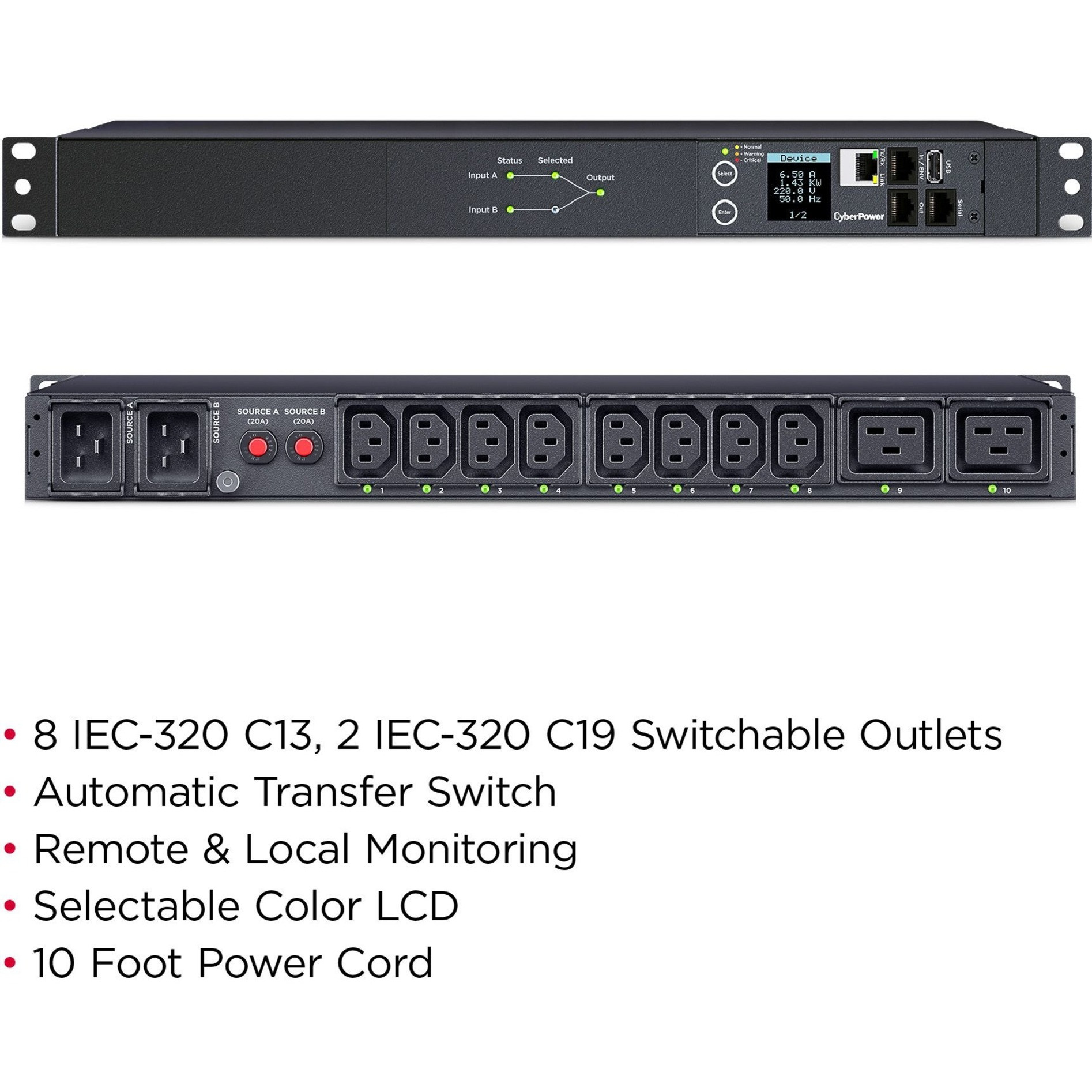

Outlets: 8 x IEC-320 C13, 2 x IEC-320 C19.
Size: 1U Rackmount.
Warranty: 3 year.

SKU: PDU44005 Categories: , Brand: Cyber Power


Ensure continued operation of critical devices with the CyberPower PDU44005 Switched ATS PDU. It’s ideal for data centers and network closets, and provides power redundancy to single-corded connected equipment. If power for the primary source exceeds thresholds, or if power fails, the PDU will switch to the secondary power source, ensuring continuous operation.

Then, the PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

The PDU44005 supports inputs between 200-240V and includes 8 IEC C13 and 2 IEC C19 outlets. The CyberPower PDU44005 is protected by a three-year limited warranty.


CyberPower UPS Systems is a well known US manufacturer of uninterruptible power supplies, surge protectors and other backup power solutions. Some of its more popular products are the affordable line-interactive UPS devices.

CyberPower also manufactures home office and professional-grade UPS systems, PDUs, surge protectors, mobile chargers and connectivity products. They range from consumer grade to IT professional and enterprise. They’re very intent to providing a full range of power management products and solutions. The mission of CyberPower UPS is to help you power, monitor and safeguard critical equipment and data.

Wherever you are, whenever you need power, CyberPower has got you. They offer a huge line of accessories that charge, split, convert, and adapt power to fit your needs.

We are thrilled to be working with them, and are ready to answer your questions and save you money on your next CyberPower purchase, so reach out to us, or call Corporate Armor at 877-449-0458. We can’t wait to serve you!


CyberPower PDU44005 Switched ATS PDU

  • Super easy to install
  • Three-year warranty
  • Superior build quality




Additional information

Weight 11.606 lbs
Dimensions 8.45 × 17.05 × 1.75 in
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number PDU44005
Manufacturer Website Address
Limited Warranty 3 Year
Output Voltage 230 V AC
Input Current 20 A
Management IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD,
Manufacturer CyberPower Systems, Inc
Product Model PDU44005
Product Name Switched ATS PDU PDU44005 10-Outlets PDU
Mount Type Rack-mountable
Product Series Switched ATS PDU
Rack Height 1U
Brand Name CyberPower
Plug/Connector Type IEC 60320 C20
Input Voltage Range 200 V AC - 240 V AC
Country of Origin China
Phase Single Phase
Receptacle Type IEC 60320 C13, IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Output Voltage Range 200 V AC - 240 V AC
Network (RJ-45) Yes
Design Modular
PDU Type Switched
Mounting Orientation Horizontal
Product Color Black
Receptacle Detail 8 x IEC 60320 C13, 2 x IEC 60320 C19
Plug/Connector Detail 2 x IEC 60320 C20
Additional Information Cord Length : 10 ft (3.0 m), Derated Input Current : 16 A, Input Frequency Range : 50 Hz - 60 Hz, Input Overload Protection : 20A x 2, Plug Style : Straight (Socket), Nominal Output Voltage : 200 - 240 VAC, Outlet Banks : 1, Outlets - Total : 10, Overload Protection : None, Power Source Transfer Time : 2-7 ms, Source Failure Detection Time : 2-3 ms, Total Transfer Time : &lt;10 ms, Environmental Sensor : Optional, via RJ45, Hardware Connection Port : Ethernet (RJ45), LCD : Multifunction LCD, LED Indicators : Source Status, Modular Expandability (Cascading) : Yes, via RJ45, Outlet switching : Yes, SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD, Upgradeable firmware : Yes, Cord Retention Tray/Cord Organizers : Yes, External Site Ground Pin : Yes, Form Factors Supported : 1U Rackmount, Material of Construction : Metal, Rack Height : 1U, Style : Rackmount, Operating Elevation : 0 - 13123 ft (0 - 4000 m), Operating Relative Humidity : 0 - 95 % (non-condensing), Operating Temperature : 32 - 113 &deg;F (0 - 45 &deg;C), Storage Elevation : 0 - 49213 ft (0 - 14999 m), Storage Temperature : 5 - 131 &deg;F (-15 - 55 &deg;C), <p></p>
Remote Outlet Switching Yes
GTIN 0649532933365
UPC 649532933365
EAN 0649532933365
UNSPSC 39121017
