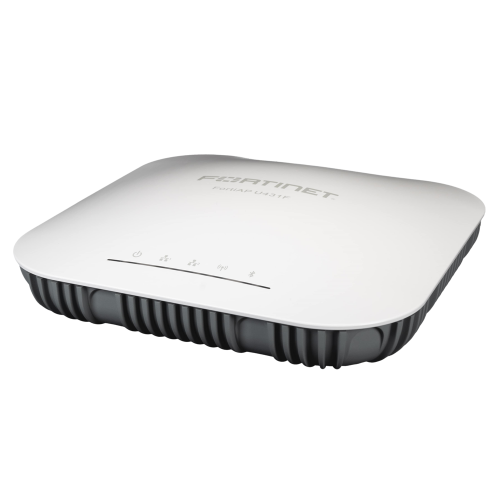

Fortinet FortiAP U431F Universal Indoor Wireless Access Point


4×4 Wi-Fi 6, tri-radio design for 24/7 scanning or dual 5 GHz operation radios, includes BLE radio, 1x 2.5 GE RJ45 and 1x GE RJ45, 802.3at PoE, internal antennas, ceiling/wall mount kit included, power adapter not included.

SKU: FAP-U431F-A Categories: , Brand: Fortinet


FortiAP U431F Wi-Fi 6 access point

The FortiAP U431F/433F Wi-Fi 6 access point is the next step up from the 231F. They’re pretty much top-of-the-line, in fact. The difference between the FortiAP U431F and the FortiAP U433F is that the 433 has 10 external antennas, the 431F’s antennas are internal.

The FortiAP U Series offers a wide range of access points. You can manage them by any of Fortinet’s controller and management options: Cloud, FortiOS, or WLAN Controller. There are models available right across the performance spectrum, and today we’re looking at the FortiAP U421EV. The “U” stands for “Universal,” because they are universally manageable, as mentioned.

This 4×4:4 MU-MIMO device has three radios, a 2.4 GHz, and 2 5 GHz ones. It delivers 4.8 Gbps on the 5 GHz radios, and 600 Mbps on the 2.4 GHz radio. There’s also a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. It can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The FAP-U431F provides OFDMA, as well.

Is the FortiAP U431F a good fit for me?

The enterprise-grade FortiAP U431F is ideal for high-density public environments. Since it’s designed for faster browsing and downloading from mobile devices, companies with 5G deployments and offices with high-bandwidth use would also benefit. Manage it either by the built-in WLAN controller of your FortiGate, or the easy-to-navigate FortiAP Cloud portal.

But since we’re premier Fortinet specialists, Corporate Armor is your best bet if you want to find out more about this slick, inexpensive little access point. Our advice will be driven by your unique needs, nothing more.

So please reach out to us here, or call 877-449-0458.


Three radio, 4×4:4 MU-MIMO
Dual 1 Gbps Ethernet ports
4.8 Gbps Maximum Data Rate on the 5 GHz bands
600 Mbps Maximum Data Rate on the 2.4 GHz band
10 antennas


Read about the FortiAP U431F here!

Additional information

Weight 7.84 lbs
Dimensions 8.5 × 8.5 × 2.3 in
