Description

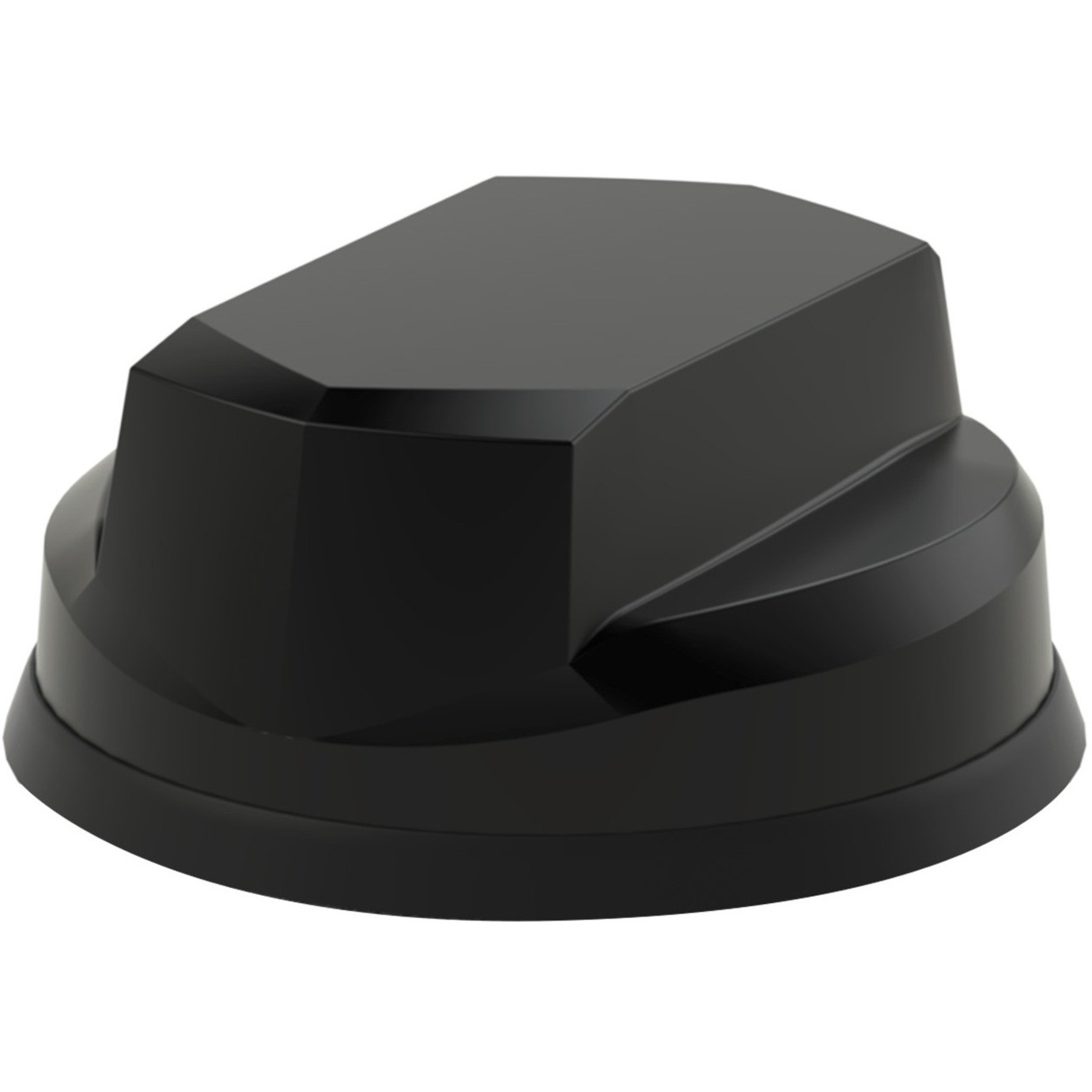

Panorama Antennas LG-IN2458 Antenna
The LG-IN2458 is a high performance 2×2 MiMo LTE, 6×6 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
- Low profile antenna with 9 functions in 1
- 2×2 MiMo 4G/5G LTE cellular, 6×6 MiMo Dual Band WiFi and GPS/GNSS in one housing
- Kits with extension cables available for a range of LTE routers
- Suitable for Cradlepoint COR IBR900 Series Routers
The LG-IN2458 range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 4×4 MiMo WiFi 2.4/5.0GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
