Sale!

Startech .com Dual HDMI over CAT6 Extender1080p over CAT6 or CAT5eExtend dual source HDMI video over CAT6 to distances up to 295 ft. (90m… ST222HDBT

$590.89

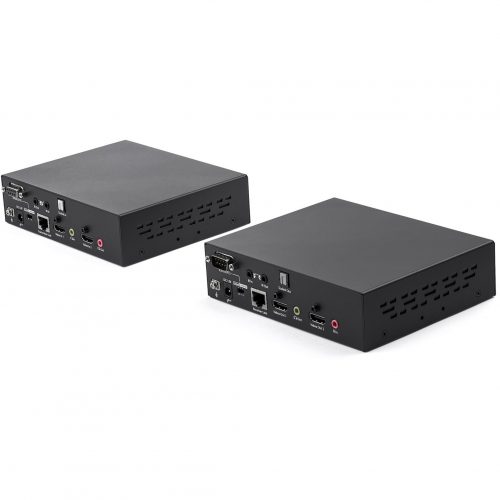

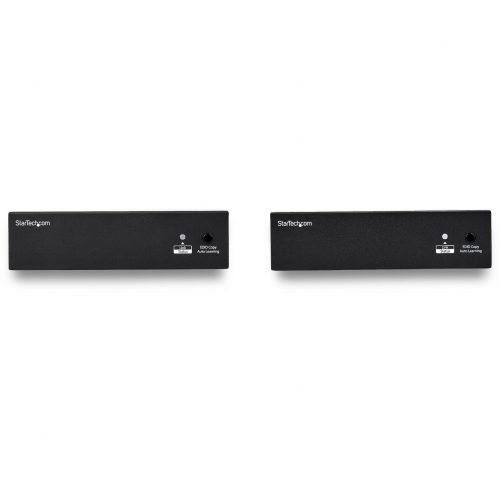

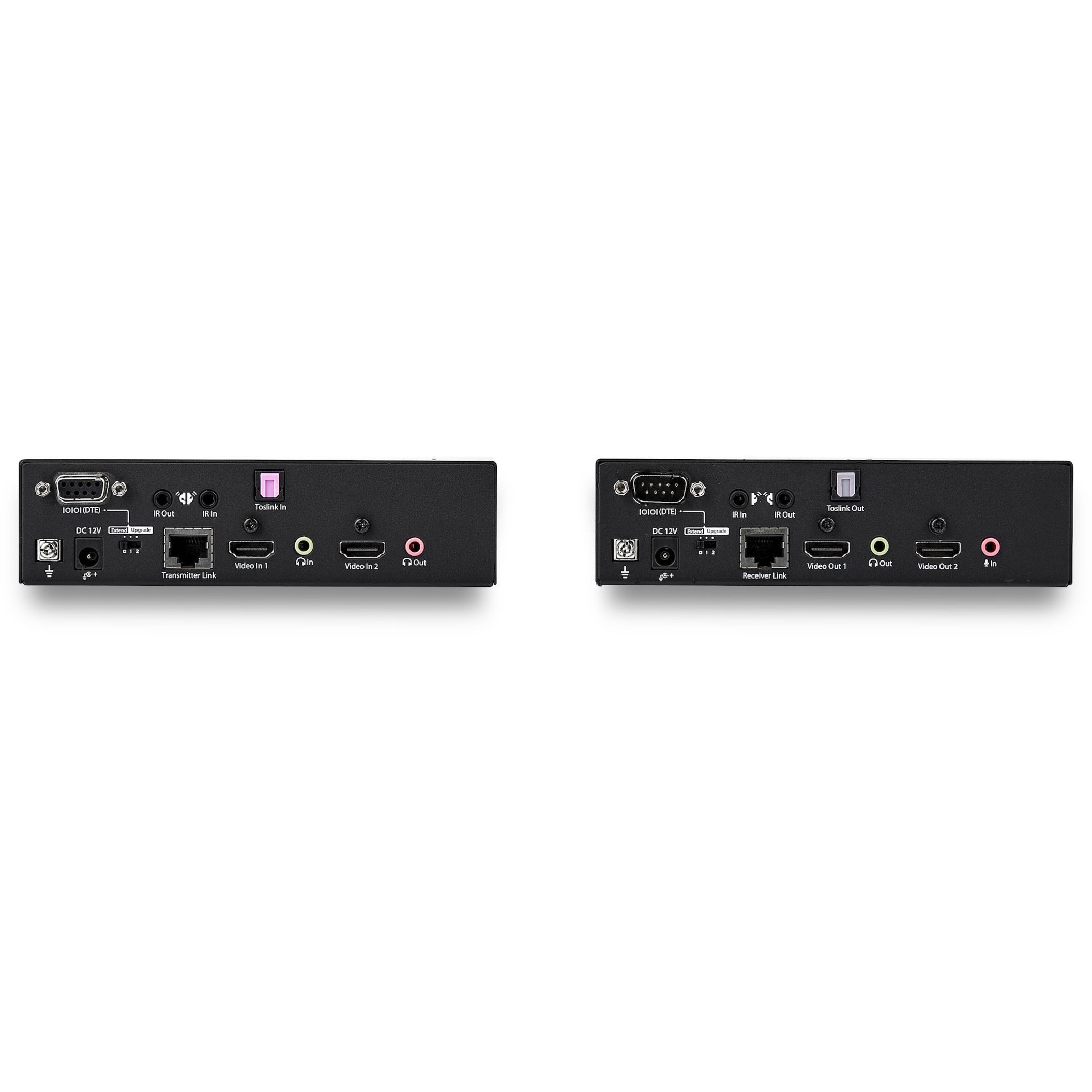

StarTech.com Dual HDMI over CAT6 Extender – 1080p over CAT6 or CAT5e
Extend two separate HDMI sources to their own HDMI 1080p displays with one CAT6 cable.
Support for bi-directional IR signals, for remote control from either end of your extension.
Extend two 1080p source signals up to 90 m (295 ft.).
Includes mounting brackets.
Extend two separate HDMI sources to their own HDMI 1080p displays with one CAT6 cable.
Support for bi-directional IR signals, for remote control from either end of your extension.
Extend two 1080p source signals up to 90 m (295 ft.).
Includes mounting brackets.

SKU: ST222HDBT Categories: , Brand: Startech

Description

StarTech.com Dual HDMI over CAT6 Extender – 1080p over CAT6 or CAT5e

This HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.

Dual source support

Reduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only onecable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it’s place.

Bi-directional control

With bi-directional IR control, you can control your devices from either end of theextension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. Theextender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.

Simplified setup

The simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.

The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetimetechnical support.

Additional information

Weight 7.56 lbs
Dimensions 478.00 × 230.00 × 74.00 in
Package Contents 1 x HDMI Transmitter, 1 x HDMI Receiver, 2 x Universal Power Adapters (NA/JP, EU, UK, ANZ), 2 x Sets of Mounting Brackets, 1 x IR Blaster, 1 x IR Receiver, 1 x CAT5 Cable, 8 x Rubber Feet, 1 x User Manual,
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number ST222HDBT
Manufacturer Website Address http://www.startech.com
Limited Warranty 2 Year
Connectivity Technology Wired
Form Factor Desktop
Manufacturer StarTech.com
Product Model ST222HDBT
Product Name Dual HDMI over CAT6 Extender - 1080p
Brand Name StarTech.com
Country of Origin Taiwan
Graphics Modes Full HD
Environmentally Friendly Yes
Environmental Certification WEEE, RoHS, REACH
Maximum Video Resolution 1920 x 1080
Twisted Pair Cable Standard Category 6
Maximum Operating Distance 295.28 ft
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of HDMI Inputs 2
Number of HDMI Outputs 2
HDMI In Yes
HDMI Out Yes
Media Type Supported Twisted Pair
Number of Output Devices Supported 1
Number of Input Devices Supported 1
Transmitter Height 1.70"
Transmitter Width 5.10"
Transmitter Depth 6.20"
Receiver Height 1.70"
Receiver Width 5.10"
Receiver Depth 6.20"
Transmitter Weight (Approximate) 5.29 lb
Receiver Weight (Approximate) 5.29 lb
TAA Compliant Yes
Serial Port Yes
GTIN 0065030878470
UPC 065030878470
EAN 0065030878470
UNSPSC 45111815
