Description: 2PT HDMI OVER IP EXTD KIT W/ RS-232 SER
Tripp Lite 2-Port HDMI Over IP Extender Kit w/ RS-232 Serial & IR Control TAA – Video/audio/infrared/serial extender – up to 656 ft – TAA Compliant

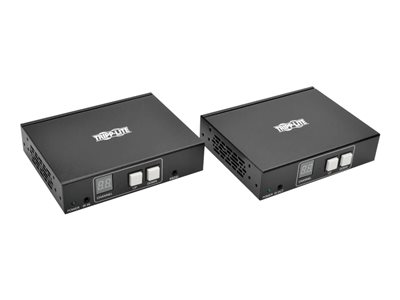

The B160-201-HSI 2-Port
HDMI Audio/Video with RS-232 Serial and IR Control over IP Extender Kit extends
and distributes HDMI audio/video, RS-232 serial and IR (infrared) remote
signals through a dedicated Ethernet network switch* located up to 328 feet
(100 m) from the transmitter. With an additional 328 feet between the switch
and the receiver, the maximum distance from source to display is 656 feet (200
m). You can also directly
connect the transmitter and receiver up to 328 feet apart with Cat5/Cat6
The B160-201-HSI is designed for managed network
switches with IGMP, which allow login and remote management via switch
interface. You can connect up to 64 transmitters and 255 receivers in a single
managed switch installation.**
The B160-201-HSI supports
video resolutions up to 1920 x 1080 (1080p) at 60 Hz.
In a point-to-multipoint switch installation, you can send the HDMI video source to any analog or digital display, including VGA
and DisplayPort . Dual HDMI ports on the receiver allow the connection of two
displays. It extends IR
control signals that control a source, such as a Blu-ray player, from a remote
display, as well as RS-232 signals at serial baud rates up to 57600 Bps.
*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
Key Selling Points
Converts source video to IP-based signal transmitted to and distributed through network switch
Transmitter and receiver each extend signal up to 328 ft. (100 m) from switch for maximum distance of 656 ft. (200 m)
Transmitter and receiver can also connect directly without switch up to 328 ft. apart

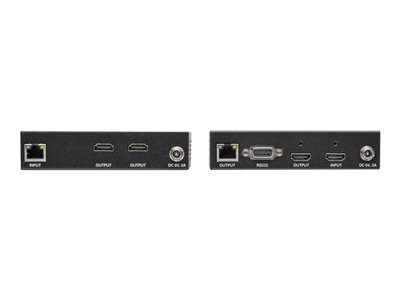

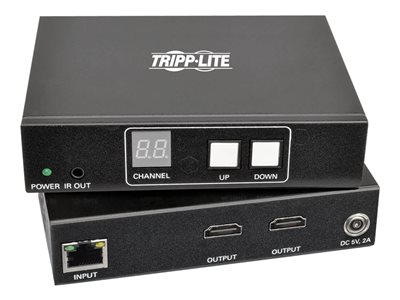

Dual HDMI outputs on receiver for connecting 2 displays
Allows login and remote management via switch interface
Connect up to 64 transmitters and 255 receivers in single managed switch installation
HDMI output on transmitter for connecting a local display
