Description
Description: 8PT 4K HDMI SPLITTER ULTRA-HD 3840X2160
Tripp Lite 8-Port 4K HDMI Video Splitter Ultra-HD 4K x 2K Video & Audio 3840×2160 @ 24/30Hz – Video/audio splitter – 8 x HDMI – desktop
Tripp Lite’s B118-008-UHD HDMI Splitter allows the 4K2K digital signal from a Blu-Ray player or other HDMI device to be displayed on up to eight HDMI displays, or, connect a DVI-D Single Link display using an HDMI to DVI adapter, such as Tripp Lite’s P566-Series cables. Installation is quick and simple, with no software or drivers to install. Locate your HDMI source up to 16.4 ft. (5 m.) from the splitter, and the splitter up to 16 ft. (5 m.) from a display, for a max distance of 23 ft. (7 m.) between splitter and display. Supports Full 3D and video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz. High Speed HDMI and 3D compliant, with support for 36-bit Deep Color (12-bits per channel). Supports DTS-HD, Dolby True HD, Dolby Digital Plus, and LPCM 7.1 Channel Surround Sound audio. HDCP and EDID compliant.
Note: The B118-008-UHD is an HDMI Splitter, it sends the same image to all connected displays. If you would like to extend an image over multiple displays you will need an MST hub, like the B156-002-HD-V2.

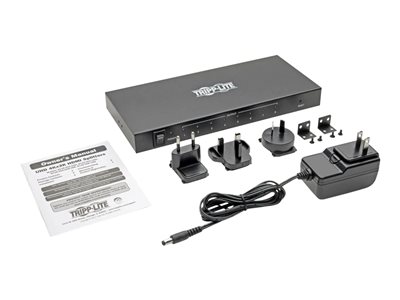

Whats in the Box
- UHD 4Kx2K HDMI 8-port Splitter
- External Power Supply (Input: 100-240V, 50/60Hz, 0.6A
- Output: 5V, 3A, 5 ft.)
- International plug adapters (North America, Europe, UK and Australia)
- Owner’s Manual
Key Selling Points
Simultaneously transmit the video and audio from an HDMI source to multiple HDMI monitors
Supports Full 3D and video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
Supports 36-bit Deep Color (12-bits per channel)
Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound audio
Supports video amplifier bandwidth of 340MHz / 3.4Gbps per channel (10.2Gbps total)
HDCP and EDID compatible
Plug and play; no software or drivers required
Supports Lip Sync pass-through
Supports xvYCC and x.vColor
Supports the use of DVI sources and displays with the use of an optional DVI to HDMI adapter (sold separately)
Supports a maximum distance of 16.4 ft. (5 m) from source to splitter, and 23 ft. (7 m) from splitter to display, for a total of up to 39.4 ft. (12 m)
Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 512.
Power Supply includes international plug adapters (North America, Europe, UK and Australia)
