Description
Description: FO UTP GIGABIT MEDIA CONVRT

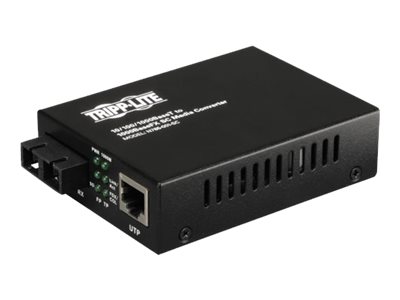

Tripp Lite Fiber Optic 10/100/1000 to 1000BaseLX SC Gigabit Multimode Media Converter 2km 1310nm – Fiber media converter – GigE – 10Base-T, 1000Base-FX, 100Base-TX, 1000Base-T – RJ-45 / SC – up to 1.2 miles – 1310 nm
Tripp Lite’s N785-001-SC 10/100/1000 Gigabit Multimode Media Converter is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. With advanced features such as selectable half or full duplex operation on the fiber port, 1310 nm wavelength, automatic MDI/MDI-X configuration and link fault pass-through, the N785-001-SC supplies superior signal quality and gives you ultimate network control. The N785-001-SC is compatible with both 62.5/125 and 50/125 multimode fiber cable.

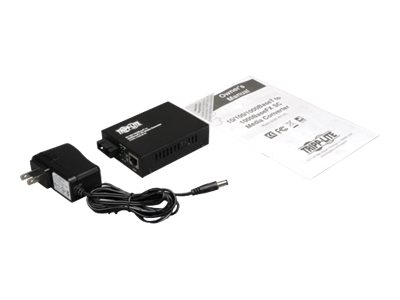

Whats in the Box
- N785-001-SC 10/100/1000 to 1000BaseLX Gigabit Multimode Media Converter
- External Power Supply with NEMA 1-15P Plug ( Input: 110-265V, 50/60Hz, 0.2A
- Output: 5V, 2A )
- Owners Manual
Key Selling Points
Connect 10BaseT/100BaseT /1,000BaseT UTP Ethernet to 1000BaseFX Fiber Ethernet
Auto MDI/MDI-X
UTP port auto-senses network speed
Fiber lengths up to 2Km
6 LED Function lights
Uses 62.5/125 or 50/125 Multimode cable
3.75″L x 2.75″W x 1″H
Wavelength: 1310nm
RoHS Compliant
