Description
Description: HDMI OVER CAT5 ACTIVE EXT REM UNIT TAA G
Tripp Lite HDMI Over Cat5/Cat6 Active Video Extender Remote 1080p 60Hz 200′ – Video/audio extender – over CAT 5/6 – up to 200 ft

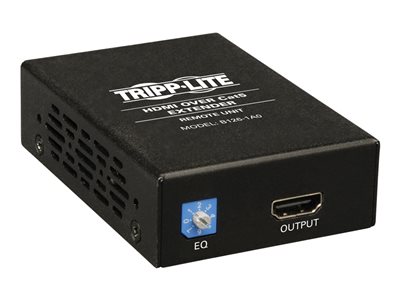

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite’s N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Key Selling Points
For use with B126-002 and B126-004 transmitter units.
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N202-Series, is required to achieve maximum distance and resolution.
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
HDCP and 3D compatible.
Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Supports 24-bit True Color (8-bits per channel).
Can further expand the range and number of monitors by adding B126-110 repeaters.
Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft..
Features a built-in Equalization control for adjustment of the video image.
Compatible with all operating systems.
Plug and play; No drivers required.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
