Description: PDU BASIC 120V 15A 5-15R 5-15P 1U RM

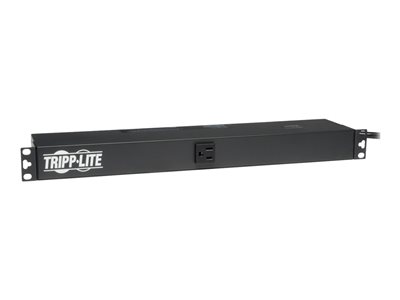

Tripp Lite PDU Basic 120V 1.8kW 15A 5-15R 13 Outlet 5-15P Horizontal 1URM – Horizontal rackmount – power distribution unit (rack-mountable) – 15 A – AC 120 V – 1.8 kW – input: NEMA 5-15 – output connectors: 13 (NEMA 5-15) – 1U – 19″ – black
The PDU1215 1.8kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1215 features a single breakered load bank with 13 NEMA 5-15R outlets—12 in the rear and one in front. The NEMA 5-15P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1215 for vertical 0U rack-mounting.
Whats in the Box
- PDU1215 1.8kW Single-Phase 120V Basic PDU
- Mounting hardware
- Owner’s manual
Key Selling Points
15A single phase 120V Basic Power Distribution Unit / PDU
Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
1U horizontal rackmount format installs in one rack space

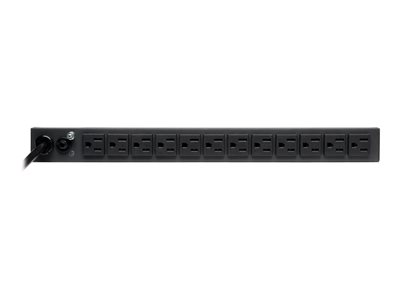

13 NEMA 5-15R outlets (1 front facing / 12 rear)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
