Description: PDU MONITORED 208V / 240V 30A C13 C19 2U

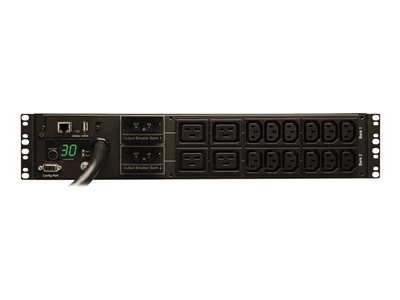

Tripp Lite PDU Monitored 208V/240V 30A 12 C13; 4 C19 L6-30P Horizontal 2URM – Horizontal rackmount – power distribution unit (rack-mountable) – 30 A – AC 208/240 V – 5.8 kW – Ethernet 10/100 – input: NEMA L6-30 – output connectors: 16 – 2U
Offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Key Selling Points
30A single phase 208/240V Monitored Power Distribution Unit / PDU (agency derated to 24A continuous)

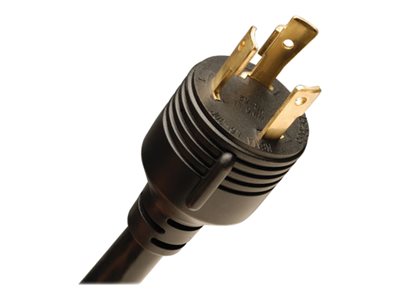

Attached NEMA L6-30P input with 10ft / 3m line cord
2U horizontal rackmount format supports installation in 2 or 4 post equipment racks
16 outlets (12 C13, 4 C19)
Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)
Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
DHCP/Manual configuration support
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
Fully compatible with FREE PowerAlert Network Management System / NMS Software
Included cord retention brackets keep vital network equipment plugged in and continuously powered
