Description
Description: 30M QSFP28 TO QSFP28 ACTIV OP CBL 100GBE

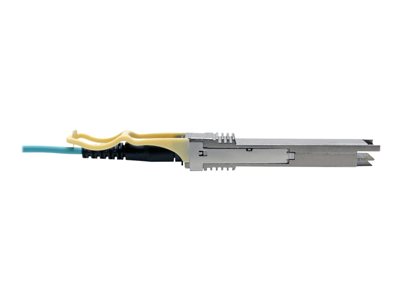

Tripp Lite QSFP28 to QSFP28 Active Optical Cable – 100GbE, AOC, M/M, Aqua, 30 m (98.4 ft.) – 100GBase-AOC direct attach cable – QSFP28 to QSFP28 – 30 m – fiber optic – 50 / 125 micron – OM3 – plenum, active – aqua
This 30-meter (98.4-foot) QSFP28 Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 25 Gbps SFP channels into one affordable high-density package. Each male connector contains four independent 850 nm VCSEL-based transmitters and four independent receivers using PIN photo detectors inside. Each lane supports data transfer speeds up to 25 Gbps. Together, the N28H-30M-AQ provides an aggregated speed up to 100 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment.
The hot-pluggable QSFP28 connectors include ergonomic push/pull tabs, which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.
This QSFP28 active optical cable integrates a 100 Gbps Ethernet-optimized 38-position “board as connector” design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The cable is suitable for high-speed, short-reach dense data connections, such as 100GBASE-SR4 Ethernet, PCIe, Fibre Channel and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling, walls and ducts.
This cable is fully compliant with the latest QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bm standards and industry-standard SFF-8636 specifications. It is compatible with all QSFP and QSFP+ ports.
Key Selling Points
Combines 4 full-duplex 25 Gbps SFP lanes for an aggregated 100 Gbps rate
Ideal for switches, servers, routers and other high-end networking equipment
Multi-platform support for 100 Gb Ethernet, InfiniBand, Fiber Channel and PCIe
Ergonomic push/pull tabs allow easy one-handed connection and disconnection
