Description: 16PT UNMGD GETH SWCH 10/100/1000 MBPS DI
Tripp Lite Unmanaged Industrial Gigabit Ethernet Switch 16-Port – 10/100/1000 Mbps, DIN Mount – Switch – unmanaged – 16 x 10/100/1000 – DIN rail mountable – DC power – TAA Compliant
The NGI-U16 adds Gigabit Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

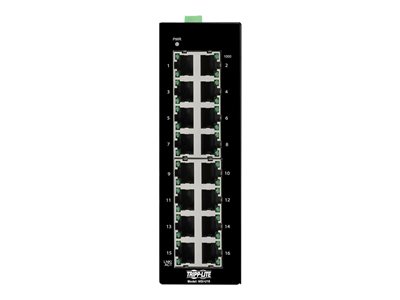

Because it is an unmanaged switch, the NGI-U16 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

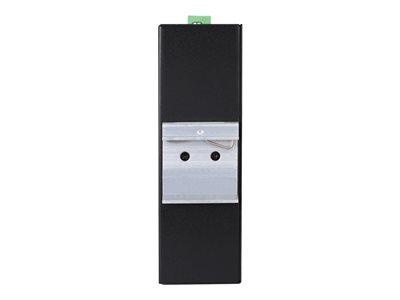

The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12 – 48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.
Whats in the Box
- Tripp Lite 16-Port Unmanaged Industrial Gigabit Ethernet Switch – 10/100/1000 Mbps, DIN Mount
- External power adapter, DIN-rail clip
