Vertiv Geist MN02E4W1-42IZ68-3TL21A0A10-S 42-Outlets PDUMonitoredNEMA L21-30P36 x IEC 60320 C13, 6 x IEC 60320 C19120 V AC, 230 V ACNetwo… I20076

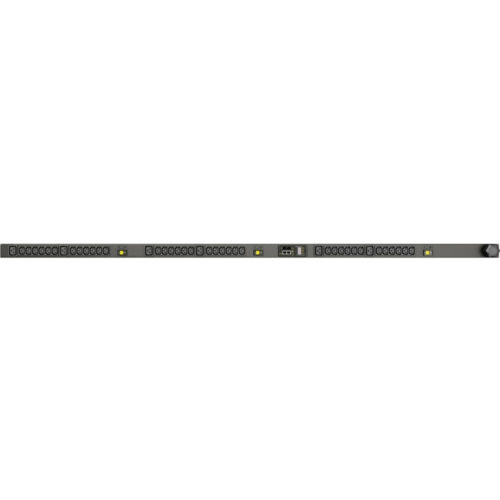

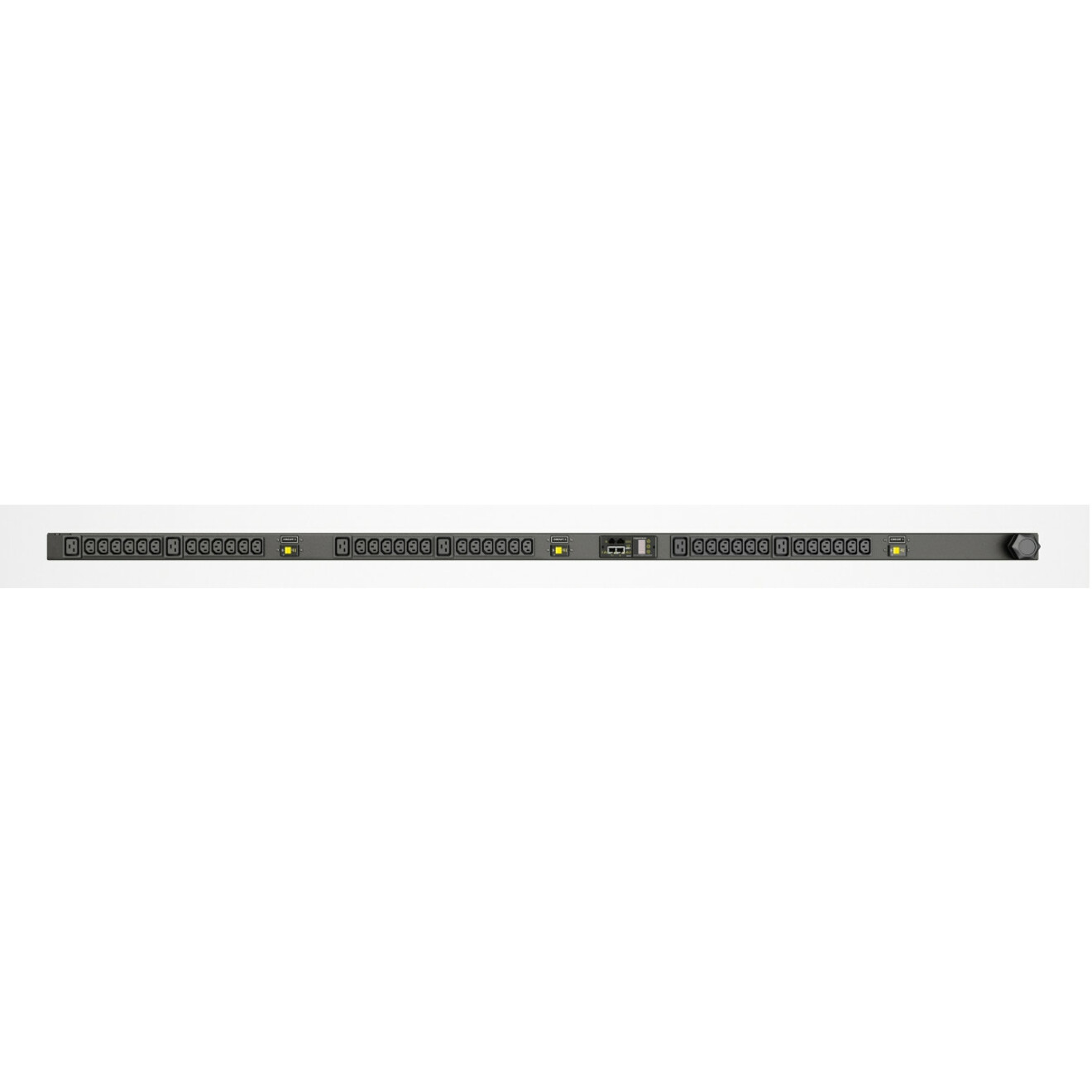

Geist MN02E4W1-42IZ68-3TL21A0A10-S 42-Outlets PDU
A device fitted with multiple outputs for the distribution of electric power.
Before critical input source become overloaded always be warned with monitored PDUs.

SKU: I20076 Categories: , Brand: Vertiv


Geist MN02E4W1-42IZ68-3TL21A0A10-S 42-Outlets PDU

The I20076 provides real-time power metrics to help prevent overloads and safely optimize load levels. The unit offers local and IP-based monitoring with quick access to real-time power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, I20076 optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module; all without causing any interruption.

Additional information

Weight 22 lbs
Dimensions 2.00 × 2.00 × 7.00 in
Package Contents MN02E4W1-42IZ68-3TL21A0A10-S 42-Outlets PDU, Vertical Mounting Bracket Kit,
Product Type PDU
Input Voltage 120 V AC, 230 V AC
Manufacturer Part Number I20076
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 30 A
Length 72"
Management HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1/v2c/v3, JSON, JSON API, RSTP,
Manufacturer Vertiv
Product Model MN02E4W1-42IZ68-3TL21A0A10-S
Product Name MN02E4W1-42IZ68-3TL21A0A10-S 42-Outlets PDU
Mount Type Rack-mountable
Protection Type Overcurrent Protection, Overload Protection
Rack Height 0U
Brand Name Geist
Plug/Connector Type NEMA L21-30P
Country of Origin United States
Phase Three Phase
Receptacle Type IEC 60320 C13, IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 8600 W
Receptacle Detail 36 x IEC 60320 C13, 6 x IEC 60320 C19
Plug/Connector Detail 1 x NEMA L21-30P
UNSPSC 39121017
