Vertiv Geist MN02X4W1-30PN68-3TL15A0A10-S-A 30-Outlet PDUMonitoredNEMA L15-30P24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19230 V AC -… I20286L

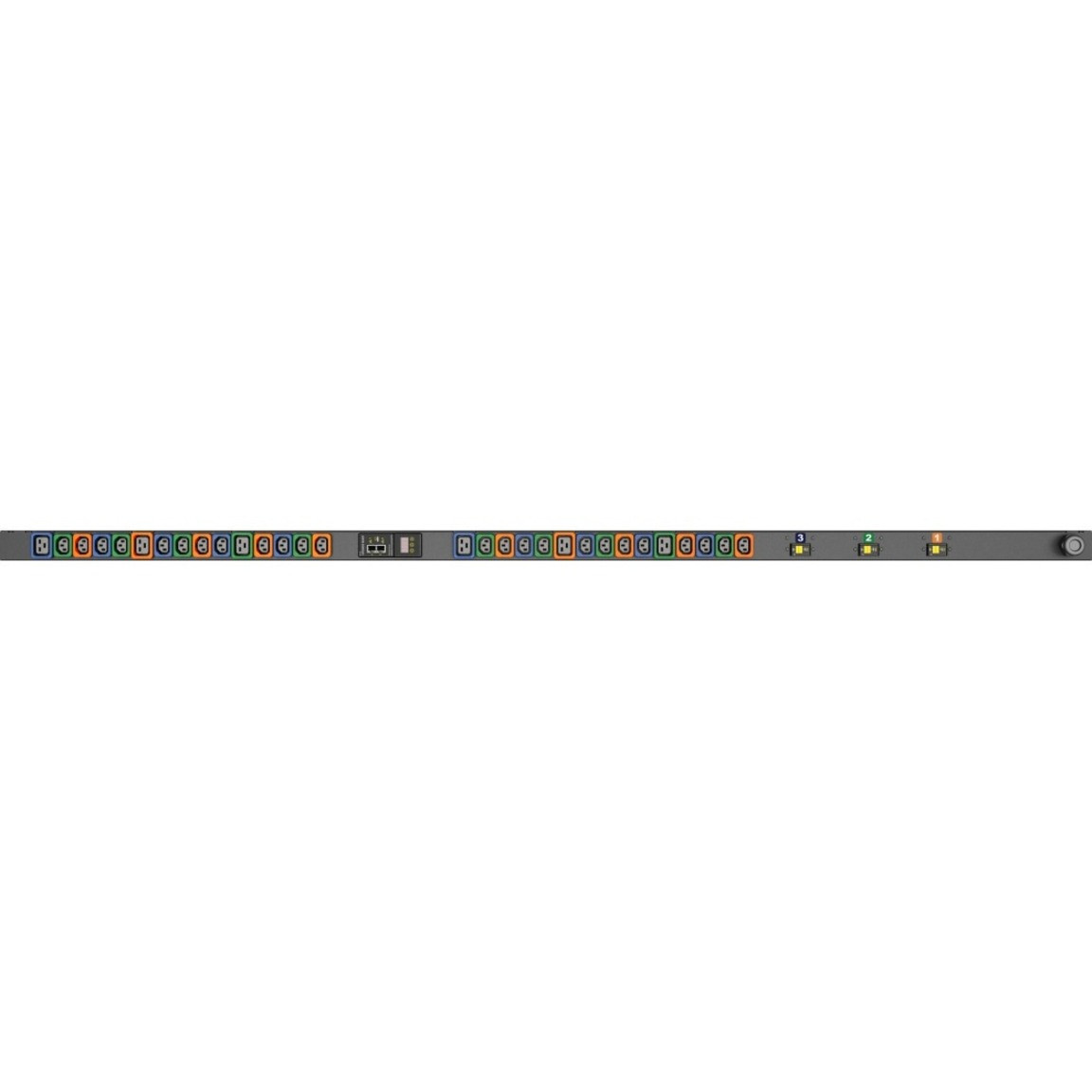

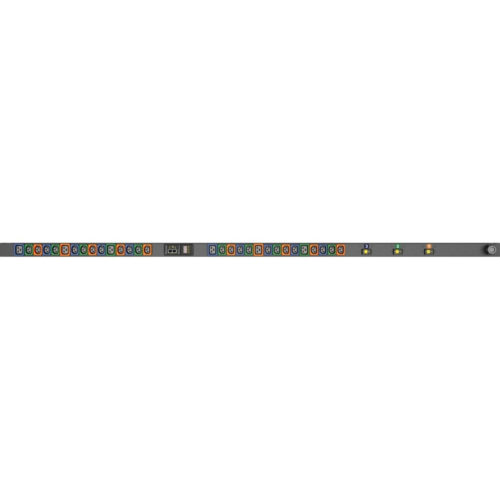

Geist MN02X4W1-30PN68-3TL15A0A10-S-A 30-Outlet PDU

SKU: I20286L Categories: , Brand: Vertiv


Geist MN02X4W1-30PN68-3TL15A0A10-S-A 30-Outlet PDU

The I20286L provides real-time power metrics to help prevent overloads and safely optimize load levels. The unit offers local and IP-based monitoring, with quick access to real-time power metrics. Using Visible Light Communication (VLC) technology, I20286L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module; all without causing any interruption.

Additional information

Weight 22 lbs
Dimensions 2.00 × 2.00 × 7.00 in
Package Contents MN02X4W1-30PN68-3TL15A0A10-S-A 30-Outlet PDU, Vertical Mounting Bracket Kit,
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number I20286L
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 30 A
Length 72"
Management <b></b> HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1, SNMP v2c, SNMP v3, JSON, JSON API, RSTP,
Manufacturer Vertiv
Product Model MN02X4W1-30PN68-3TL15A0A10-S-A
Product Name MN02X4W1-30PN68-3TL15A0A10-S-A 30-Outlet PDU
Mount Type Rack-mountable
Protection Type Overcurrent Protection, Double Pole, Overload Protection
Brand Name Geist
Plug/Connector Type NEMA L15-30P
Country of Origin United States
Receptacle Type U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 8600 W
Receptacle Detail 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19
Plug/Connector Detail 1 x NEMA L15-30P
UNSPSC 39121017
