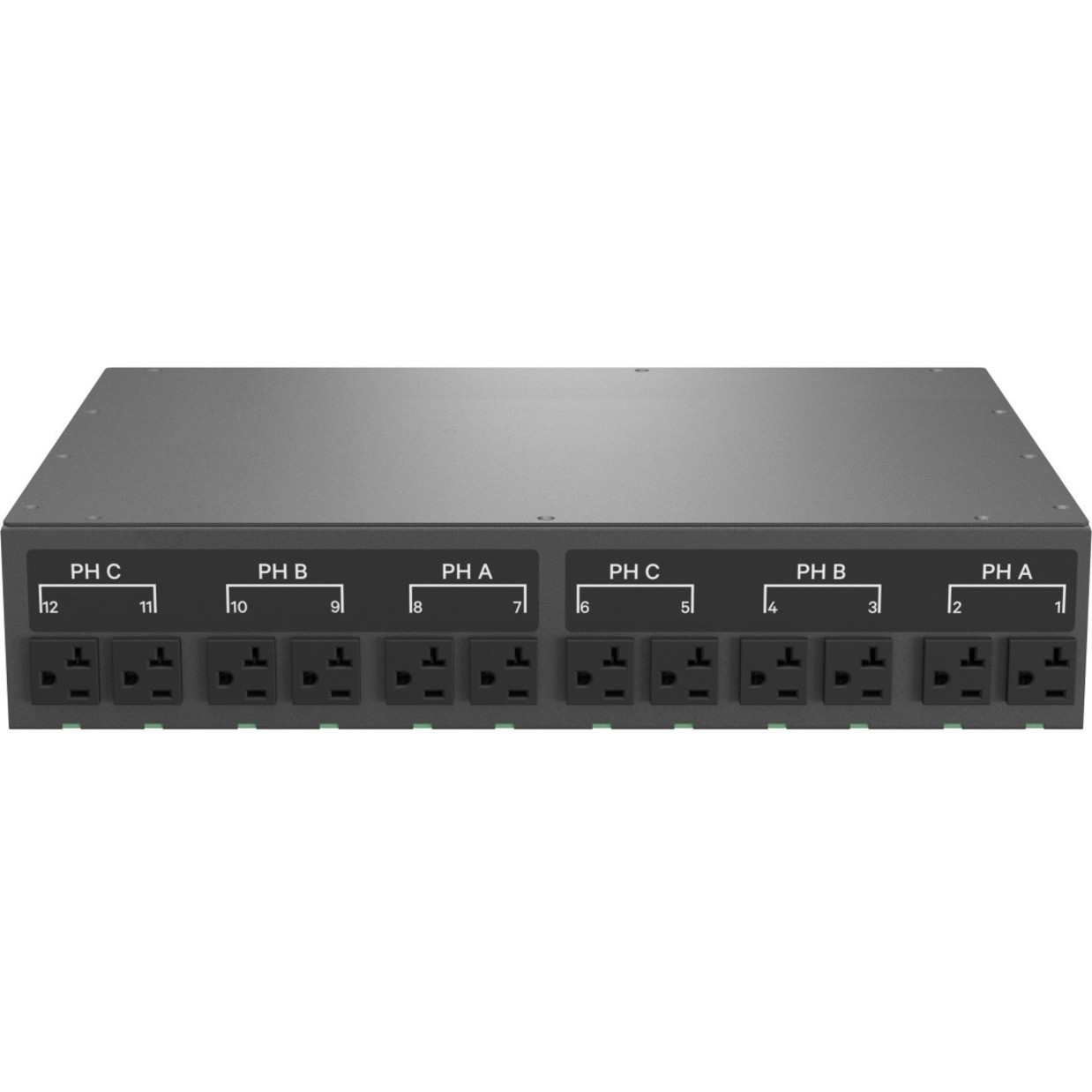

Geist MNR3EDR1-12S203-3TL21A0E10-S 12-Outlets PDU
PDU provides power control as remote controlled relay & load monitoring.
Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs.

SKU: NR30067 Categories: , Brand: Vertiv


Geist MNR3EDR1-12S203-3TL21A0E10-S 12-Outlets PDU

The NR30067 provides IP-based monitoring with quick access to real-time outlet-level power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, NR30067 optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module.

Additional information

Weight 32 lbs
Dimensions 12.00 × 17.00 × 3.39 in
Package Contents MNR3EDR1-12S203-3TL21A0E10-S 12-Outlets PDU, 19in Recess Mount,
Product Type PDU
Input Voltage 120 V AC, 230 V AC
Manufacturer Part Number NR30067
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 120 V AC
Input Current 30 A
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+,
Manufacturer Vertiv
Product Model MNR3EDR1-12S203-3TL21A0E10-S
Product Name MNR3EDR1-12S203-3TL21A0E10-S 12-Outlets PDU
Mount Type Rack-mountable
Protection Type Overcurrent Protection, Single Pole
Rack Height 2U
Brand Name Geist
Plug/Connector Type NEMA L21-30P
Country of Origin United States
Phase Three Phase
Receptacle Type NEMA 5-20R
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Horizontal
Power Rating (Watt) 8600 W
Receptacle Detail 12 x NEMA 5-20R
Plug/Connector Detail 1 x NEMA L21-30P
UNSPSC 39121017
