Vertiv Geist rPDU JRN102-102D20TL5 10-Outlets PDUBasicNEMA L5-20P10 x NEMA 5-20R120 V ACHorizontalRack-mountable, Cabinet-mountable,… 11269VH

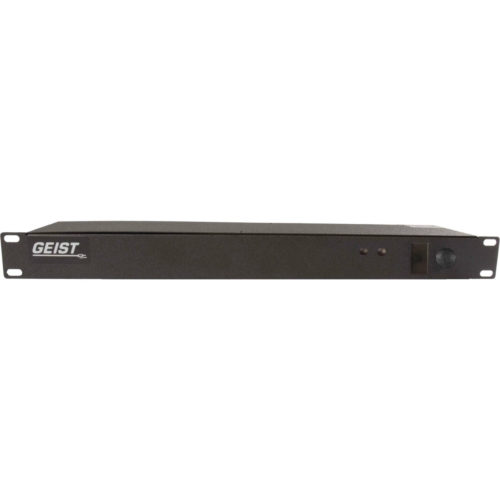

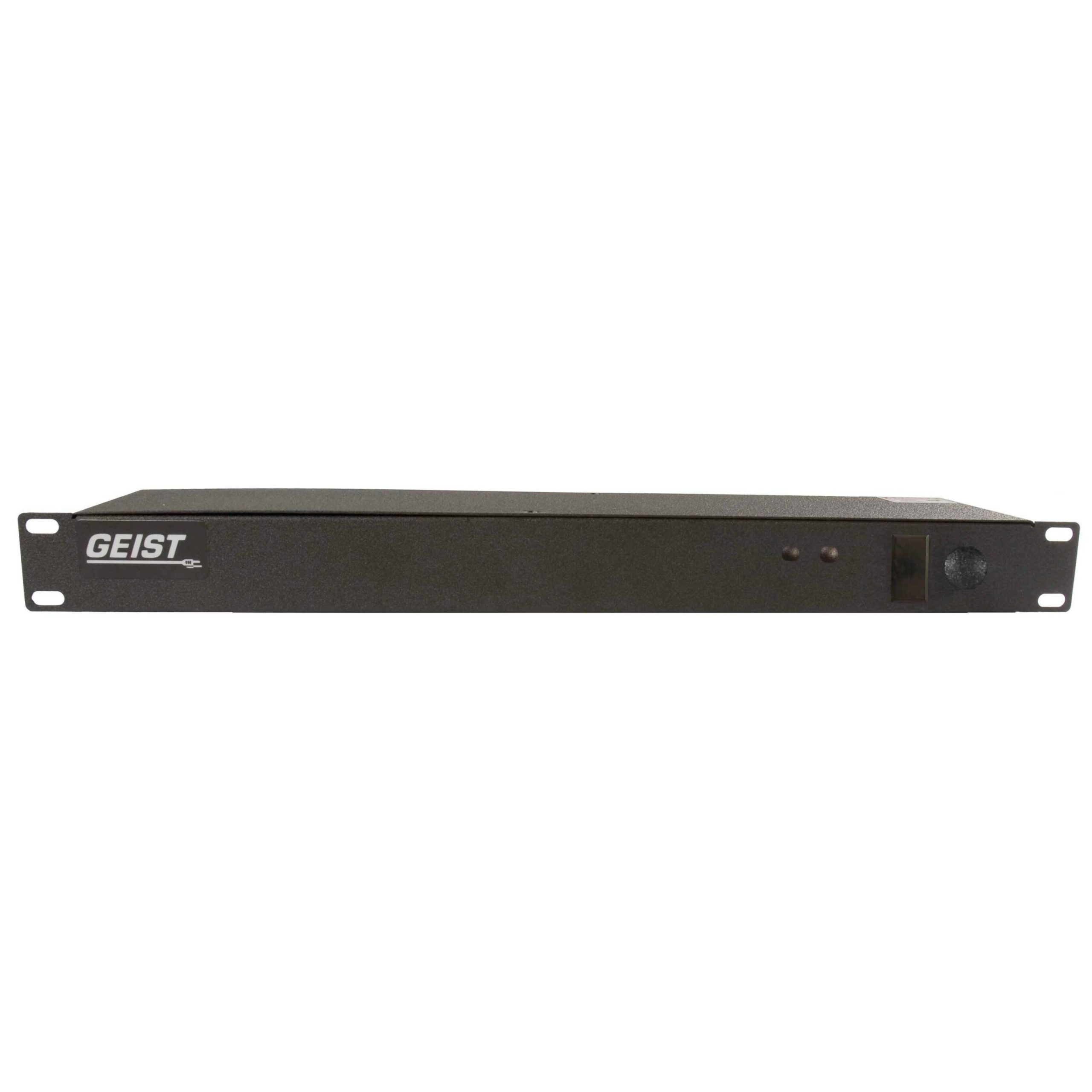

Geist rPDU JRN102-102D20TL5 10-Outlets PDU
A device fitted with multiple outputs for the distribution of electric power.
Basic PDU is the space-saving and cost-effective way to deliver power.

SKU: 11269VH Categories: , Brand: Vertiv


Geist rPDU JRN102-102D20TL5 10-Outlets PDU

Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.


  • Reliable rack power distribution.
  • Every unit is 100% tested for reliability and functionality.
  • Simple and convenient configuration options for cord lengths and chassis colors.
  • Standard three-year warranty, upgraded to a five-year warranty with product registration.

Additional information

Weight 8.4 lbs
Dimensions 3.75 × 17.00 × 1.72 in
Product Type PDU
Input Voltage 120 V AC
Manufacturer Part Number 11269VH
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 120 V AC
Input Current 20 A
Manufacturer Vertiv
Product Model JRN102-102D20TL5
Product Name rPDU JRN102-102D20TL5 10-Outlets PDU
Mount Type Rack-mountable, Cabinet-mountable, Flush-mountable
Product Series rPDU
Brand Name Geist
Plug/Connector Type NEMA L5-20P
Input Voltage Range 100 V AC - 120 V AC
Country of Origin United States
Receptacle Type NEMA 5-20R
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
PDU Type Basic
Mounting Orientation Horizontal
Power Rating (Watt) 1900 W
Receptacle Detail 10 x NEMA 5-20R
Plug/Connector Detail 1 x NEMA L5-20P
UNSPSC 39121017
