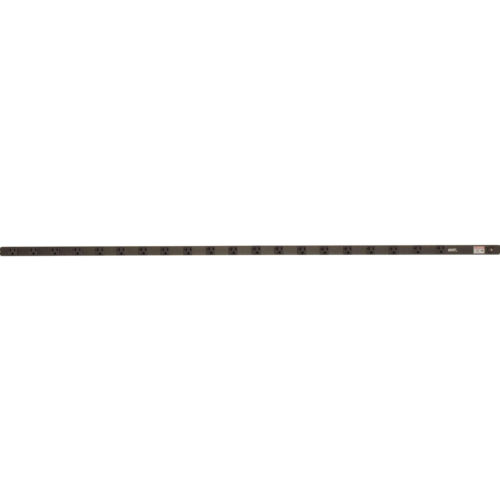

Geist rPDU MJBN202-102R20TL5 20-Outlets PDU
With PDUs decisions for load balancing and minimizing extra cost can be managed.
Basic PDU is the space-saving and cost-effective way to deliver power.

SKU: 11524VH Categories: , Brand: Vertiv


Geist rPDU MJBN202-102R20TL5 20-Outlets PDU

Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.


  • Reliable rack power distribution.
  • Every unit is 100% tested for reliability and functionality.
  • Simple and convenient configuration options for cord lengths and chassis colors.
  • Standard three-year warranty, upgraded to a five-year warranty with product registration.

Additional information

Weight 11.2 lbs
Dimensions 1.10 × 1.25 × 3.00 in
Package Contents rPDU MJBN202-102R20TL5 20-Outlets PDU, Vertical Mounting Bracket Kit, Vertical/Panel Mount Brackets (MJ),
Product Type PDU
Input Voltage 120 V AC
Manufacturer Part Number 11524VH
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 120 V AC
Input Current 20 A
Length 66.3"
Manufacturer Vertiv
Product Model MJBN202-102R20TL5
Product Name rPDU MJBN202-102R20TL5 20-Outlets PDU
Mount Type Rack-mountable, Cabinet-mountable
Product Series rPDU
Brand Name Geist
Plug/Connector Type NEMA L5-20P
Input Voltage Range 100 V AC - 120 V AC
Country of Origin United States
Receptacle Type NEMA 5-20R
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
PDU Type Basic
Mounting Orientation Vertical
Power Rating (Watt) 1900 W
Receptacle Detail 20 x NEMA 5-20R
Plug/Connector Detail 1 x NEMA L5-20P
UNSPSC 39121017
