Vertiv Geist Switched Rack PDU1U Rack| 16-20A| C13/C19| C20| Horizontal PDU|Outlet Level Monitoring and Management| UL-Listed and TAA-Comp… VP52101


Vertiv Geist Switched Rack PDU – 1U Rack| 16-20A| C13/C19| C20| Horizontal PDU|
PDU is reliable for power protection and management solutions.
Remotely control individual outlets for rebooting of locked equipment with switched PDUs.
1U rack PDU with horizontal form factor, ideal for short racks and small network closets.
16A/20A| 120V/208V/230V| (12) Combination C13/C19 outlets| C20 inlet| 1.4kW/3.3kW/3.6kW.
Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment.
Analyze data and status through a Web browser or serial connection to ensure efficiency.
Three-year warranty is extendable to five years if unit is registered within 120 days of purchase.

SKU: VP52101 Categories: , Brand: Vertiv


Vertiv Geist Switched Rack PDU – 1U Rack| 16-20A| C13/C19| C20| Horizontal PDU|

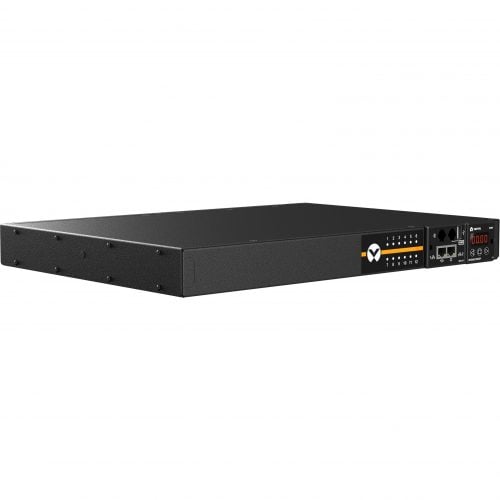

The Vertiv Geist Switched Rack PDU VP52101 is a 16A / 20A, 120V / 208V / 230V, 1U horizontal rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP52101 features 12 Combination Outlet C13 / C19 receptacles and a C20 inlet providing 1.9kW, 3.3kW, or 3.6kW in power capacity determined by the input power configuration. This Switched rPDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. It also supports Visible Light Communication (VLC) technology so you can view complete power usage data from a mobile device with the Vertiv rPDU Scanner application. The IMD includes ports for serial communication and environmental monitoring, and dual ethernet ports. Simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. All Vertiv Geist Switched PDUs are UL-Listed, meeting an important requirement for data centers, and each unit undergoes individual testing for functionality to ensure your network is powered by a reliable power distribution unit.

More from the Manufacturer

Additional information

Weight 14 lbs
Dimensions 12.00 × 1.72 × 17.00 in
