Meraki MX Sizing Guide


This technical document provides guidelines for choosing the right Cisco Meraki security appliance based on real-world deployments, industry standard benchmarks and in-depth feature descriptions.

Overview

Cisco Meraki MX Security Appliances are Unified Threat Management (UTM) products.
UTM products offer multiple security features in a simple-to-deploy, consolidated form factor. Given the number of security features that can be deployed in any given MX, device performance will vary depending on the use-case. Choosing the right MX depends on the use-case and the deployment characteristics.

This technical guide is designed to help answer the following questions:

  • How do I decide which MX model I need?
  • Which features should I turn on?
  • How do MX models compare against the competition?

Choosing the right hardware

Cisco Meraki MX products come in 6 models. The chart below outlines MX hardware properties for each model:

  MX64 MX64W MX65 MX65W MX84 MX100 MX400 MX600
Dual Wan Links
3G / 4G Failover
Built-In Wireless
Built-In PoE+
Hard drive (TB)         1 1 1 4
Fiber Connectivity         SFP SFP SFP, SFP+ SFP, SFP+
Dual Power Supply
Form Factor Desktop Desktop Desktop Desktop 1U 1U 1U 2U

Network performance benchmarks

Industry standard benchmarks are designed to help you compare MX security appliances to firewalls from other vendors. These tests assume perfect network conditions with ideal traffic patterns. When measuring maximum throughput for a certain feature, all other features are disabled. Actual results in production networks will vary.

  MX64(W) MX65(W) MX84 MX100 MX400 MX600
Max throughput with all security features enabled 200 Mbps 200 Mbps 300 Mbps 650 Mbps 1 Gbps 1 Gbps
Recommended max clients 50 50 200 500 2,000 10,000
Max Stateful (L3) firewall throughput in passthrough mode 250 Mbps 250 Mbps 500 Mbps 750 Mbps 1 Gbps 1 Gbps
Max Stateful (L3) firewall throughput in NAT mode 200 Mbps 200 Mbps 500 Mbps 750 Mbps 1 Gbps 1 Gbps
Max connections 100,000 100,000 250,000 500,000 1,000,000 2,000,000
Max connections per second 5,000 5,000 8,000 12,000 30,000 30,000
Max VPN throughput 100 Mbps 100 Mbps 250 Mbps 500 Mbps 1 Gbps 1 Gbps
Max VPN connections
(site-to-site or client VPN)
25 25 50 250 1,000 5,000
Max AV throughput 250 Mbps 250 Mbps 500 Mbps 750 Mbps 1 Gbps 1 Gbps
Max IDS throughput 200 Mbps 200 Mbpsp 300 Mbps 650 Mbpsp 1 Gbps 1 Gbps

Features, benefits and performance impact

UTM products come with a variety of security and networking features. Understanding the benefits and tradeoffs of these features is crucial to getting the maximum security benefit without unnecessary performance degradation.

  BENEFITS PERFORMANCE IMPACT RECOMMENDATIONS
Anti-virus / anti-phishing Provides flow based protection for Web traffic (port 80).s High Consider disabling for guest VLANs and using firewall rules to isolate those VLANs. Also consider disabling AV/anti-phishing if you run a full AV client on host devices.
IDS / IPS Provides alerts / prevention for suspicious network traffic High Consider not sending IDS/IPS syslog data over VPN in low-bandwidth networks.
VPN Secure, encrypted traffic between locations Medium Use split-tunnel VPN and deploy security services at the edge.
Web caching Accelerating access to Web content by caching locally Medium Ideal for repetitively accessing heavy multimedia content frequently for low bandwidth networks. Not recommended for high bandwidth networks. Please note that YouTube doesn’t support web caching.
Content filtering (top sites) Category based URL filtering using locally downloaded database Low Choose this option if your priority is speed over coverage.
Content filtering (full list) Category based URL filtering using the full database hosted at Brightcloud.com Medium Choose this option if your priority is 100% coverage and security. Web browsing will be slightly slower at the beginning but will improve as more and more URL categories are cached.
Web safe-search Turning Google / Bing safesearch option on Low Must be deployed in tandem with “disable encrypted search” option to be effective.
Blocking encrypted search Disabling Google / Bing searches via https (port 443), allowing Web safesearch enforcement Low Must be deployed in tandem with “Web safe-search” to be effective. Requires a DNS setting modification, otherwise will also break Google apps. Check Meraki knowledge base for further information.

Real-world Use Cases

In this section, we’ll cover the most common deployment use cases for the Meraki MX:

  • “Everything on”
  • K-12 school with limited bandwidth
  • K-12 school with high bandwidth
  • College / higher education institution
  • Retail branch
  • Head-end concentrator for retail branches

For each case, we’ll articulate which features should be turned on and measure the maximum throughput achieved with each MX model.

USE CASE: “Everything On”

Often, administrators would like to know what network throughput would look like if they turned on all of the features of their MX security appliance (worst-case scenario). Please refer to the “Features, benefits, and the performance impact” table in this document when fine-tuning the firewall configuration to achieve maximum security without unnecessary performance degradation

FIREWALL CONFIGURATION

Security features enabled:

  • NAT mode
  • Split-tunnel VPN
  • Content filtering
  • Traffic shaping
  • Anti-virus/anti-phishin
  • IPS
  • Web caching (not available on MX64/MX64W)

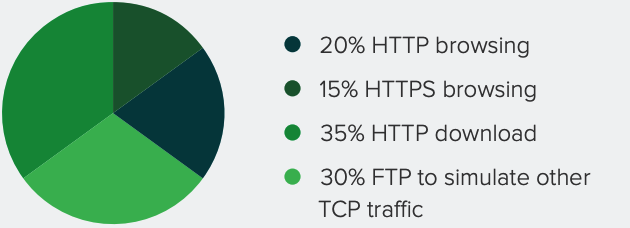

TEST TRAFFIC PATTERN

Traffic flowing through the MX security appliance for testing purposes was composed of the following protocols/applications.


THROUGHPUT CONFIGURATION

  MX64(W) MX65(W) MX84 MX100 MX400 MX600
Max throughput 200 Mbps 200 Mbps 320 Mbps 650 Mbps 1 Gbps 1 Gbps
Client count 50 50 200 500 2,000 10,000

USE CASE: K-12 school with limited bandwidth

Schools need strong URL filtering, application control and security features. In addition, schools with low bandwidth also need traffic shaping and web caching.

FIREWALL CONFIGURATION

Security features enabled:

  • NAT mode
  • Content filtering
  • Layer 7 Firewall
  • Traffic shaping
  • Anti-virus/anti-phishing
  • Google safe-search
  • YouTube for Schools
  • Web caching (not available on MX64/MX64W)




TEST TRAFFIC PATTERN

Traffic flowing through the MX security appliance for testing purposes was composed of the following protocols/applications. The traffic is heavily skewed towards HTTP/S (70%).


THROUGHPUT CONFIGURATION

  MX64(W) MX65(W) MX84 MX100 MX400 MX600
Max throughput 200 Mbps 200 Mbps 450 Mbps 750 Mbps 1 Gbps 1 Gbps
Client count 50 50 200 500 2,000 10,000

USE CASE: K-12 school with high bandwidth

Schools with high-bandwidth may not need Web caching or traffic shaping.

FIREWALL CONFIGURATION

Security features enabled:

  • NAT mode
  • Split-tunnel VPN
  • Content filtering
  • Layer 7 Firewall
  • Anti-virus/anti-phishin
  • Google safe-search
  • YouTube for Schools

TEST TRAFFIC PATTERN

Traffic flowing through the MX security appliance for testing purposes was composed of the following protocols/applications. The traffic is heavily skewed towards HTTP/S (70%).


THROUGHPUT CONFIGURATION

  MX64(W) MX65(W) MX84 MX100 MX400 MX600
Max throughput 200 Mbps 200 Mbps 450 Mbps 750 Mbps 1 Gbps 1 Gbps
Client count 50 50 200 500 2,000 10,000

USE CASE: Higher-Ed firewall

Higher-Ed institutions traditionally don’t filter Web content due to freedom of speech concerns. Also, most Higher-Ed institutions have very high-throughput Internet access, so there is no need to do traffic shaping or Web caching.

FIREWALL CONFIGURATION

Security features enabled:

  • NAT mode
  • Anti-virus/anti-phishing
  • Layer 7 Firewall

TEST TRAFFIC PATTERN

Traffic (for testing purposes) was composed of the following protocols/applications. Compared to the previous scenario, there is more multimedia streaming (simulating a typical dorm use case).


THROUGHPUT CONFIGURATION

  MX64(W) MX65(W) MX84 MX100 MX400 MX600
Max throughput 200 Mbps 200 Mbps 450 Mbps 750 Mbps 1 Gbps 1 Gbps
Client count 50 50 200 500 2,000 10,000

USE CASE: Retail branch with guest access

Retailers are looking for a cost-effective yet secure solution to provide reliable VPN access for corporate applications like POS transactions, while offering a guest wireless access that is safe and filtered from inappropriate content.

FIREWALL CONFIGURATION

Security features enabled:

  • NAT mode
  • Split-tunnel VPN
  • Content filtering
  • Traffic shaping (max throughput on guest VLAN)
  • Anti-virus/anti-phishing
  • IPS

TEST TRAFFIC PATTERN

In this use case, retail traffic is a mixture of guest traffic (HTTP/S) as well as VPN traffic for file transfers, nightly backups and other corporate data.


THROUGHPUT CONFIGURATION

  MX64(W) MX65(W) MX84 MX100 MX400 MX600
Max throughput 200 Mbps 200 Mbps 320 Mbps 650 Mbps 1 Gbps 1 Gbps
Client count 50 50 200 500 2,000 10,000

USE CASE: Head-end concentrator for retail branches

MX is deployed in the datacenter as a one-armed VPN aggregator, possibly as an Active / Passive HA pair.

FIREWALL CONFIGURATION

Security features enabled:

  • VPN concentrator mode
  • Full-tunnel VPN

TEST TRAFFIC PATTERN

All traffic is via VPN, including HTTP/S for Web browsing and download, and considerable amount of file transfers to simulate backup and other corporate data exchange.


THROUGHPUT CONFIGURATION

  MX64(W) MX65(W) MX84 MX100 MX400 MX600
Max VPN throughput 100 Mbps 100 Mbps 220 Mbps 500 Mbps 1 Gbps 1 Gbps
Max per-tunnel VPN throughput 85 Mbps 85 Mbps 200 Mbps 375 Mbps 900 Mbps 900 Mbps
Max VPN Sessions 25 25 100 375 1,000 5,000

Conclusion

While every network will have a unique traffic pattern, this guide highlights a few common scenarios to help you choose the right Cisco Meraki MX product for your environment. Consider planning for future growth by allocating buffer room in your firewall selection (e.g., if you currently have 550 users, choose an MX that supports 1000 users). This will ensure that you can continue enabling additional security and network features as they become available. Also considering ISP speeds are increasing 29% year over year, it is important to choose a firewall that will serve you well over many years to come.
