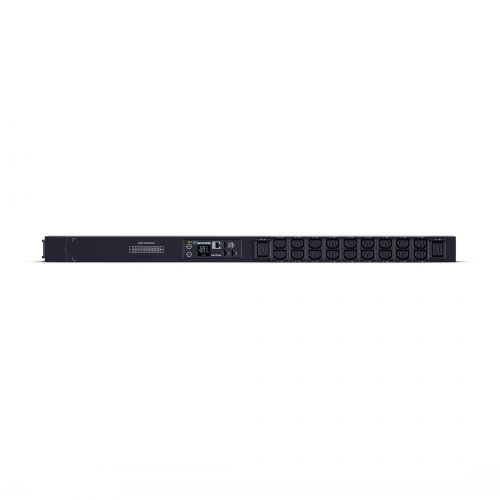

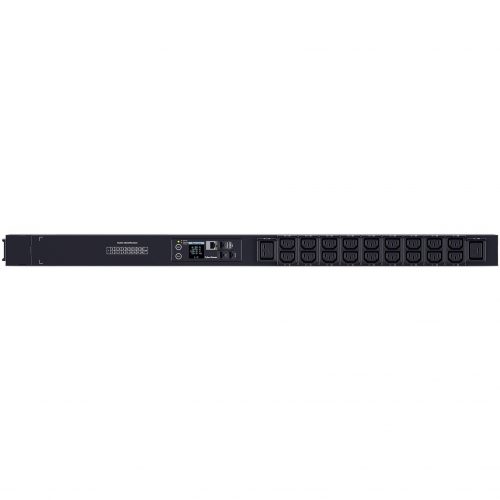

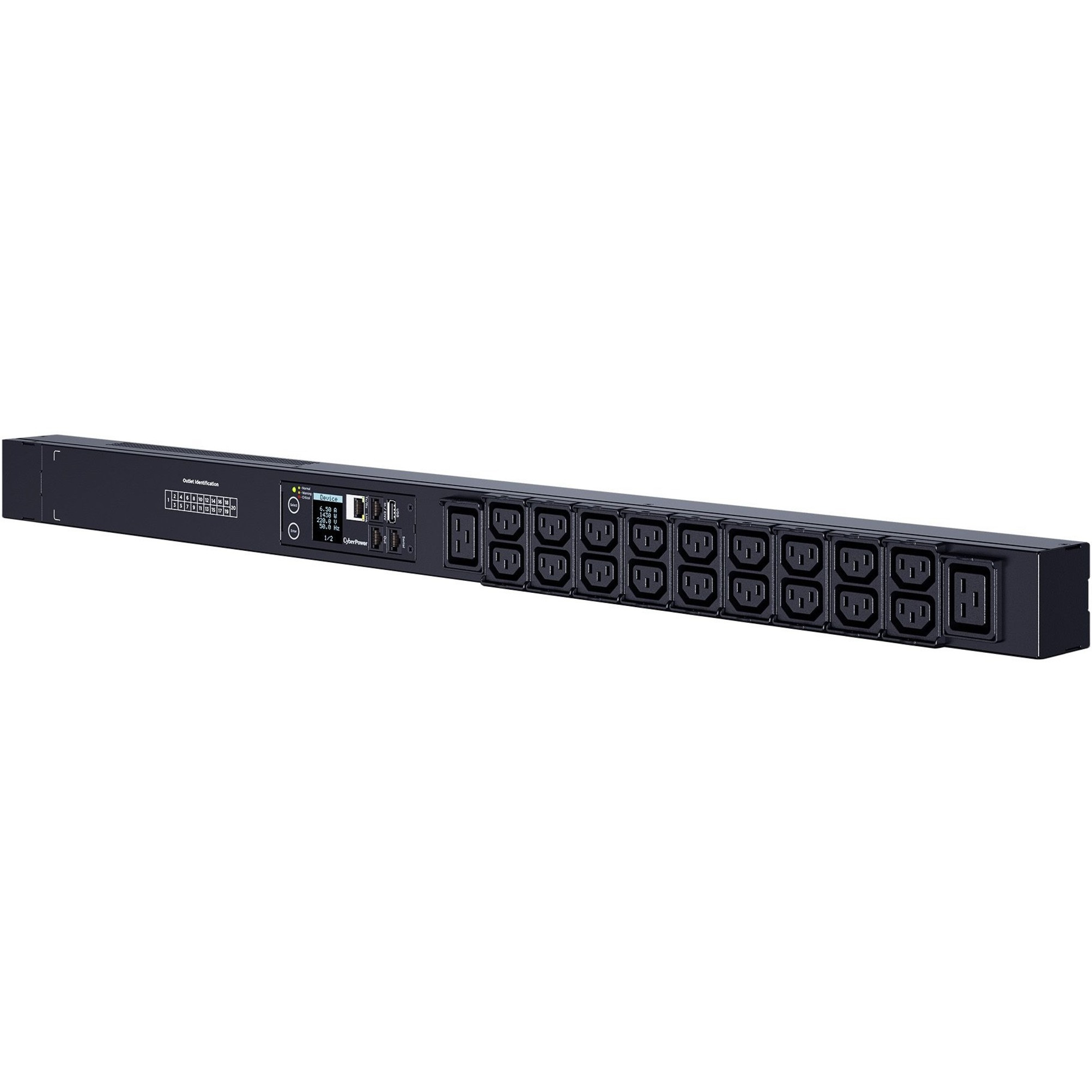

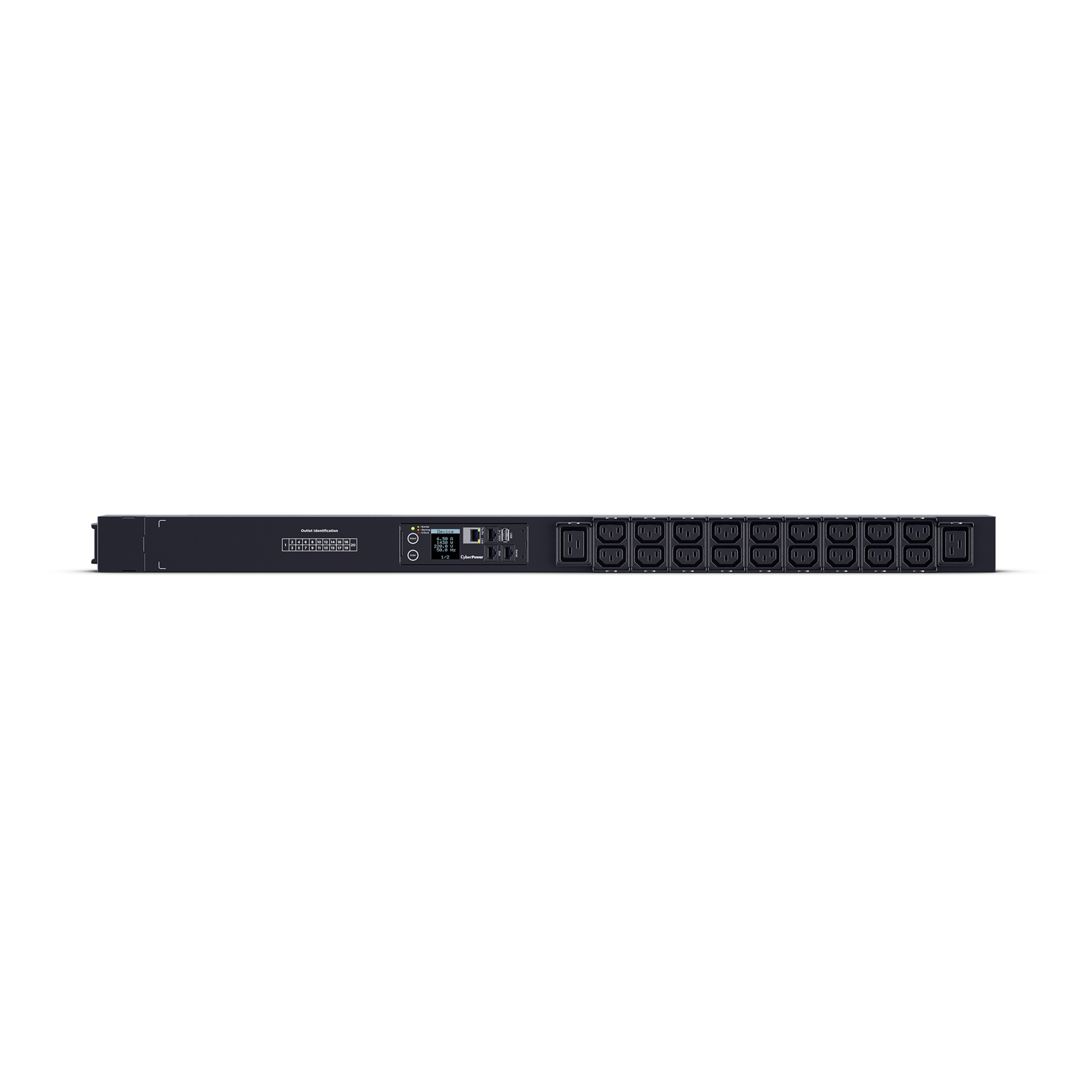

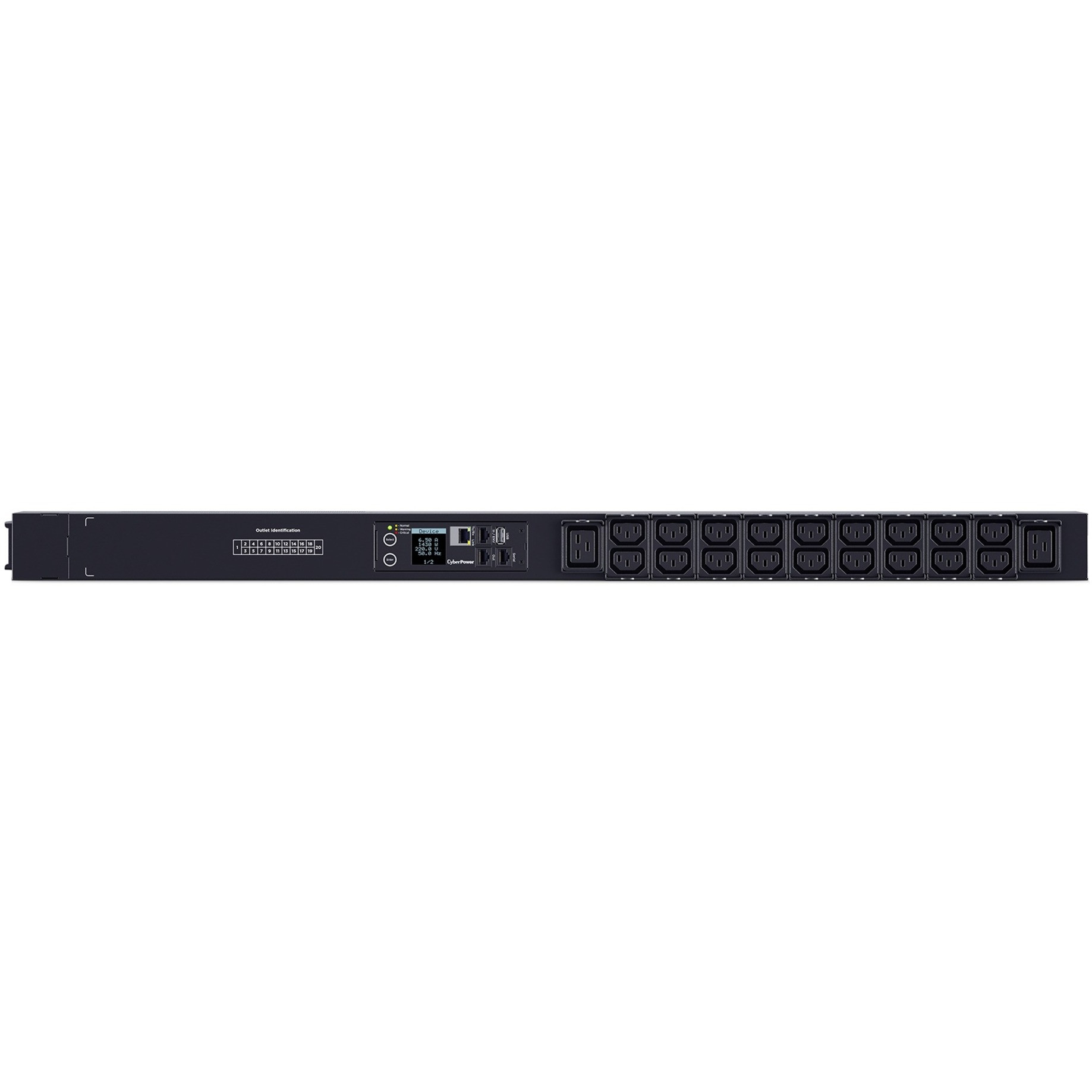

CyberPower PDU31114 Monitored PDU – 20 Outlets 200-240V


20-Outlets PDU
PDU improves efficiency, uptime and growth of data centers.
Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs.
Automated notifications: E-mail, SMS, Text and SNMP Trap.
Phase: Single.
Amps: 20A (Derated to 16A).
Volts: 200-240V.
Frequency: 50Hz/60Hz.
Plug type: NEMA L6-20P.

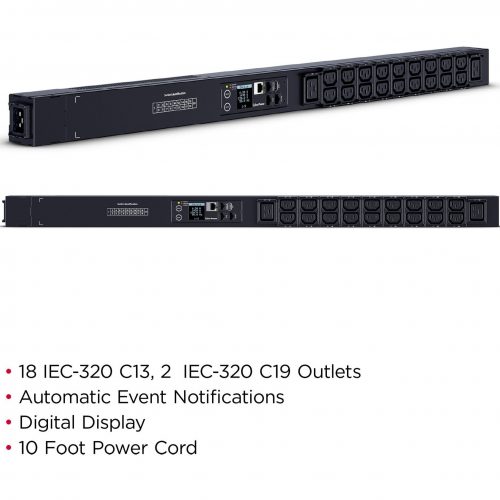

Outlets: 18 x IEC-320 C13, 2 IEC-320 C19.

SKU: PDU31114 Categories: , Brand: Cyber Power

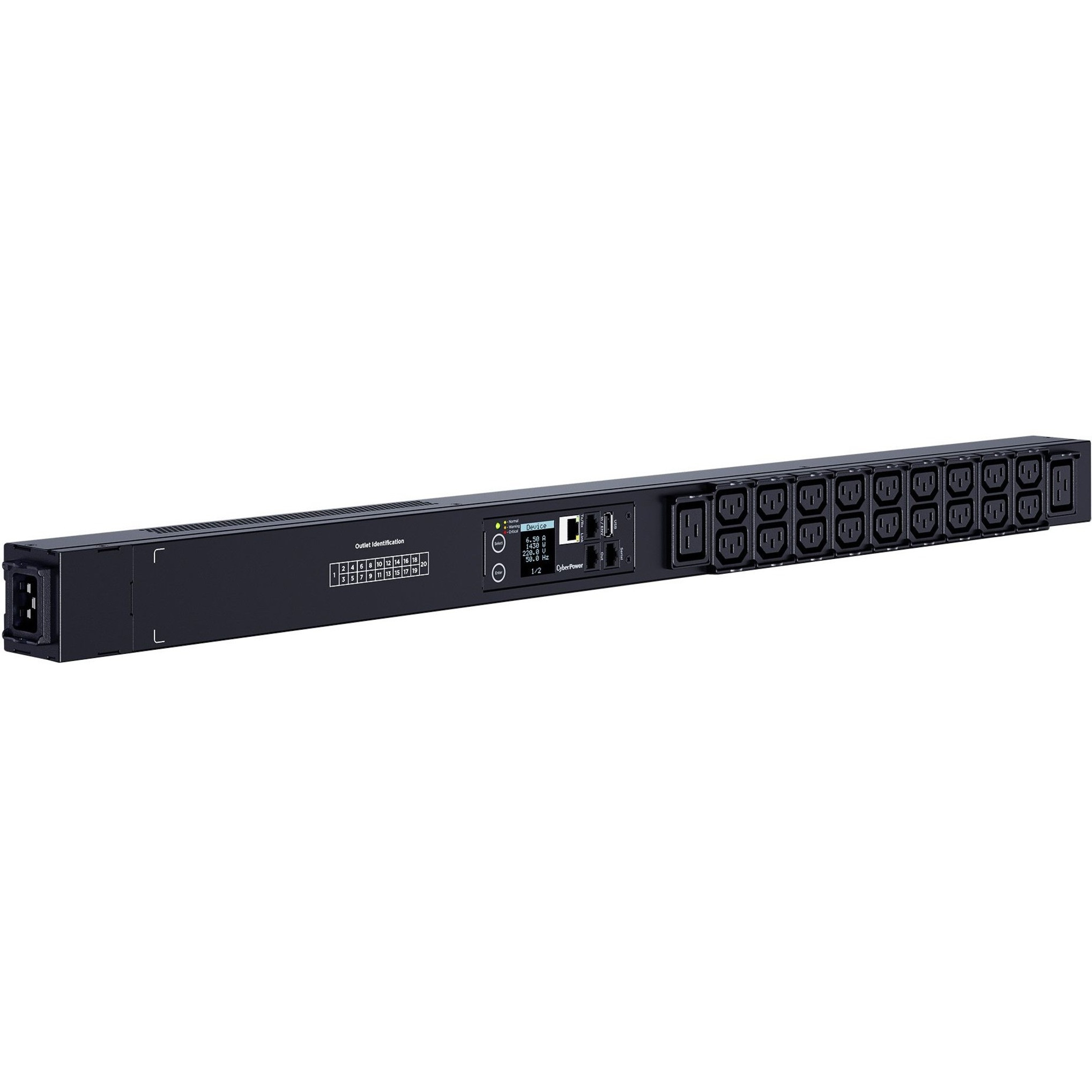

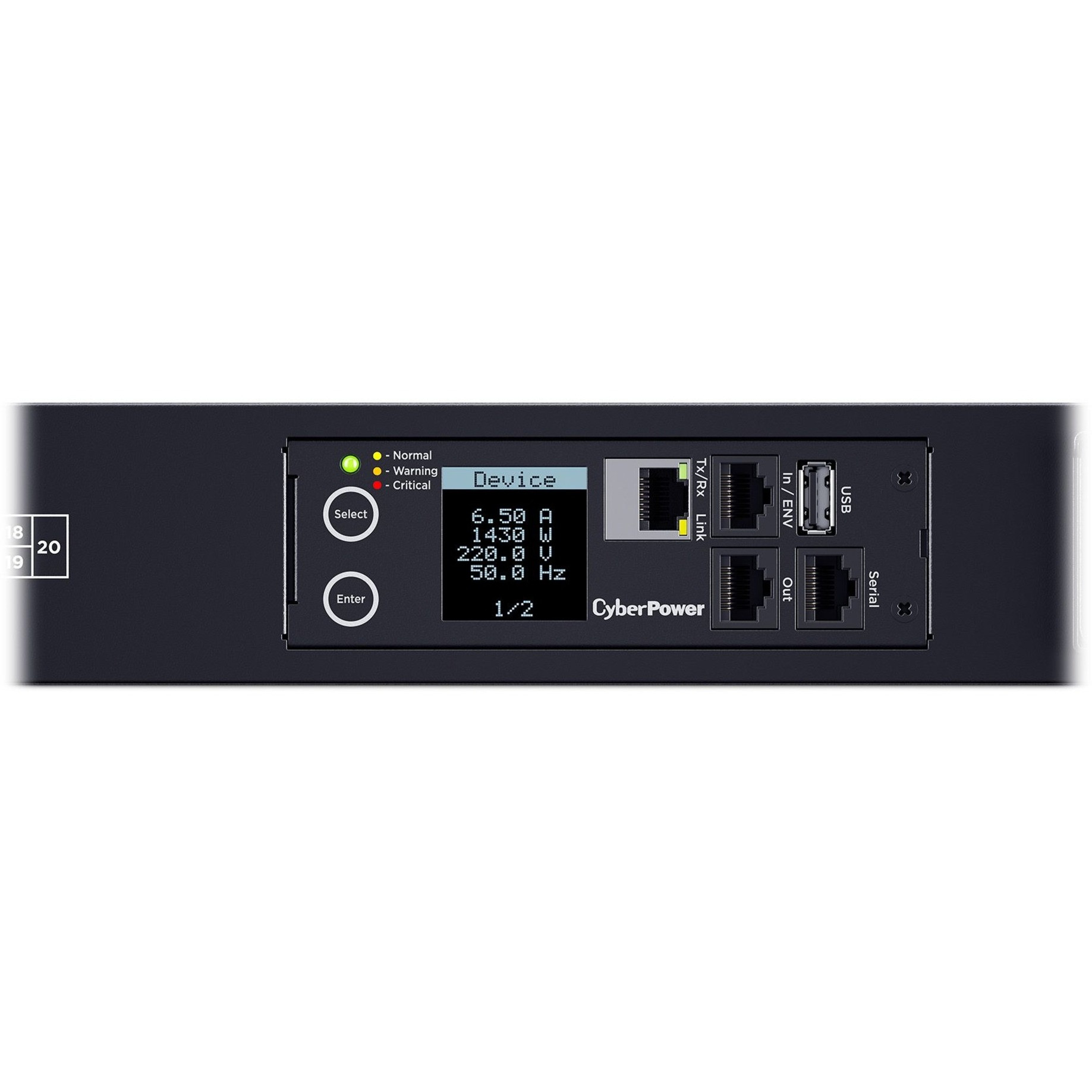

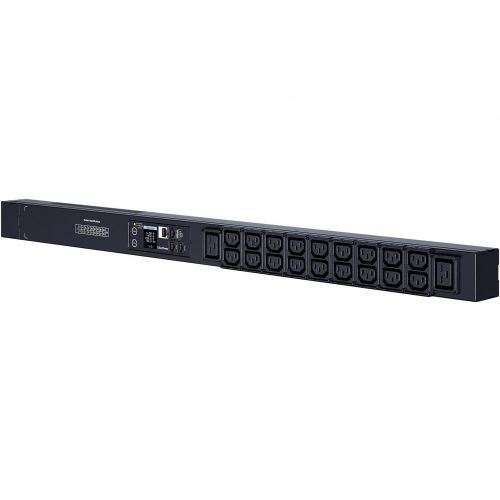

The CyberPower PDU31114 Monitored PDU provides 240V 20A output. It puts out power to 18 IEC-320 C13 and 2 IEC-320 C19 receptacles from a single NEMA L6-20P plug with unfiltered electrical pass through. The PDU31114 allows you to monitor power status over the network via the CyberPower management console and the RJ45 Ethernet port.

The PDU31114 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.


CyberPower UPS Systems is a well known US builder of uninterruptible power supplies, surge protectors and other backup power solutions. Some of its more popular products are the affordable line interactive UPS devices.

CyberPower also manufactures home office and professional grade UPS systems, PDUs, surge protectors, mobile chargers and connectivity products. They range from consumer grade to IT professional and enterprise. They’re very intent to providing a full range of power management products and solutions. The mission of CyberPower UPS is to help you power, monitor and safeguard critical equipment and data.

Wherever you are, whenever you need power, CyberPower has got you. They offer a huge line of accessories that charge, split, convert, and adapt power to fit your needs.

We are thrilled to be working with them, and are ready to answer your questions and save you money on your next CyberPower purchase, so reach out to us, or call Corporate Armor at 877-449-0458. We can’t wait to serve you!


CyberPower PDU31114 Monitored PDU

  • Provides power redundancy to single-corded connected equipment
  • Super easy to install
  • Three-year warranty
  • Superior build quality





Additional information

Weight 17.79 lbs

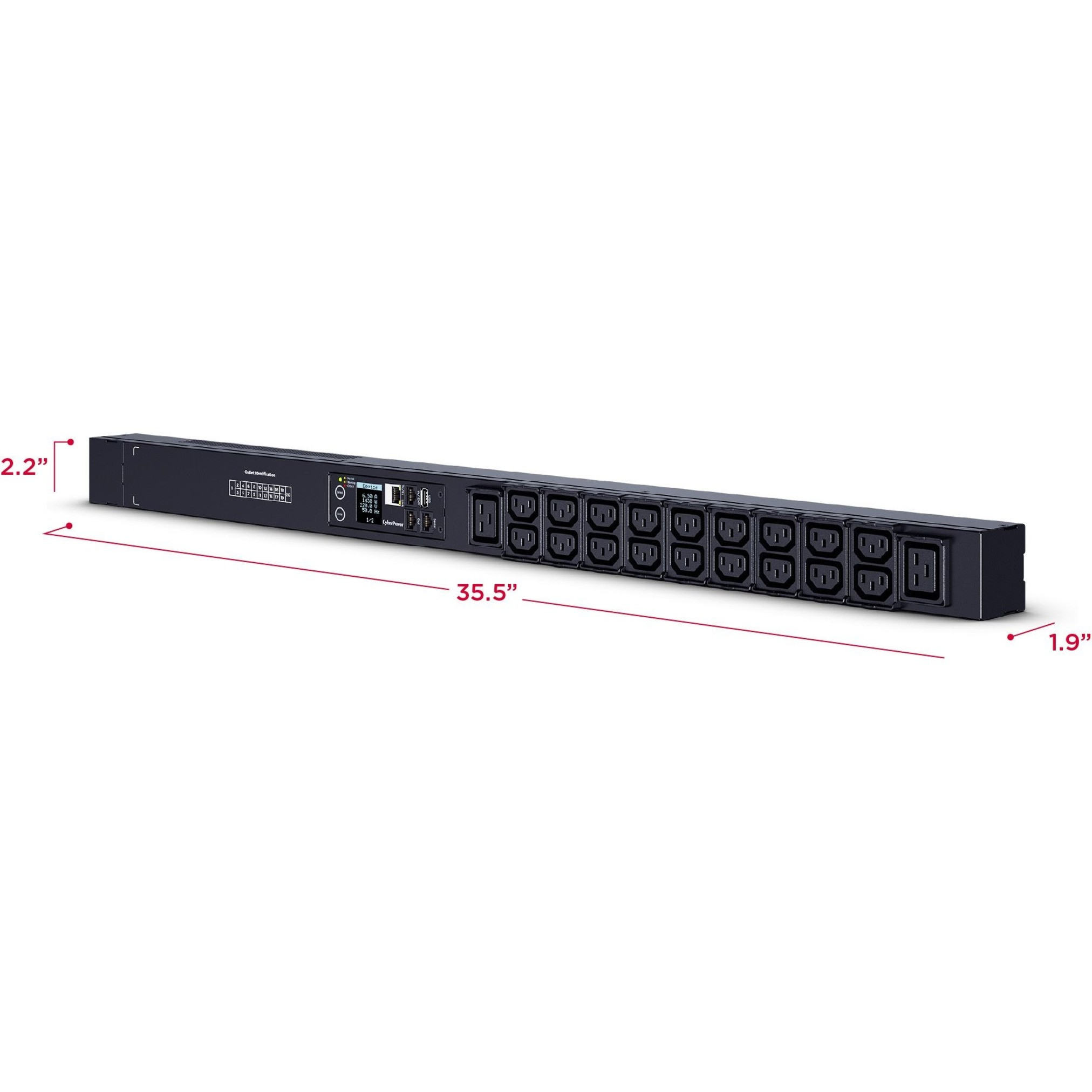

Dimensions 1.90 × 2.20 × 35.50 in
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number PDU31114
Manufacturer Website Address
Limited Warranty 3 Year
Output Voltage 230 V AC
Input Current 20 A
Management IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD,
Manufacturer CyberPower Systems, Inc
Product Model PDU31114
Product Name Monitored PDU PDU31114 20-Outlets PDU
Mount Type Rack-mountable
Product Series Monitored PDU
Rack Height 0U
Brand Name CyberPower
Plug/Connector Type NEMA L6-20P
Input Voltage Range 200 V AC - 240 V AC
Country of Origin China
Phase Single Phase
Receptacle Type IEC 60320 C13, IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Output Voltage Range 200 V AC - 240 V AC
Network (RJ-45) Yes
Design Modular
PDU Type Monitored
Mounting Orientation Vertical
Product Color Black
Receptacle Detail 18 x IEC 60320 C13, 2 x IEC 60320 C19
Plug/Connector Detail 2 x IEC 60320 C14

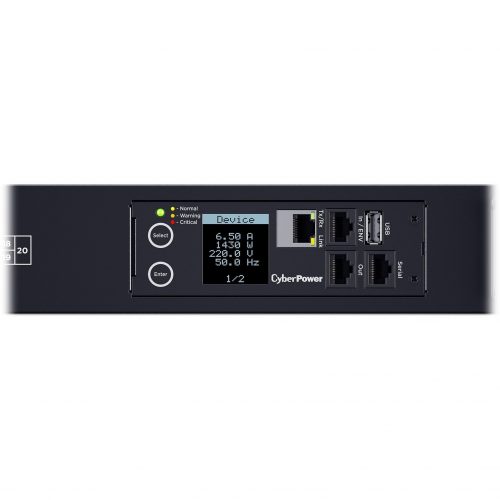

Additional Information Cord Length : 10 ft (3.0 m), Derated Input Current : 16 A, Outlets - Front : 20, Outlets - # of Banks : 1, Outlets - Total : 20, Outlet Type COMPUTED : 18 - IEC-320 C13, Overload Protection : None, Environmental Sensor : Optional, via RJ45, Hardware Connection Port : Ethernet (RJ45), LCD : Multifunction LCD, LED Indicators : Tx/Rx, Modular Expandability (Cascading) : Yes, via RJ45, Outlet switching : No, SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD, Upgradeable firmware : Yes, Adjustable Mounting Brackets : 1 set, Color : Black, Cord Retention Tray/Cord Organizers : Yes, External Site Ground Pin : Yes, Material of Construction : Metal, Operating Elevation : 0 - 11480 ft (0 - 3499 m), Operating Relative Humidity : 0 - 95 % (non-condensing), Operating Temperature : 32 - 131 °F (0 - 55 °C), Storage Elevation : 0 - 50000 ft (0 - 15239 m), Storage Temperature : 5 - 113 °F (-15 - 45 °C), Safety : UL 60950-1 : FCC Class A,
Remote Outlet Switching No
GTIN 0649532618682
UPC 649532618682
EAN 0649532618682
UNSPSC 39121017
