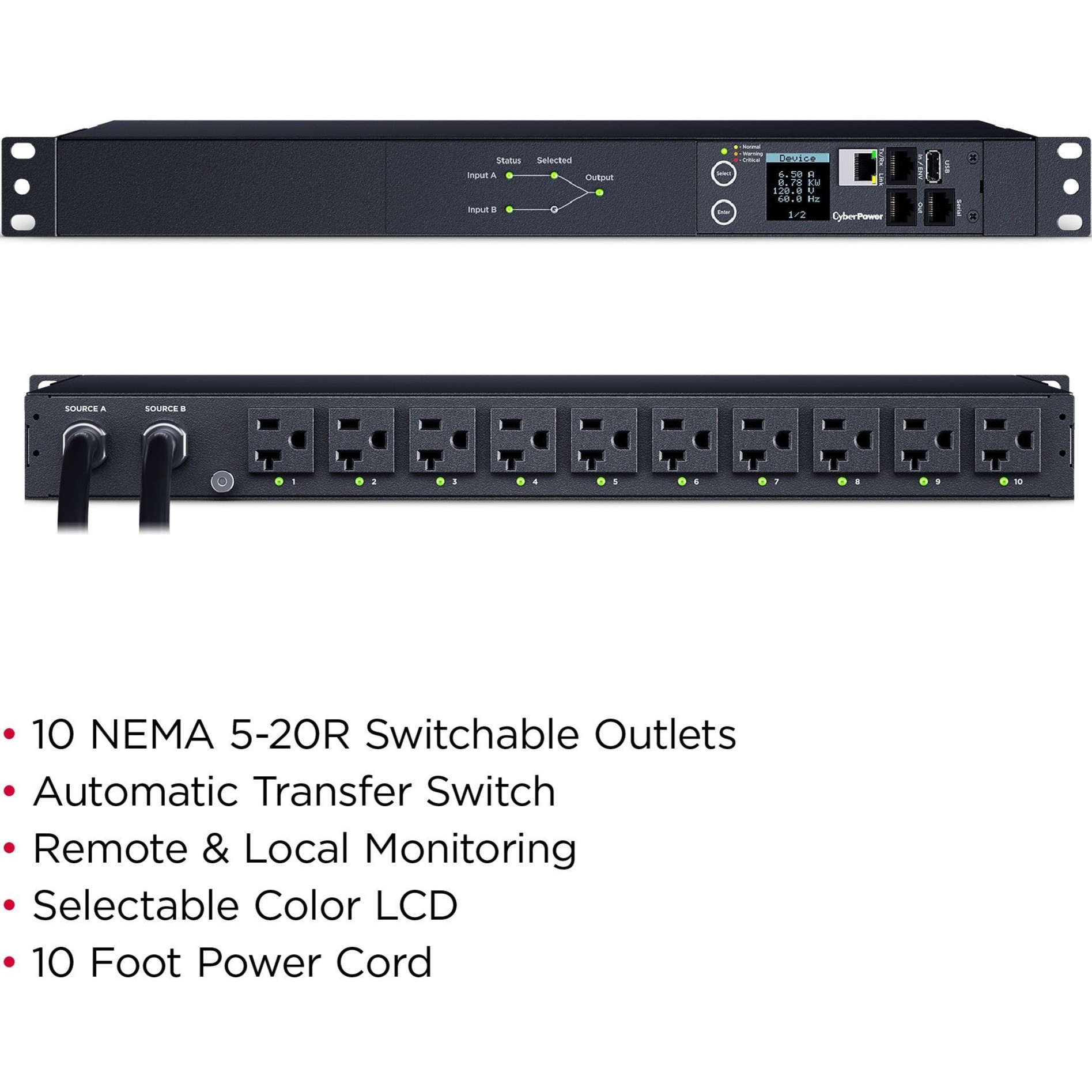

CyberPower PDU44002 Switched ATS PDU – 10-Outlets 120V AC


CyberPower Switched ATS PDU PDU44002 10-Outlets PDU
PDU distributes AC power to multiple servers and balances the load on the servers.
Remotely control individual outlets for rebooting of locked equipment with switched PDUs. Phase: Single.
Amps: 20A (Derated to 16A).
Volts: 100-120V.
Frequency: 50/60Hz.
Plug type: 2 x NEMA L5-20P (L5-20P to 5-20P adapter included).
Outlets: 10 x NEMA 5-20R.

SKU: PDU44002 Categories: , Brand: Cyber Power


Ensure continued operation of critical devices with the CyberPower PDU44002 Switched ATS PDU. It’s ideal for data centers and network closets, and provides power redundancy to single corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure constant operation.

Then, it will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

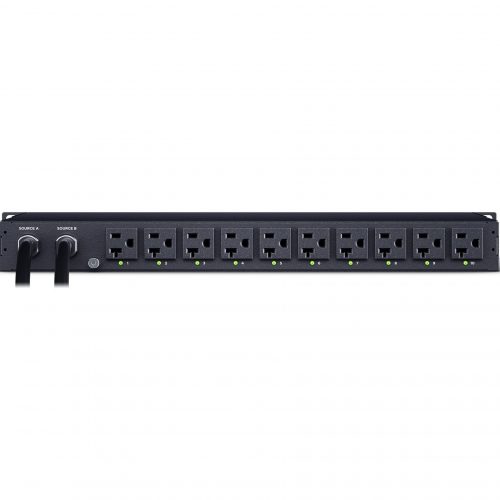

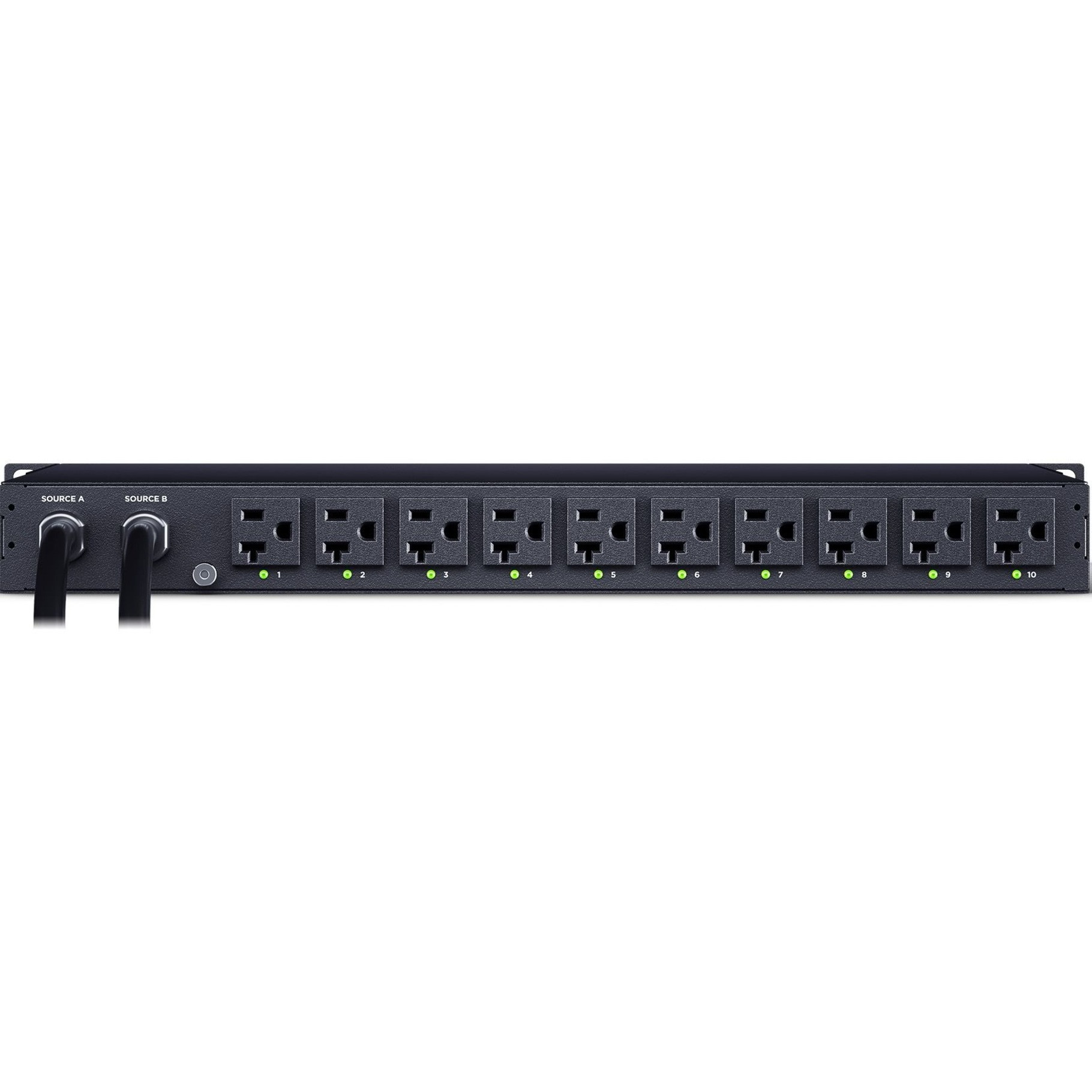

The PDU44002 supports inputs between 100-120V and includes 10 NEMA 5-20R outlets. Dual NEMA L5-20P power cords (L5-20P to non-locking 5-20P adapters included) are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel. It has a three-year limited warranty.


CyberPower UPS Systems is a well known US builder of uninterruptible power supplies, surge protectors and other backup power solutions. Some of its more popular products are the affordable line-interactive UPS devices.

CyberPower also manufactures home office and professional-grade UPS systems, PDUs, surge protectors, mobile chargers and connectivity products. They range from consumer grade to IT professional and enterprise. They’re very intent to providing a full range of power management products and solutions. The mission of CyberPower UPS is to help you power, monitor and safeguard critical equipment and data.

Wherever you are, whenever you need power, CyberPower has got you. They offer a huge line of accessories that charge, split, convert, and adapt power to fit your needs.

We are thrilled to be working with them, and are ready to answer your questions and save you money on your next CyberPower purchase, so reach out to us, or call Corporate Armor at 877-449-0458. We can’t wait to serve you!


CyberPower PDU44002 Switched ATS PDU

  • Provides power redundancy to single-corded connected equipment
  • Super easy to install
  • Three-year warranty
  • Superior build quality




Additional information

Weight 16.31 lbs
Dimensions 8.45 × 17.05 × 1.75 in
Package Contents Switched ATS PDU PDU44002 10-Outlets PDU, L5-20P to non-locking 5-20P Adapter,
Product Type PDU
Input Voltage 120 V AC
Manufacturer Part Number PDU44002
Manufacturer Website Address
Limited Warranty 3 Year
Output Voltage 120 V AC
Input Current 20 A
Management IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD,
Manufacturer CyberPower Systems, Inc
Product Model PDU44002
Product Name Switched ATS PDU PDU44002 10-Outlets PDU
Mount Type Rack-mountable
Product Series Switched ATS PDU
Rack Height 1U
Brand Name CyberPower
Plug/Connector Type NEMA L5-20P
Input Voltage Range 100 V AC - 120 V AC
Country of Origin China
Phase Single Phase
Receptacle Type NEMA 5-20R
Environmentally Friendly Yes
Environmental Certification RoHS
Output Voltage Range 100 V AC - 120 V AC
Network (RJ-45) Yes
Design Modular
PDU Type Switched
Mounting Orientation Horizontal
Product Color Black
Receptacle Detail 10 x NEMA 5-20R
Plug/Connector Detail 2 x NEMA L5-20P
Additional Information Cord Length : 10 ft (3.0 m), Derated Input Current : 16 A, Input Frequency Range : 50 Hz - 60 Hz, Nominal Input Voltage : 100 - 120 VAC, Phase : Single Phase, Plug Style : Straight, Outlet Banks : 1, Outlets - Total : 10, Overload Protection : None, Power Source Transfer Time : 2-7 ms, Source Failure Detection Time : 2-3 ms, Total Transfer Time : &lt;10 ms, Environmental Sensor : Optional, via RJ45, Hardware Connection Port : Ethernet (RJ45), LCD : Multifunction LCD, LED Indicators : Source Status, Modular Expandability (Cascading) : Yes, via RJ45, Outlet switching : Yes, Upgradeable firmware : Yes, Color : Black, Cord Retention Tray/Cord Organizers : Yes, External Site Ground Pin : Yes, Form Factors Supported : 1U Rackmount, Material of Construction : Metal, Rack Height : 1U, Style : Rackmount, Operating Elevation : 0 - 13123 ft (0 - 4000 m), Operating Relative Humidity : 0 - 95 % (non-condensing), Operating Temperature : 32 - 113 &deg;F (0 - 45 &deg;C), Storage Elevation : 0 - 49213 ft (0 - 14999 m), Storage Temperature : 5 - 131 &deg;F (-15 - 55 &deg;C), Safety : UL62368 : FCC Class A : cTUVus, <p></p>
Remote Outlet Switching Yes
GTIN 0649532933884
UPC 649532933884
EAN 0649532933884
UNSPSC 39121017
