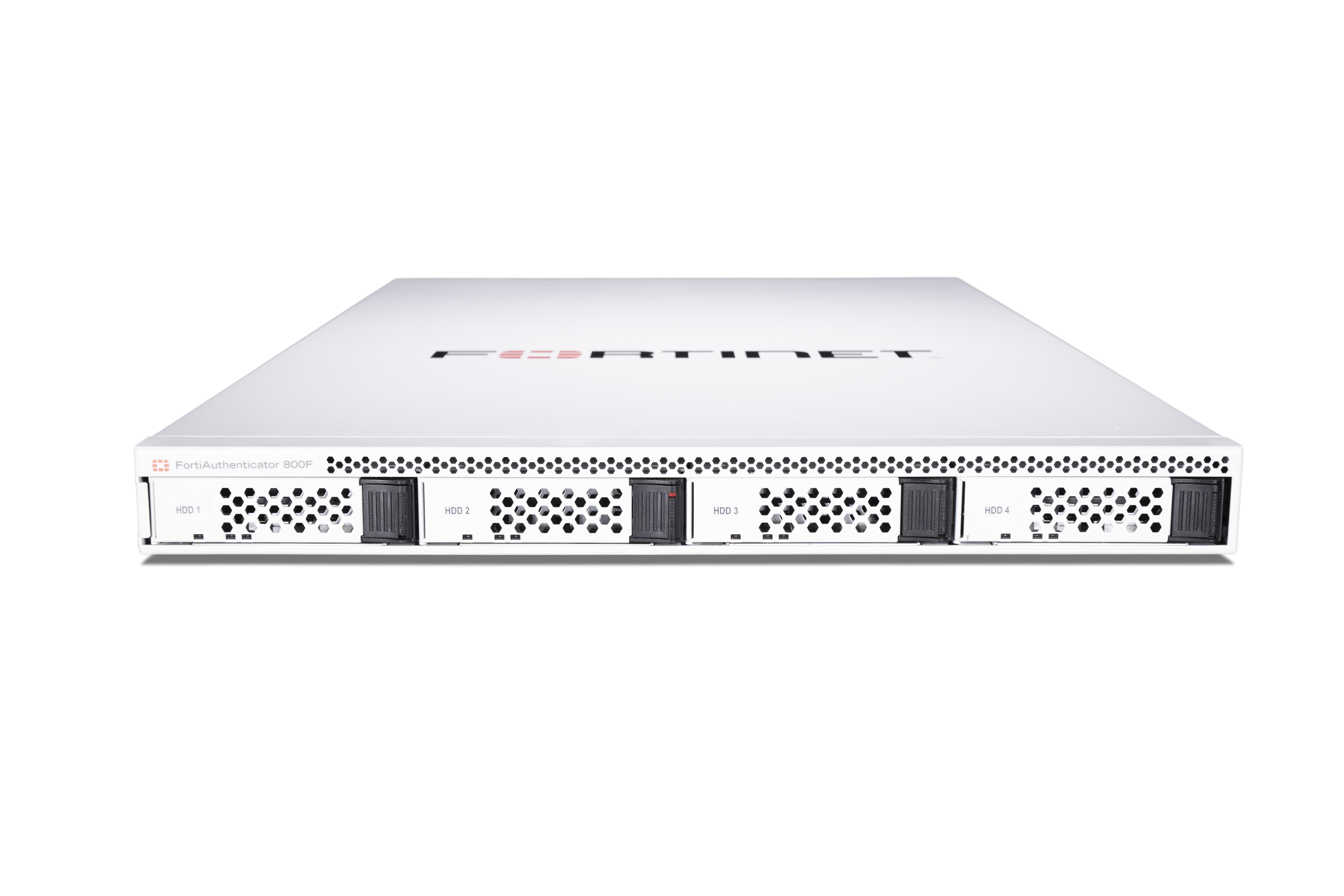

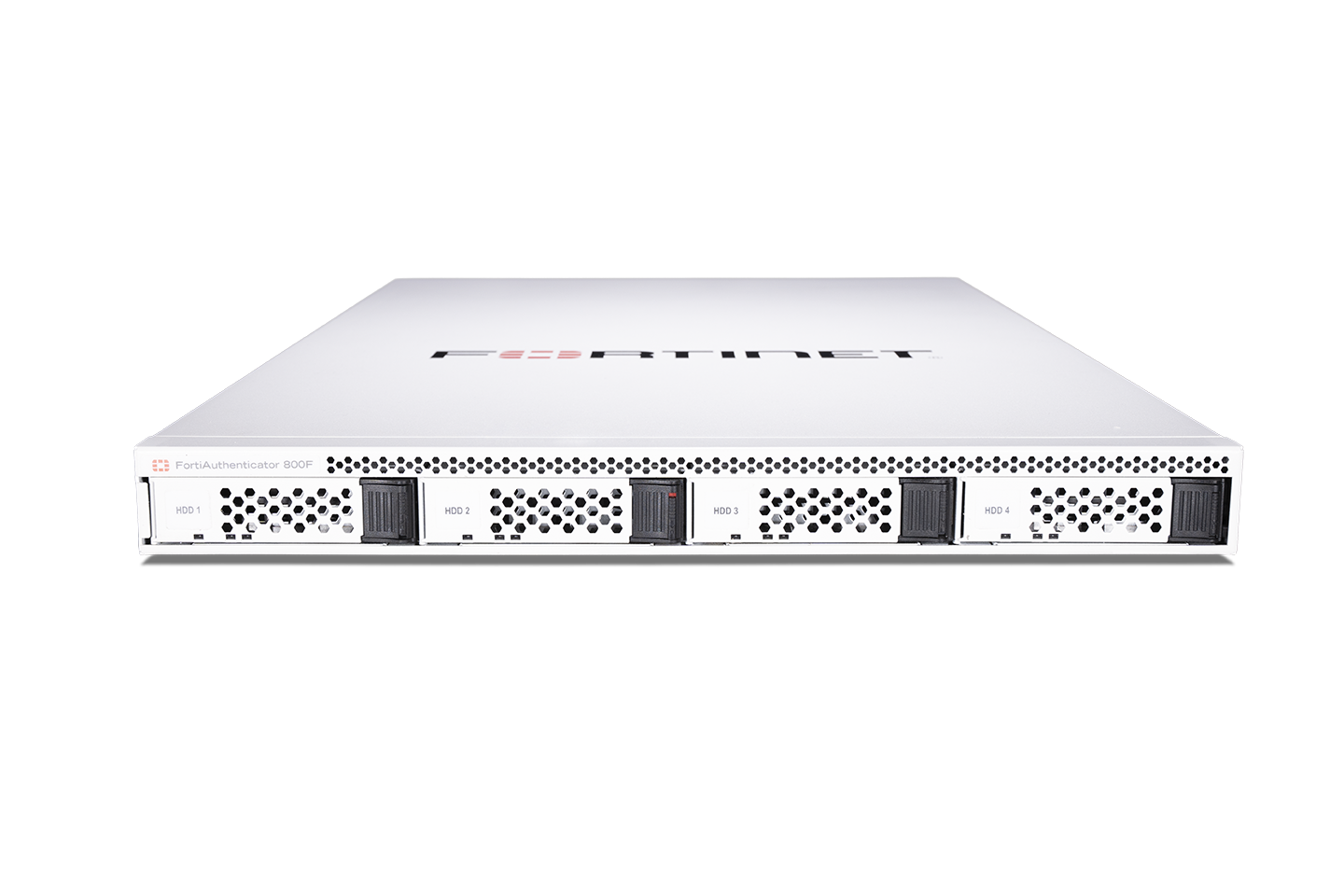

Fortinet FortiAuthenticator 800F network monitoring device FAC-800F


Fortinet FortiAuthenticator 800F – Network monitoring device – GigE – 1U – rack-mountable

SKU: FAC-800F Categories: , , Brand: Fortinet


Fortinet FortiAuthenticator 800F – Network monitoring device – GigE – 1U – rack-mountable

Network and Internet access is key for almost every role within the enterprise; however, this requirement must be balanced with the risk that it brings. The key objective of every enterprise is to provide secure but controlled network access enabling the right person the right access at the right time, without compromising on security.
Fortinet Single Sign-On is the method of providing secure identity and rolebased access to the Fortinet connected network. Through integration with existing Active Directory or LDAP authentication systems, it enables enterprise user identity-based security without impeding the user or generating work for network administrators.
FortiAuthenticator builds on the foundations of Fortinet Single Sign-on, adding a greater range of user identification methods and greater scalability. FortiAuthenticator is the gatekeeper of authorization into the Fortinet secured enterprise network identifying users, querying access permissions from third party systems, and communicating this information to FortiGate devices for use in Identity-Based Policies.

Key Selling Points
Enables identity and role-based security policies in the Fortinet secured enterprise network without the need for additional authentication through integration with Active Directory
Strengthens enterprise security by simplifying and centralizing the management of user identity information
Secure Two-factor/OTP Authentication with full support for FortiToken
RADIUS and LDAP Authentication
Certificate management for enterprise VPN deployment
IEEE802.1X support for wired and wireless network security

Additional information

Weight 48.07 lbs
Dimensions 27.6 × 17.2 × 1.7 in
Product Description Fortinet FortiAuthenticator 800F - network monitoring device
Device Type Network monitoring device
Form Factor Rack-mountable
Hard Drive HDD 2 TB x 2
Capacity Total users (local + remote): 8000 u00a6 Number of FortiToken devices: 16000 u00a6 RADIUS clients: 2666 u00a6 User groups: 800 u00a6 CA certificates: 50 u00a6 User certificates: 40000
Power AC 120/230 V (50/60 Hz)
Power Redundancy Yes
Connectivity Technology Wired
Network / Transport Protocol NTP, HTTP, HTTPs, Telnet
Remote Management Protocol Telnet, HTTP, HTTPS, CLI, NTP, LDAP, RADIUS
Features VPN support, 802.1x authentication, NTP client, Simple Certificate Enrollment Protocol (SCEP), One-Time Password (OTP)
Encryption Algorithm SSL, EAP-TLS
Authentication Method RADIUS, X.509 certificates, LDAP, Active Directory, SAML, EAP-TLS
Compliant Standards UL, VCCI, BSMI, GOST, cUL, CB, FCC Part 15 A, KC, RCM

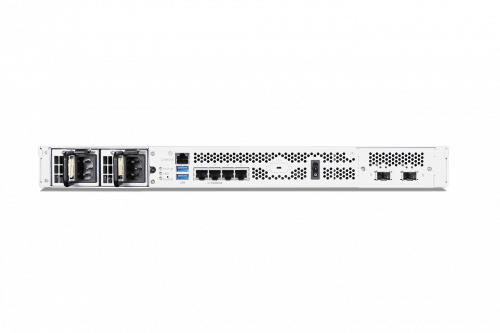

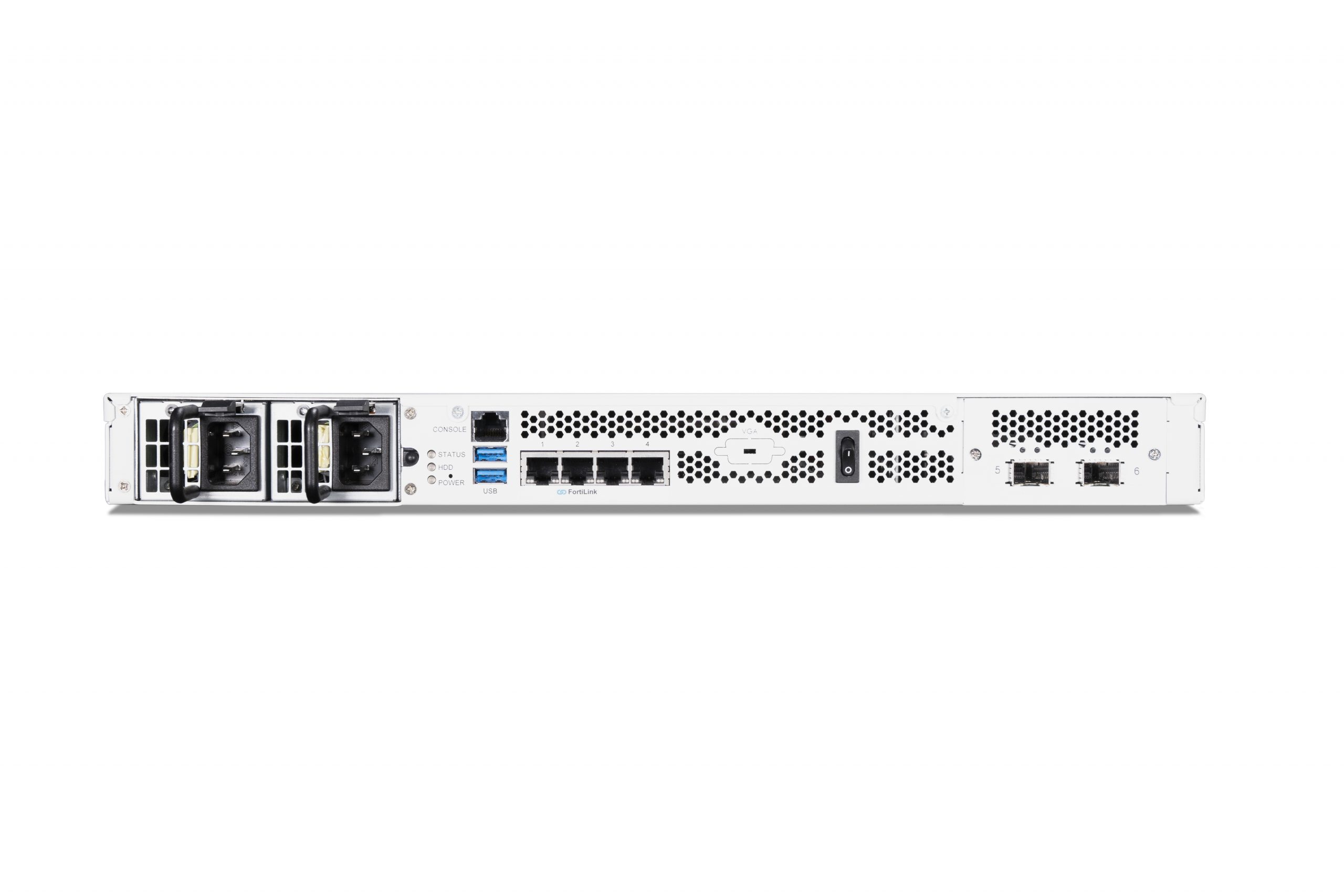

Interfaces 4 x 1000Base-T - RJ-45 u00a6 2 x - SFP (mini-GBIC)
Power Device Internal power supply
Installed Qty 2
Max Supported Qty 2
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 154 Watt
Power Provided 300 Watt
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
