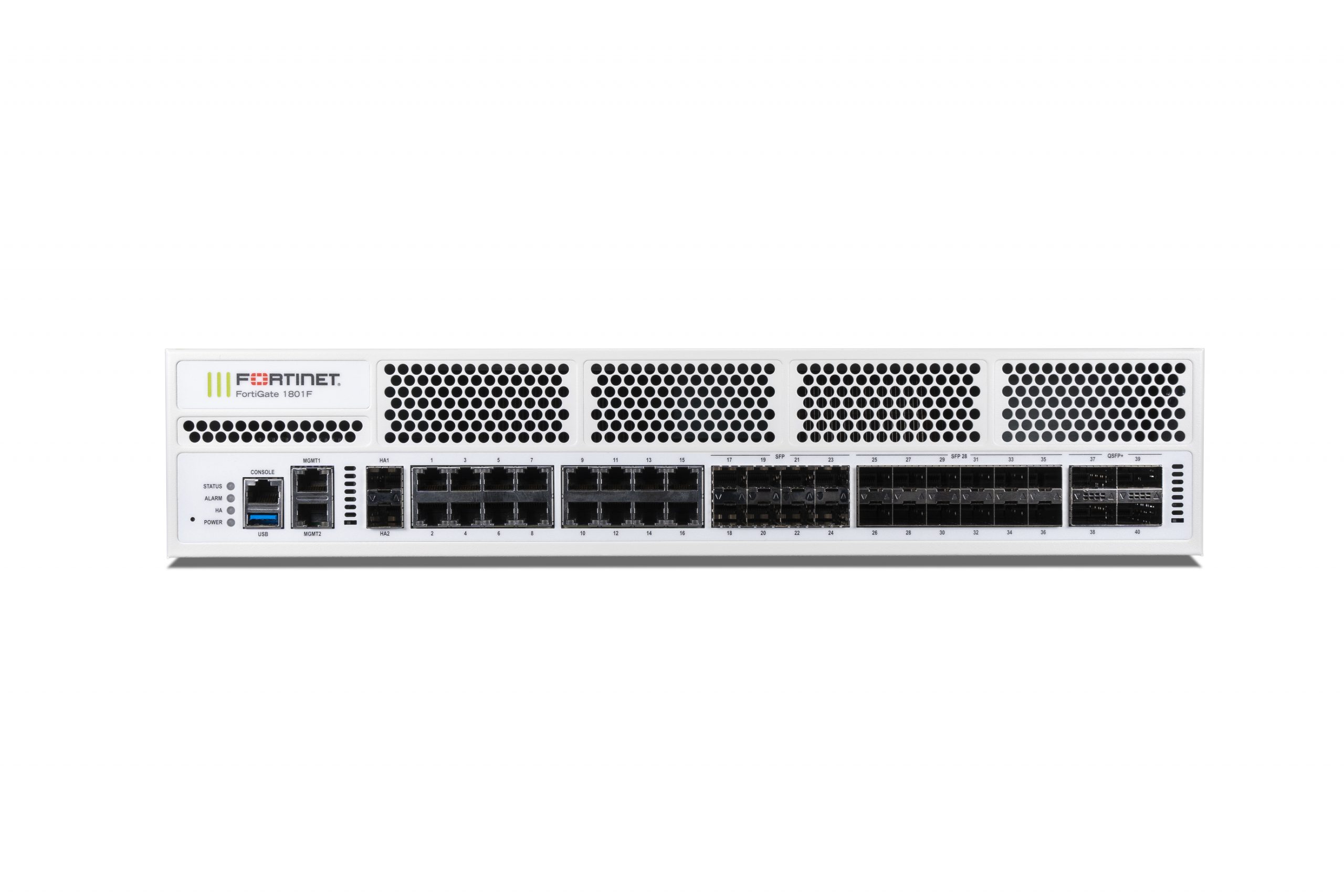

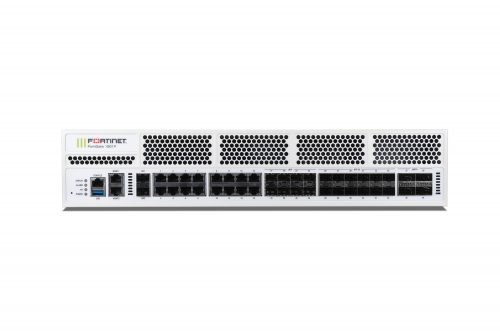

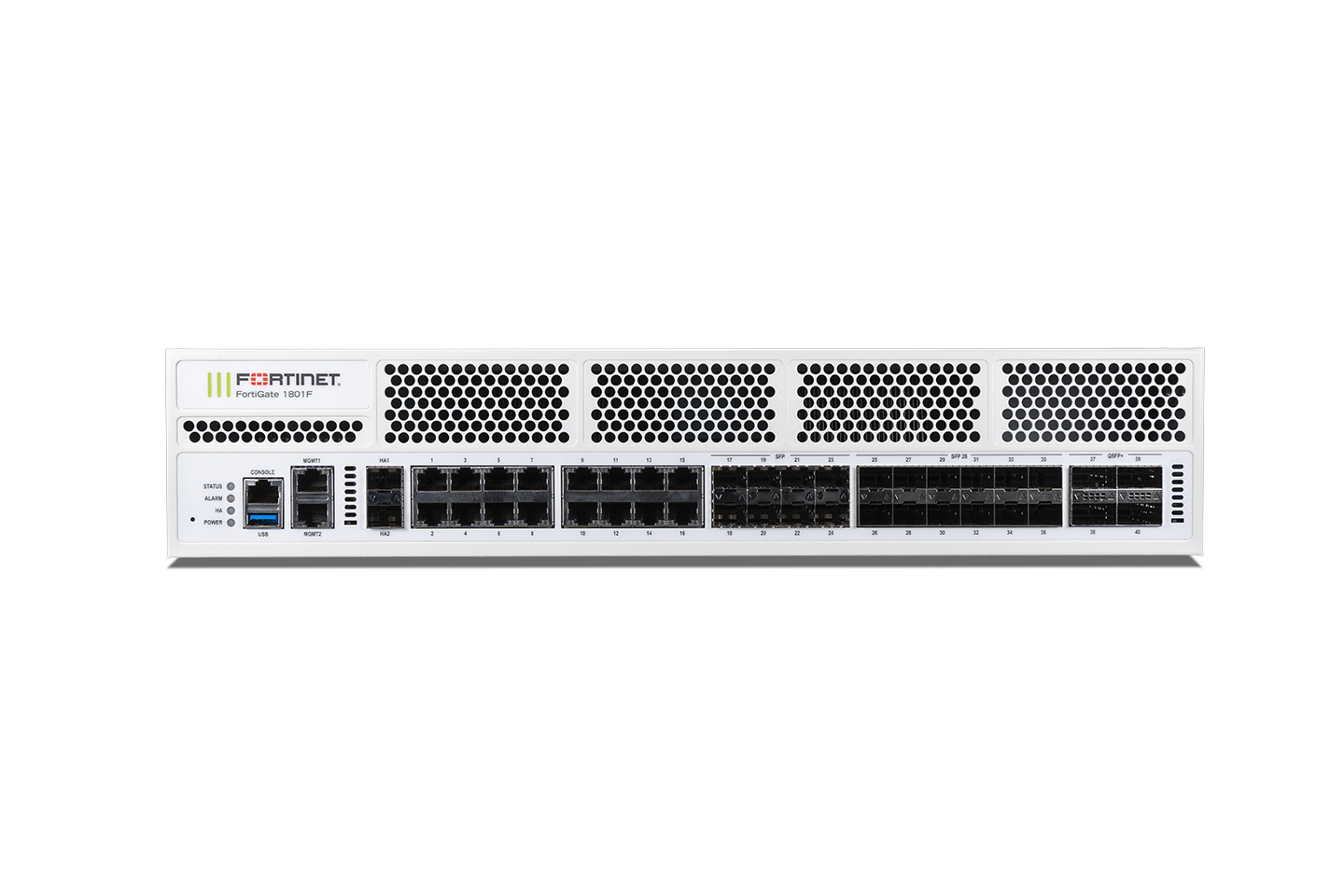

Fortinet FortiGate 1801F security appliance FG-1801F

Fortinet FortiGate 1801F – Security appliance – 10 GigE, 40 Gigabit LAN, 25 Gigabit LAN – 2U – rack-mountable

SKU: FG-1801F~PVAR Categories: , Brand: Fortinet


Description: 4 X 40GE QSFP+ SLOTS 12X25GE SFP28 /10GE
Fortinet FortiGate 1801F – Security appliance – 10 GigE, 40 Gigabit LAN, 25 Gigabit LAN – 2U – rack-mountable

The FortiGate 1800F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density and high throughput, ideal deployments are at the enterprise edge, hybrid and hyperscale data center core and across internal segments. Leverage industry-leading IPS, SSL inspection and advanced threat protection to optimize your network’s performance. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Additional information

Weight 95.42 lbs
Dimensions 21.1 × 17.2 × 3.5 in

No License, UTP, 360 Protection, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years

Product Description Fortinet FortiGate 1801F - security appliance
Device Type Security appliance
Form Factor Rack-mountable
Hard Drive SSD 1 TB x 2 - NVMe
Performance IPS throughput: 13 Gbps u00a6 NGFW throughput: 11 Gbps u00a6 Threat protection throughput: 9.1 Gbps u00a6 Firewall throughput (1518-byte UDP): 198 Gbps u00a6 Firewall throughput (512-byte UDP): 197 Gbps u00a6 Firewall throughput (64-byte UDP): 140 Gbps u00a6 Firewall latency (64-byte UDP): 4 u00b5s u00a6 Firewall throughput: 210 Mpps u00a6 VPN throughput (IPSec): 65 Gbps u00a6 VPN throughput (SSL): 11 Gbps u00a6 SSL inspection throughput: 17 Gbps u00a6 SSL inspection CPS: 9500 u00a6 Application control (AVC) throughput: 34 Gbps
Capacity Concurrent TCP sessions: 12000000 u00a6 New TCP sessions per second: 750000 u00a6 Firewall policies: 100000 u00a6 Gateway to gateway IPSec VPN Tunnels: 20000 u00a6 Client to gateway IPSec VPN tunnels: 100000 u00a6 Concurrent SSL VPN users: 10000 u00a6 SSL inspection concurrent sessions: 1300000 u00a6 Virtual domains: 10 u00a6 Maximum virtual domains: 250 u00a6 Number of FortiSwitches: 128 u00a6 Number of FortiToken devices: 20000
Included Accessories 2 x 10Gb Ethernet SR SFP+ transceiver
Power AC 120/230 V (50/60 Hz)
Power Redundancy Yes
Connectivity Technology Wired
Network / Transport Protocol IPSec, SCTP, IPv4, IPv6
Remote Management Protocol IPv4, IPv6
Features VPN support, CAPWAP support, Virtual Extensible LAN (VXLAN), DDoS Protection
Encryption Algorithm SSL
Interfaces 2 x 1000Base-T (management) - RJ-45 u00a6 2 x 10GBase-X - SFP+ u00a6 16 x 1000Base-T - RJ-45 u00a6 8 x 1000Base-X - SFP (mini-GBIC) u00a6 12 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 u00a6 4 x 40GBase-X - QSFP+ u00a6 1 x USB 3.0 - Type A u00a6 1 x console - RJ-45
Compliant Standards UL, VCCI, C-Tick, cUL, FCC Part 15 A, USGv6, SSL
Power Device Internal power supply - hot-plug
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 543.6 Watt
OS Provided FortiOS
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 10 - 90% (non-condensing)
