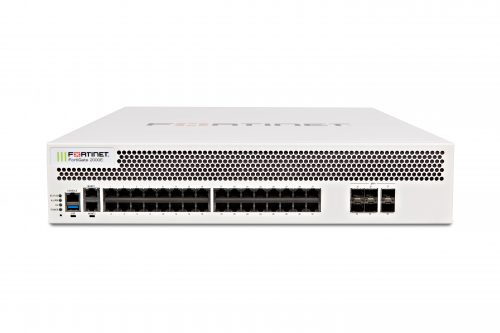

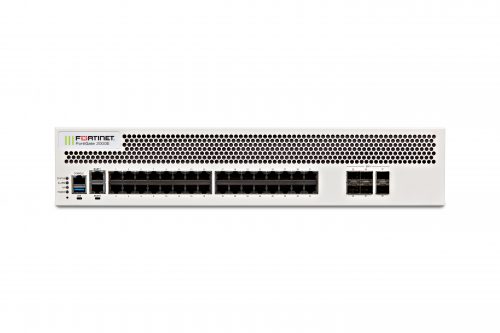

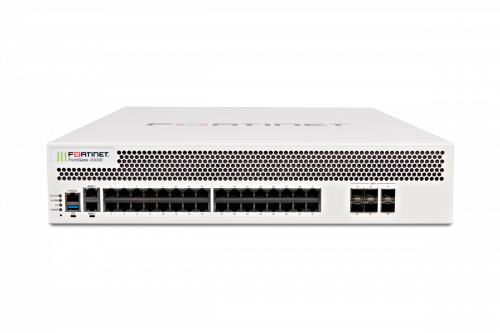

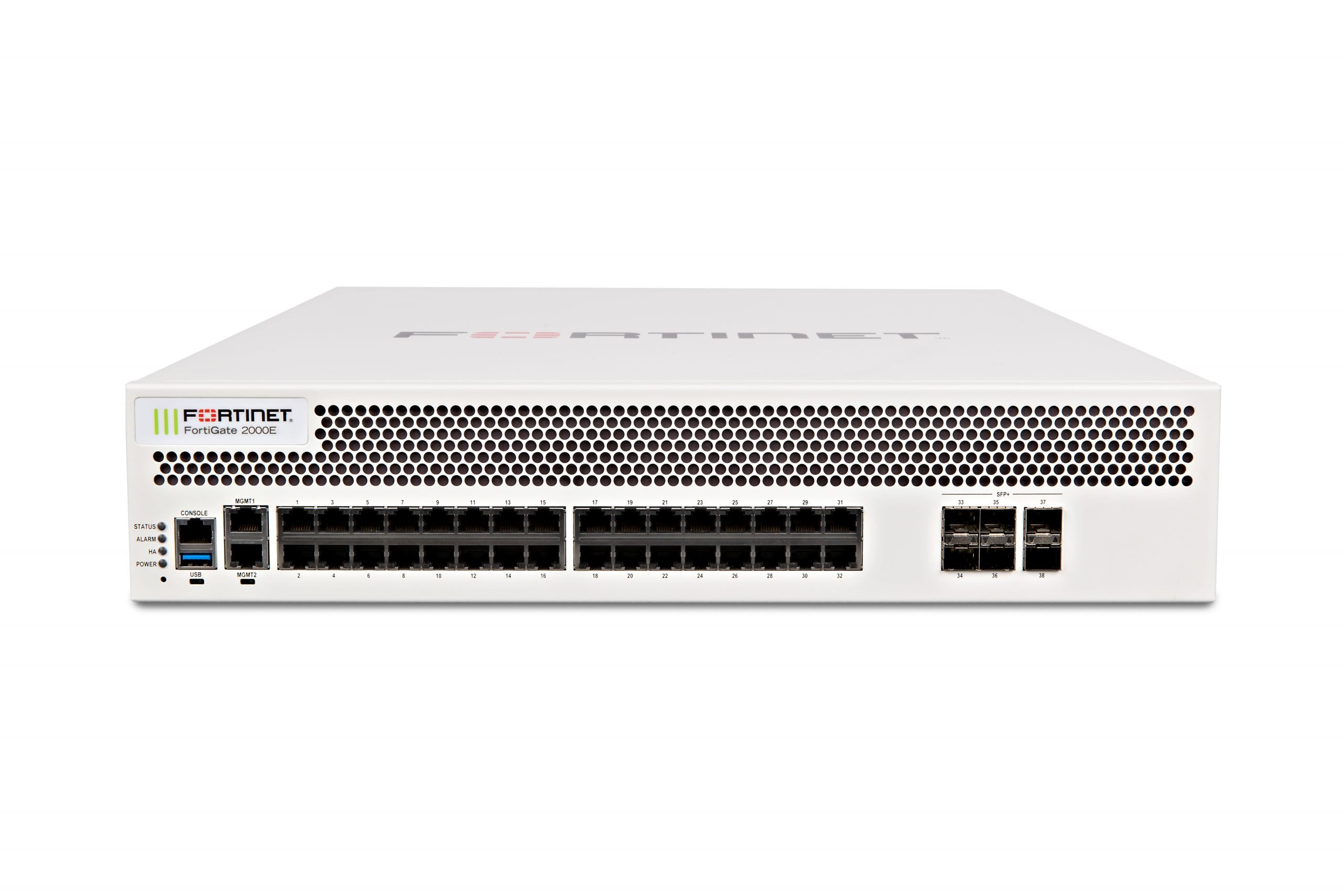

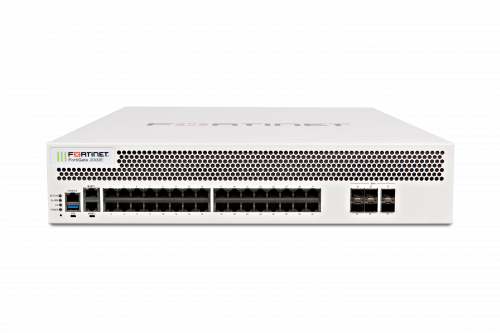

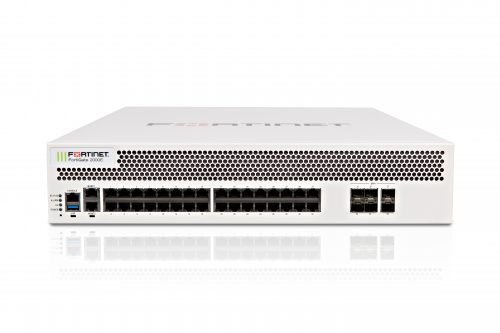

Fortinet FortiGate 2000E / FG-2000E Next Generation Firewall (NGFW) Security Appliance

Fortinet FortiGate 2000E – Security appliance – 10 GigE – 2U

SKU: FG-2000E~PVAR Categories: , Brand: Fortinet


Every day you’re on the lookout for sophisticated attacks designed to penetrate your organization and steal valuable information. At the same time, you need to increase network speeds and capacities to accommodate the proliferation of consumer-grade applications and devices. To adequately defend against threats across such a broad range of applications and devices — without slowing down your network — you need a high performance next generation/edge firewall (NGFW) appliance for deep inspection, visibility and control.

Breakthrough Performance

The FortiGate 2000E high performance next generation/edge firewall delivers best-in-class performance with an exceptional 90 Gbps of firewall and superior next generation threat protection. Custom hardware, including the latest FortiASIC™ NP6 processors, and the consolidated security features of the FortiOS™ 5 network security platform make the difference in enabling protection of your applications and network without affecting availability or performance.

Features & Benefits

  • Powered by new content processor (CP9) for enhanced IPS and SSL inspection capabilities
  • NSS Labs Recommended NGFW and NGIPS delivers top-rated protection
  • Intuitive management interface enables broad and deep visibility and control
  • Application control plus identity and device-based policy enforcement provides more granular protection
  • Integrated high port density delivers maximum flexibility and scalability

Additional information

Weight 112 lbs
Dimensions 21.9 × 17.4 × 3.5 in

No License, UTP, 360 Protection, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years

Product Description Fortinet FortiGate 2000E - security appliance
Device Type Security appliance
Form Factor External
Processor Fortinet FortiASIC CP9/NP6
Hard Drive SSD 480 GB
Performance Firewall throughput (1518-byte packet size): 90 Gbps u00a6 Firewall throughput (512-byte packet size): 90 Gbps u00a6 Firewall throughput (64-byte packet size): 60 Gbps u00a6 IPS throughput (HTTP): 25 Gbps u00a6 SSL inspection throughput: 12.5 Gbps u00a6 Application control (AVC) throughput: 15 Gbps u00a6 NGFW throughput: 9 Gbps u00a6 Firewall latency (64-byte UDP): 2 u00b5s u00a6 Firewall throughput: 90 Mpps u00a6 VPN throughput (512-bit IPSec): 65 Gbps u00a6 VPN throughput (SSL): 6 Gbps u00a6 Threat prevention throughput: 5.4 Gbps u00a6 CAPWAP throughput: 21 Gbps
Capacity Concurrent sessions: 20000000 u00a6 New sessions per second: 100000 u00a6 Firewall policies: 100000 u00a6 Gateway to gateway IPSec VPN Tunnels: 20000 u00a6 Client to gateway IPSec VPN tunnels: 50000 u00a6 Virtual domains: 500 u00a6 Number of FortiAP devices: 4096 u00a6 Maximum number of registered endpoints: 8000 u00a6 Number of FortiToken devices: 5000
Included Accessories 2 SR SFP+ transceivers
Power AC 120/230 V (50/60 Hz)
Power Redundancy Yes
Processors Installed Fortinet FortiASIC CP9/NP6
Connectivity Technology Wired
Network / Transport Protocol IPSec
Status Indicators Power, status, alarm, HA
Features Firewall protection, VPN support, content filtering, IPv6 support, VPN passthrough, antivirus analysis, High Availability, Intrusion Prevention System (IPS), IPv4 support
Encryption Algorithm SSL
Interfaces 32 x 1000Base-T - RJ-45 u00a6 6 x 10Gb Ethernet - SFP+ u00a6 1 x console - RJ-45 u00a6 2 x 1000Base-T (management) - RJ-45 u00a6 1 x USB 2.0 - Type A
Compliant Standards UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A
Power Device Internal power supply - hot-plug
Installed Qty 2
Max Supported Qty 2
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 430 Watt
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 20 - 90% (non-condensing)
