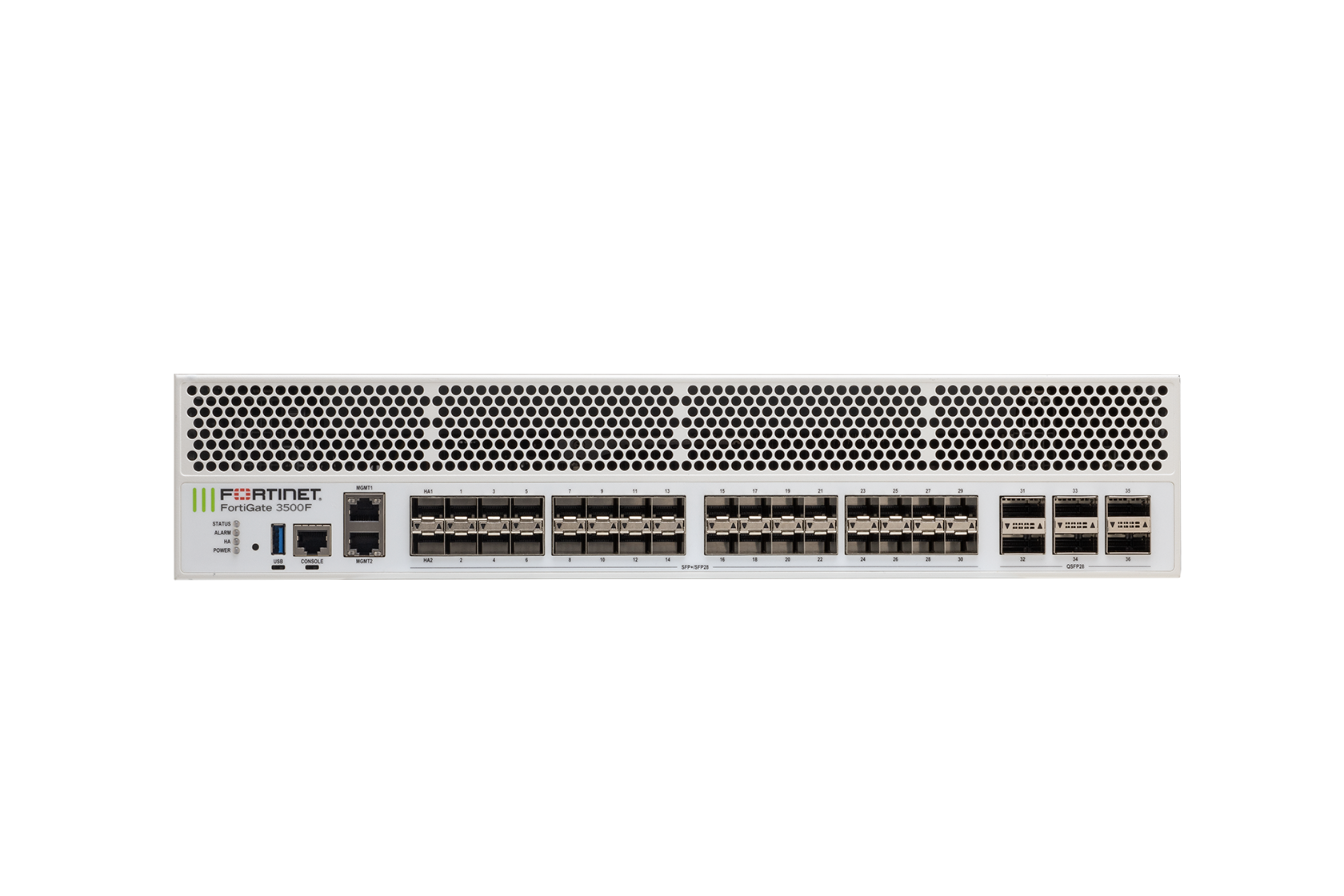

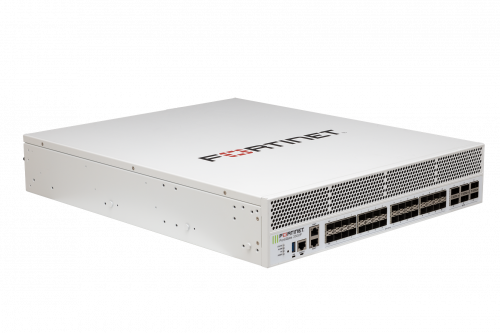

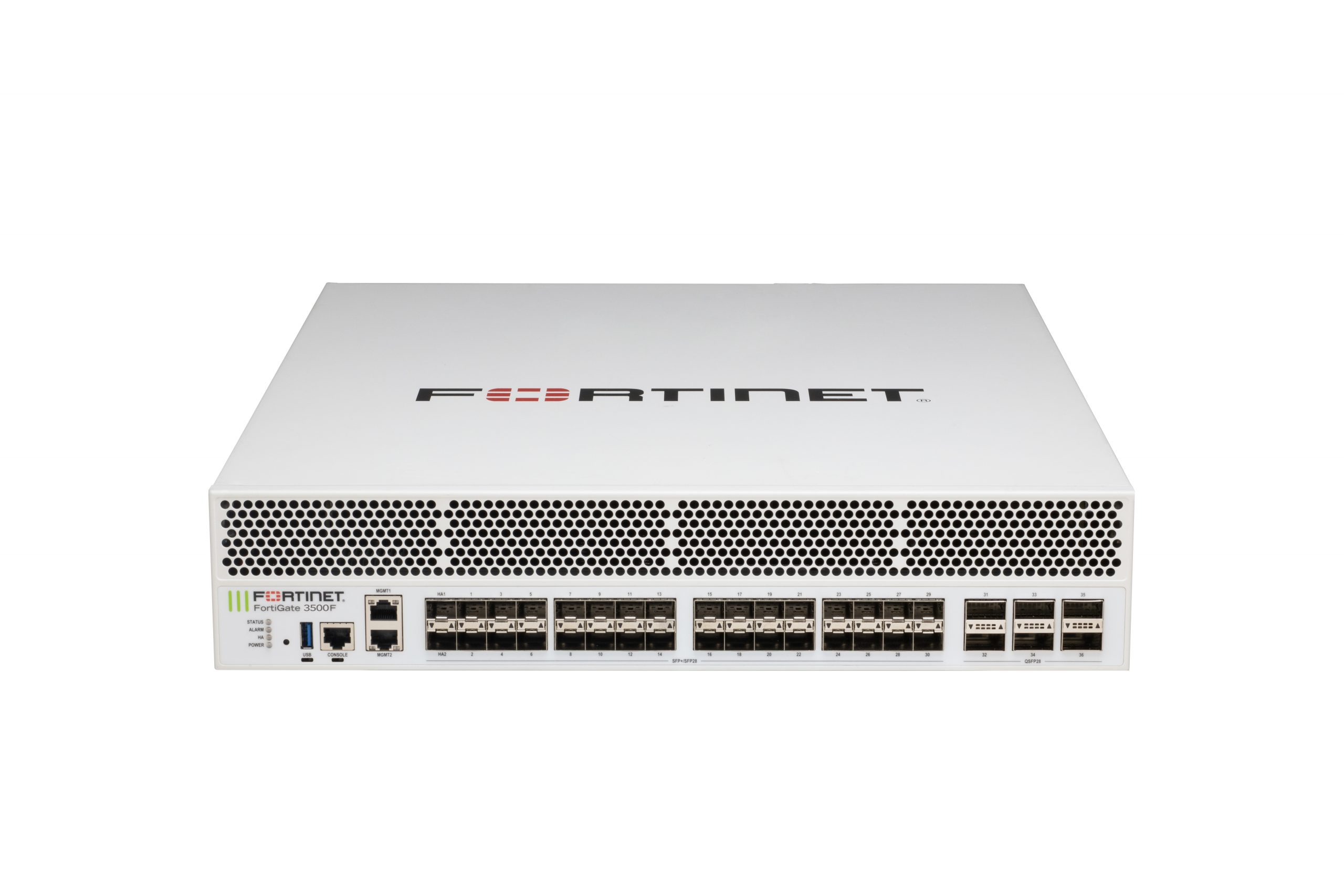

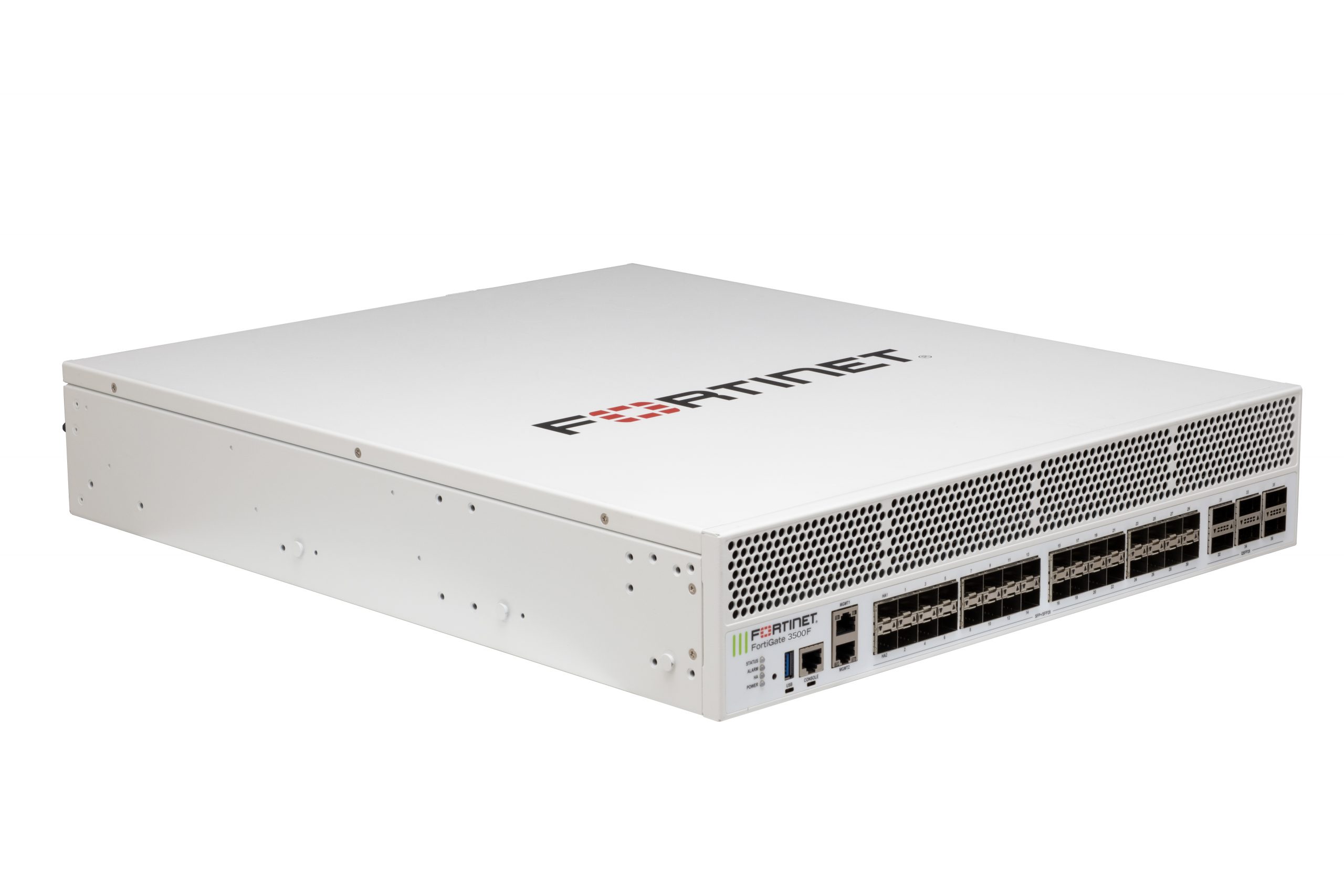

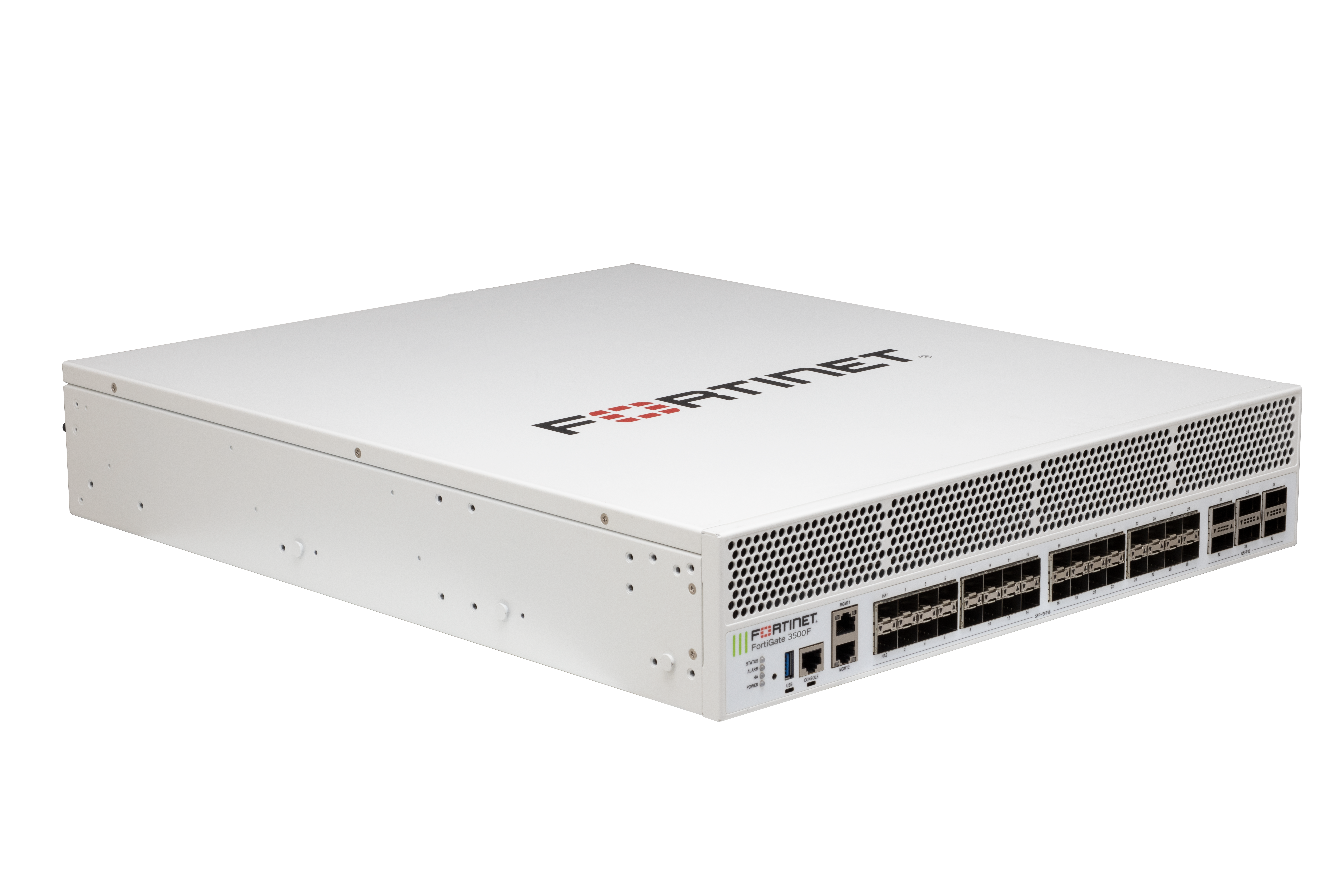

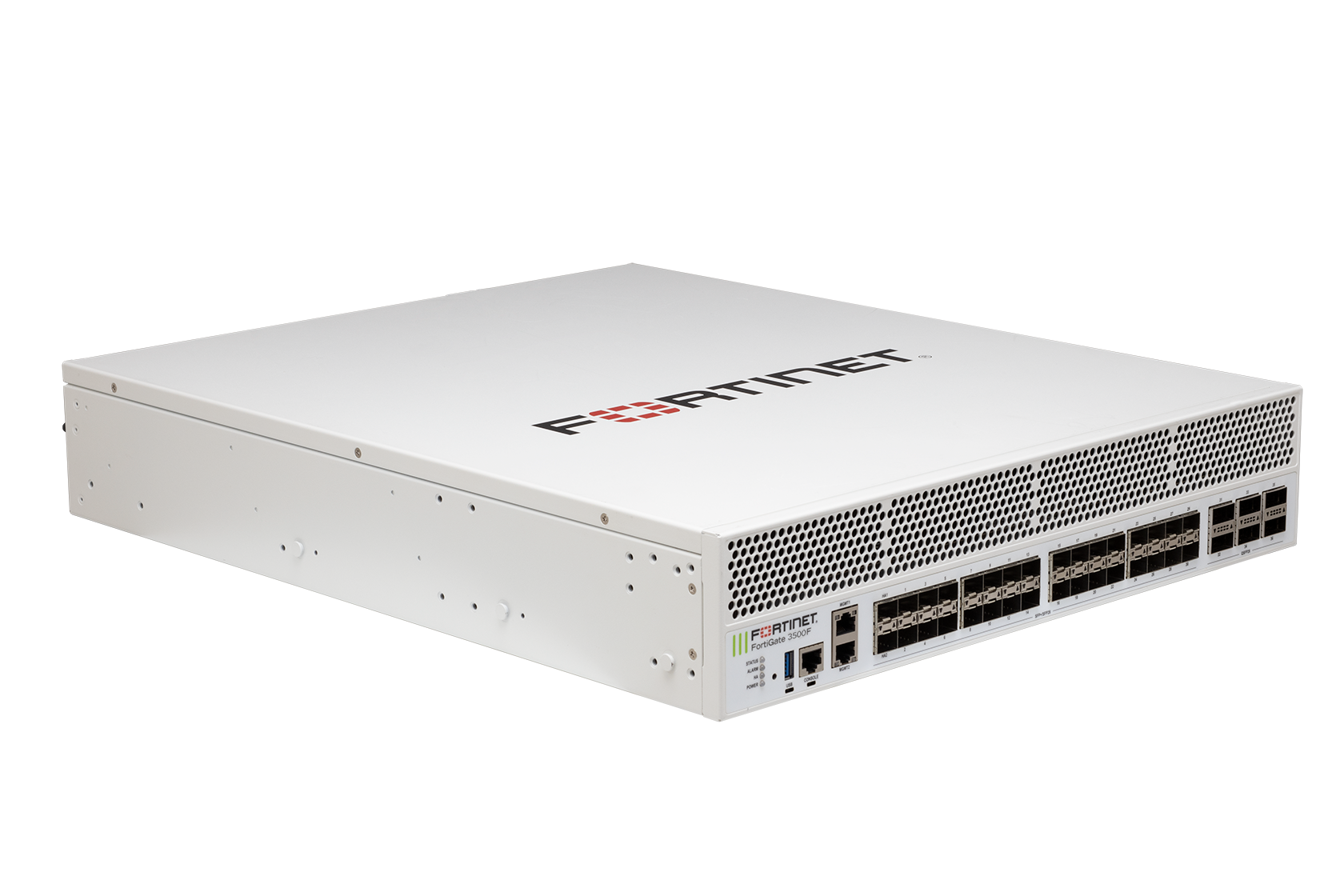

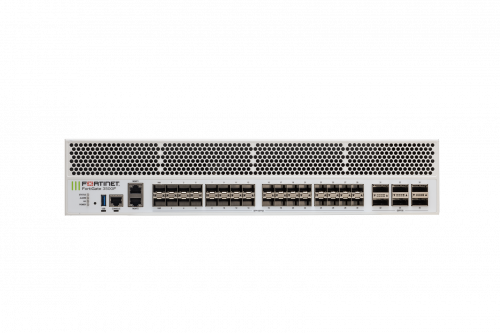

Fortinet FortiGate 3500F security appliance FG-3500F

Fortinet FortiGate 3500F – Security appliance – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN – front to back airflow – 2U – rack-mountable

SKU: FG-3500F~PVAR Categories: , Brand: Fortinet


Description: 6X 100GE/ 40GE QSFP28 SLOTS 32X 25GE/ 10
Fortinet FortiGate 3500F – Security appliance – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN – front to back airflow – 2U – rack-mountable

The FortiGate 3500F series delivers high-performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network’s performance. Fortinet’s SecurityDriven Networking approach provides tight network integration to the new security generation.

Key Selling Points
Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
Provides industry-leading performance and protection for SSL encrypted traffic
Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments
Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility

Additional information

Weight 93.87 lbs
Dimensions 21.9 × 17.4 × 3.5 in

No License, UTP, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years

Product Description Fortinet FortiGate 3500F - security appliance
Device Type Security appliance
Form Factor Rack-mountable
Processor Fortinet FortiASIC CP9/NP7
Performance IPS throughput (enterprise traffic mix): 72 Gbps u00a6 NGFW throughput (enterprise traffic mix): 65 Gbps u00a6 Threat protection throughput (enterprise traffic mix): 63 Gbps u00a6 Firewall throughput (1518-byte UDP): 595 Gbps u00a6 Firewall throughput (512-byte UDP): 590 Gbps u00a6 Firewall throughput (64-byte UDP): 420 Gbps u00a6 IPv6 firewall throughput (1518-byte UDP): 595 Gbps u00a6 IPv6 firewall throughput (512-byte UDP): 590 Gbps u00a6 IPv6 firewall throughput (86-byte UDP): 420 Gbps u00a6 Firewall latency (64-byte UDP): 2.98 u00b5s u00a6 Firewall throughput: 630 Mpps u00a6 VPN throughput (512-bit IPSec): 165 Gbps u00a6 VPN throughput (SSL): 16 Gbps u00a6 SSL inspection throughput: 55 Gbps u00a6 Application control throughput: 135 Gbps u00a6 CAPWAP throughput: 65 Gbps
Capacity Concurrent TCP sessions: 140000000 u00a6 New TCP sessions per second: 1000000 u00a6 Firewall policies: 200000 u00a6 Gateway to gateway IPSec VPN Tunnels: 40000 u00a6 Client to gateway IPSec VPN tunnels: 200000 u00a6 Concurrent SSL VPN users: 30000 u00a6 SSL inspection CPS: 60000 u00a6 SSL inspection concurrent sessions: 15000000 u00a6 Virtual domains: 10 u00a6 Maximum virtual domains: 500 u00a6 Number of FortiSwitches: 300 u00a6 Number of FortiAP devices: 4096 u00a6 Number of FortiAP devices (tunnel): 2048 u00a6 Number of FortiToken devices: 20000
Included Accessories 2 x SR 10Gbps SFP+ transceivers
Power AC 100-240 V (50/60 Hz)
Power Redundancy Yes
Processors Installed Fortinet FortiASIC CP9/NP7

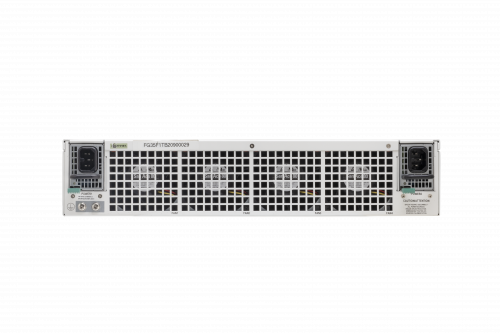

Airflow Direction Front to back airflow
Connectivity Technology Wired
Network / Transport Protocol TCP/IP, UDP/IP, IPSec, SCTP, HTTP, HTTPs, IPv4, IPv6
Remote Management Protocol HTTP, HTTPS
Status Indicators Power, status, alarm, HA
Features VPN support, Trusted Platform Module (TPM), CAPWAP support, SSL inspection, IP tunnel acceleration
Encryption Algorithm SSL, 256-bit AES, 256-bit SHA, TLS 1.3

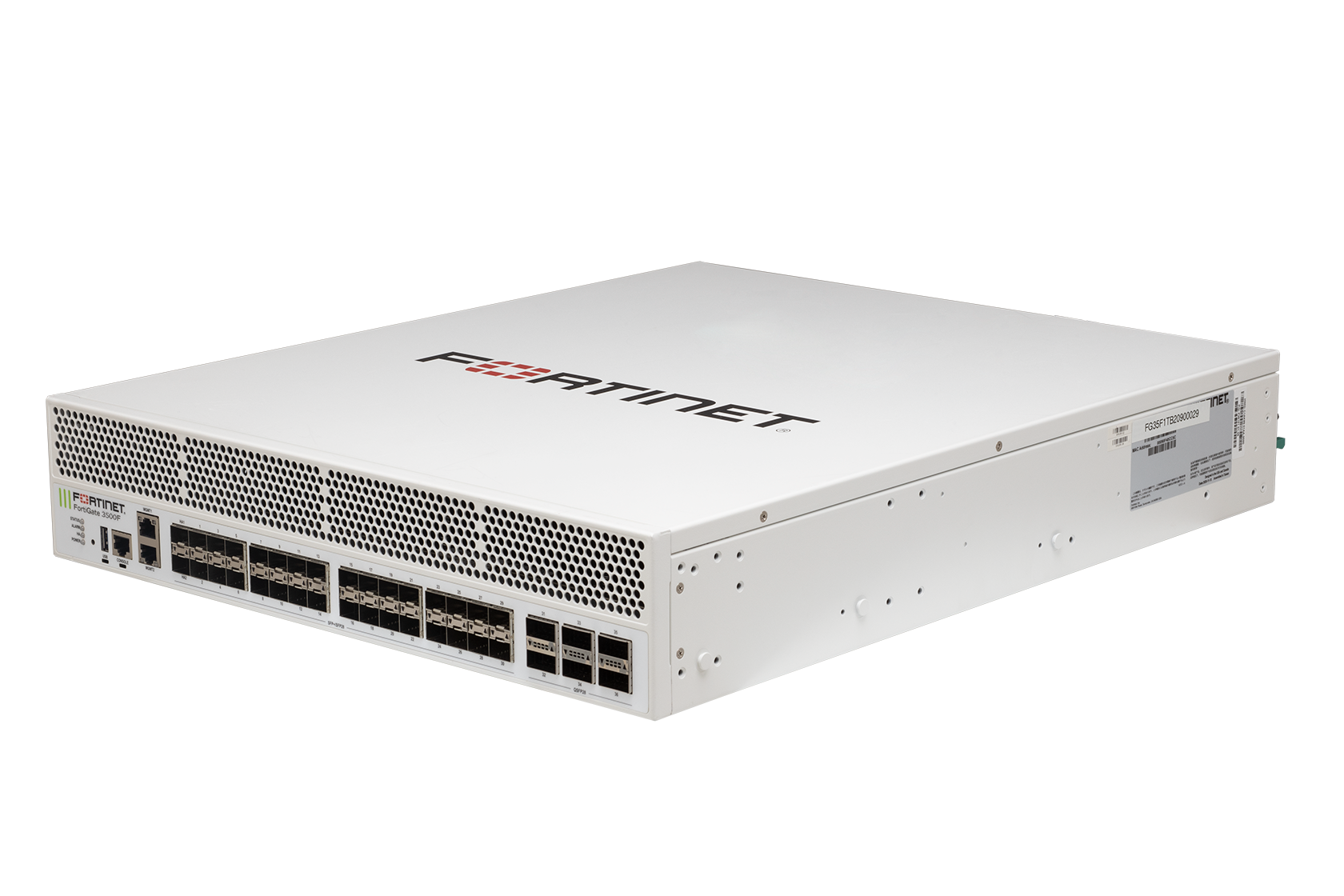

Interfaces 1 x USB 3.0 u00a6 1 x console - RJ-45 u00a6 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45 (WAN) u00a6 2 x 10Gb Ethernet/25Gb Ethernet (HA) - SFP+/SFP28 u00a6 30 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 u00a6 6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
Compliant Standards UL, VCCI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, RCM, ICSA SSL-VPN, ICSA IPS, ICSA IPv6, ICSA USGv6
Power Device Internal power supply - hot-plug
Installed Qty 2
Max Supported Qty 2
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 760 Watt
OS Provided FortiOS
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 20 - 90% (non-condensing)
