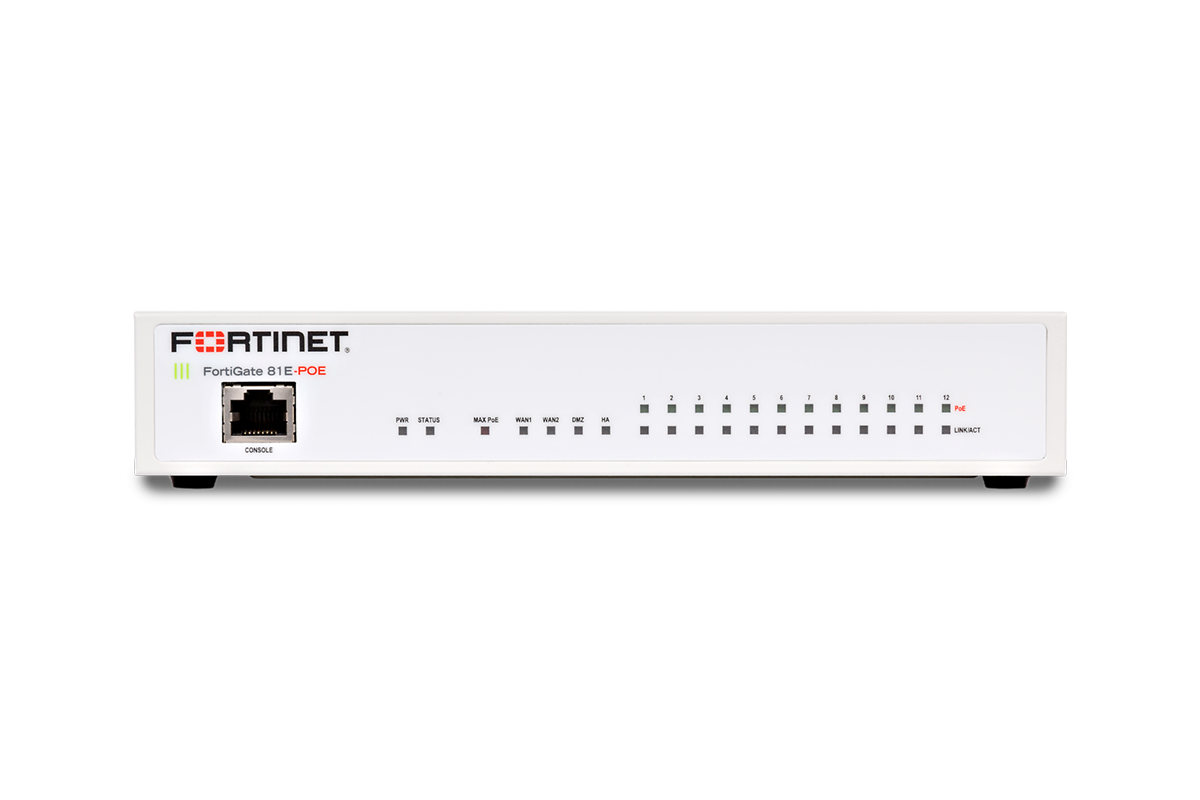

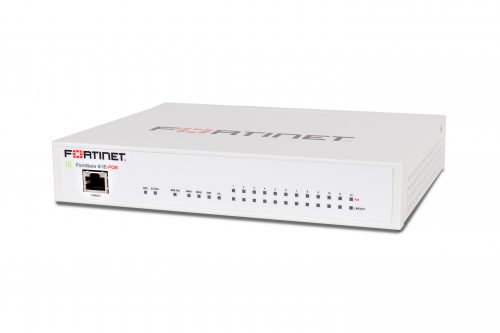

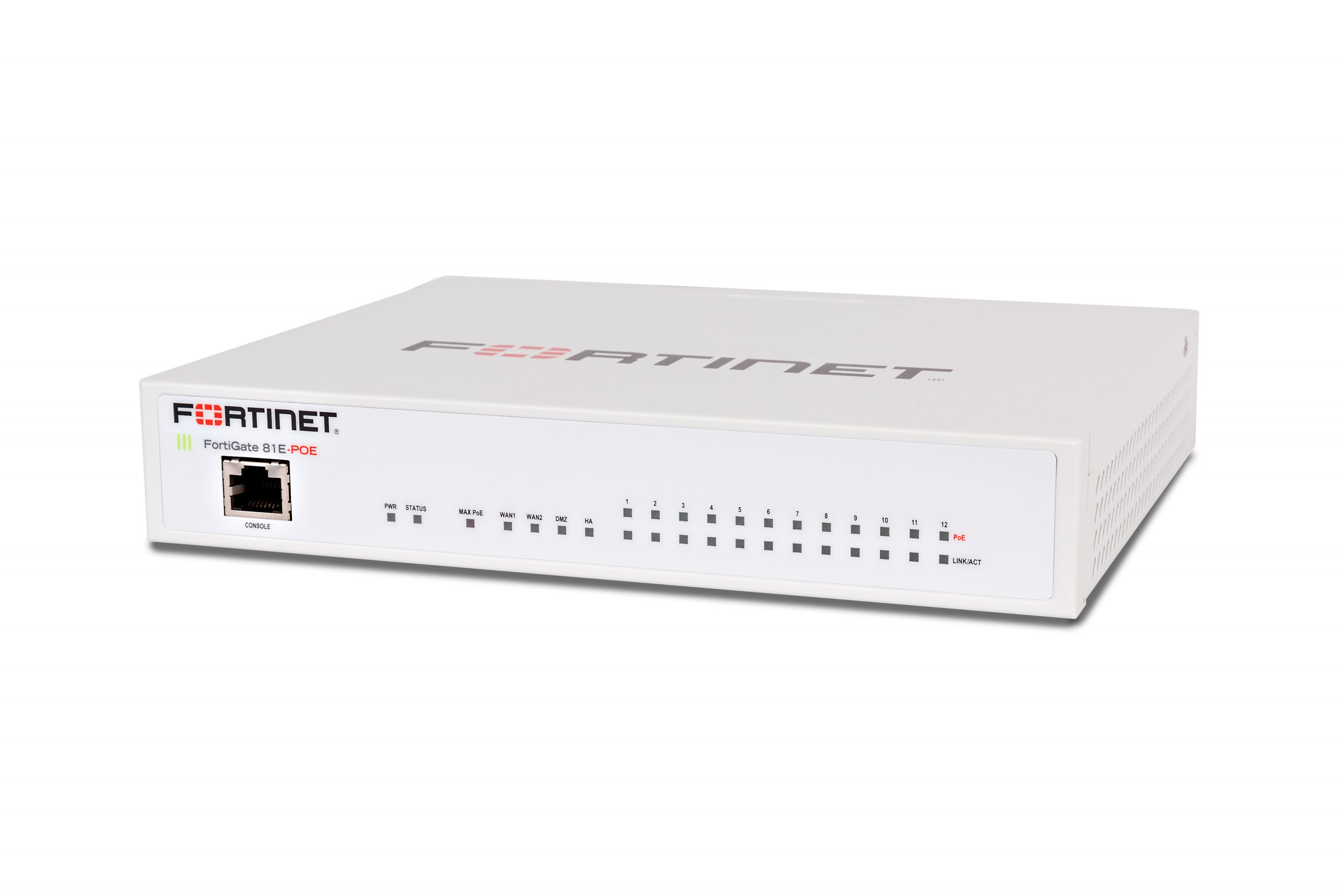

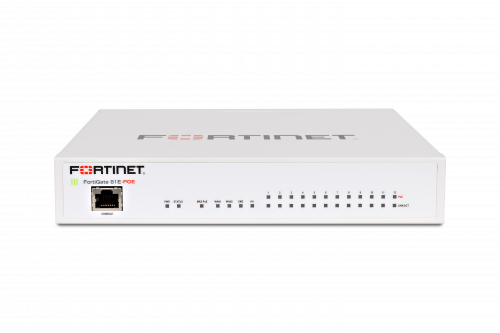

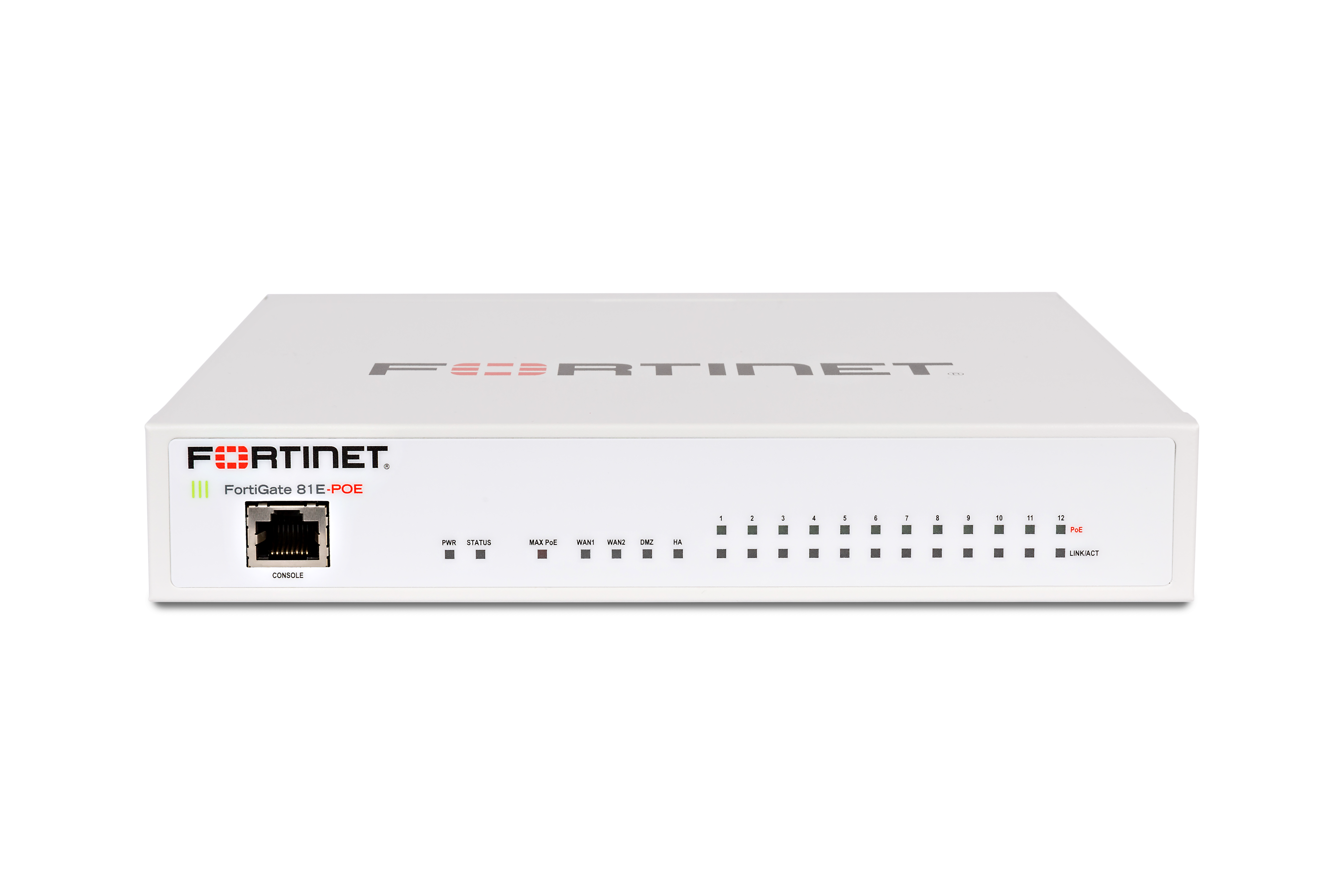

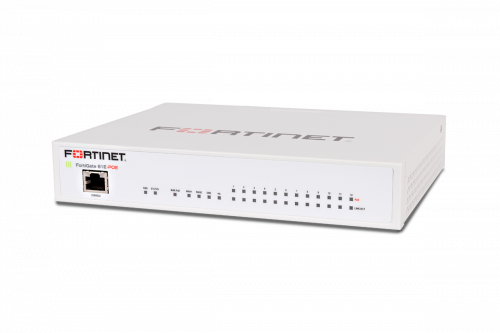

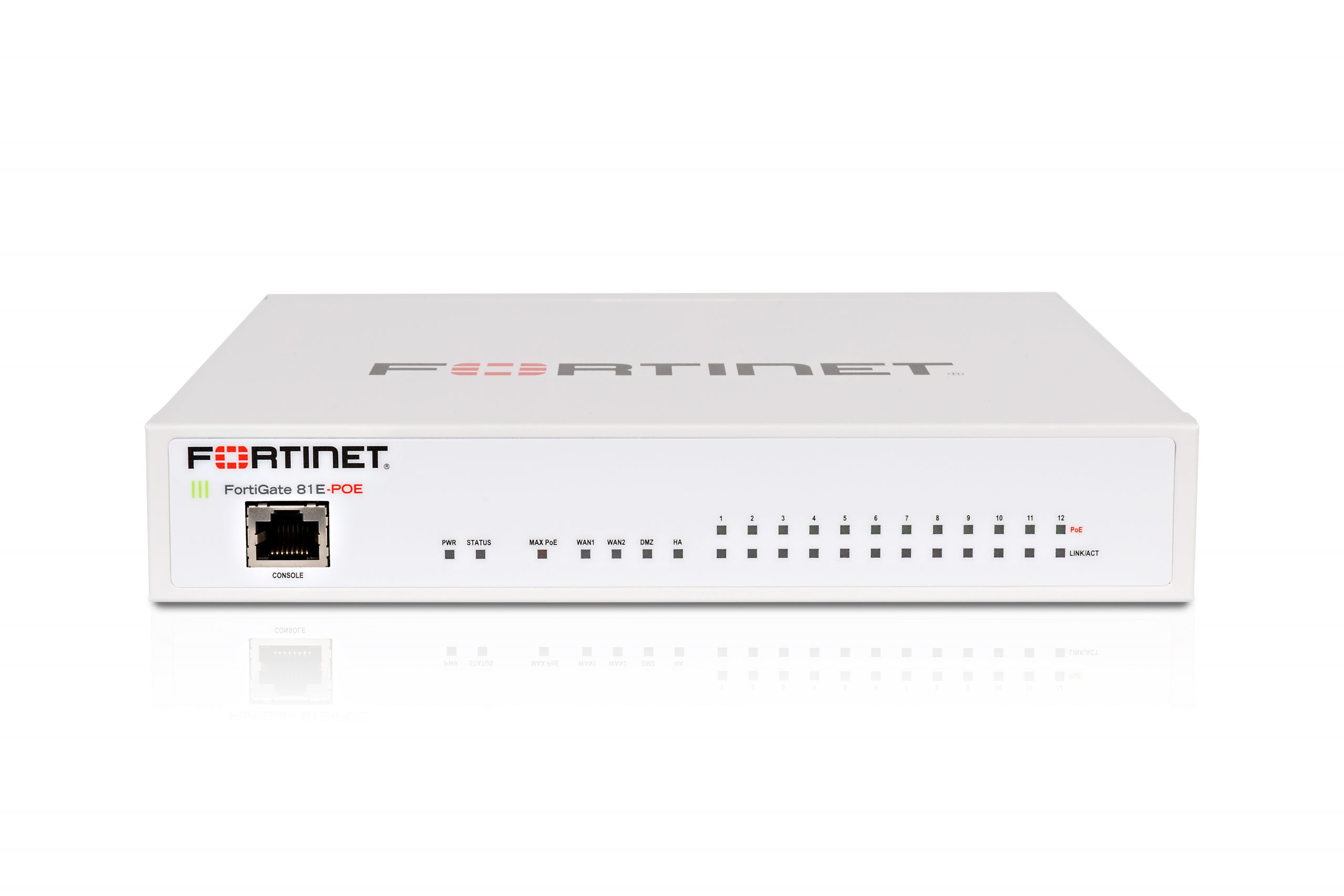

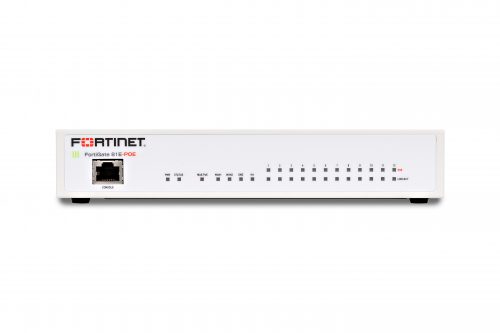

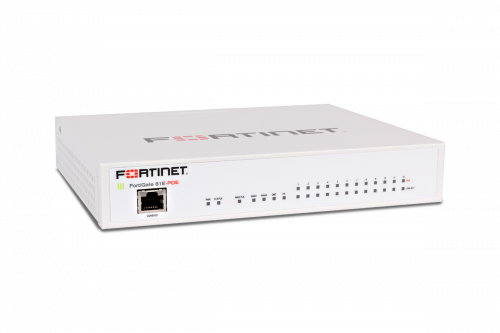

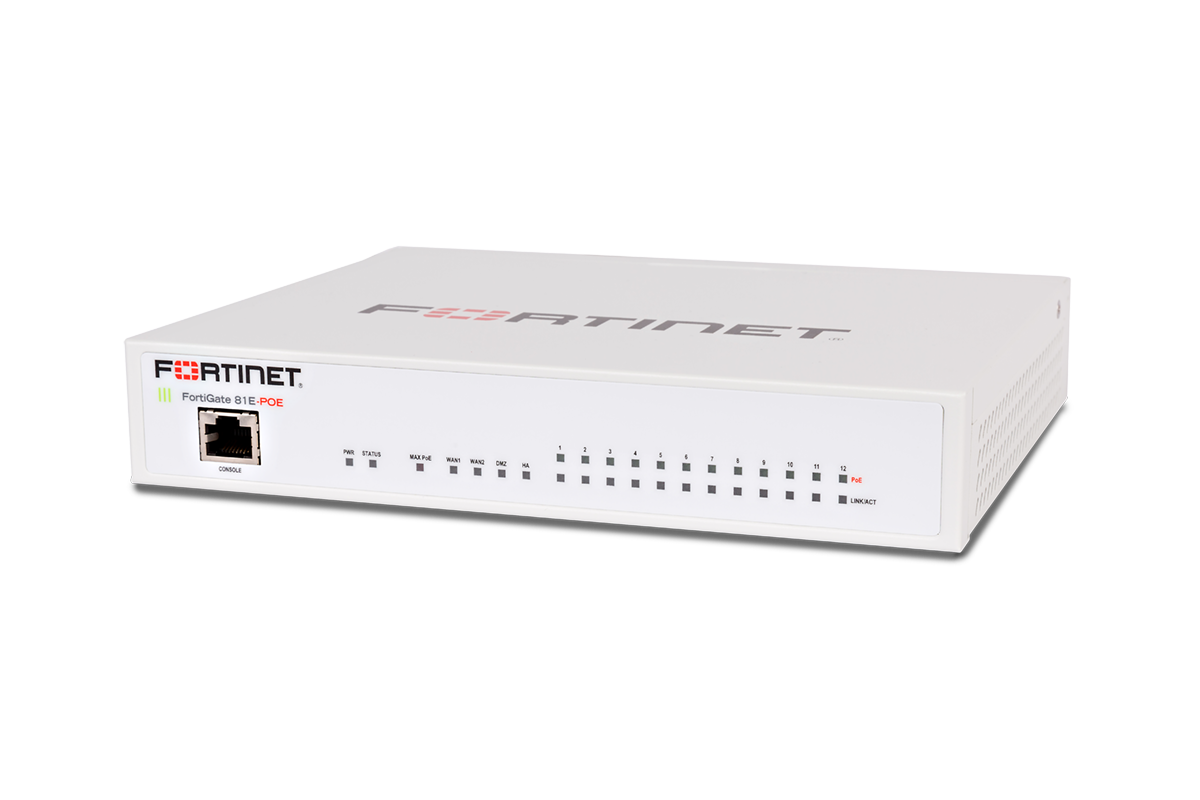

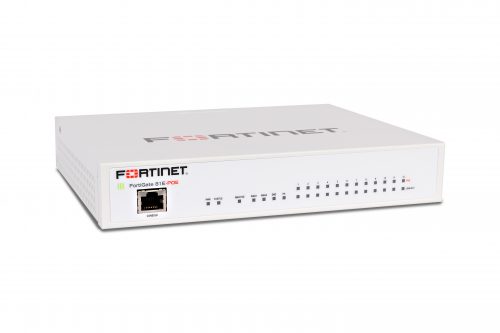

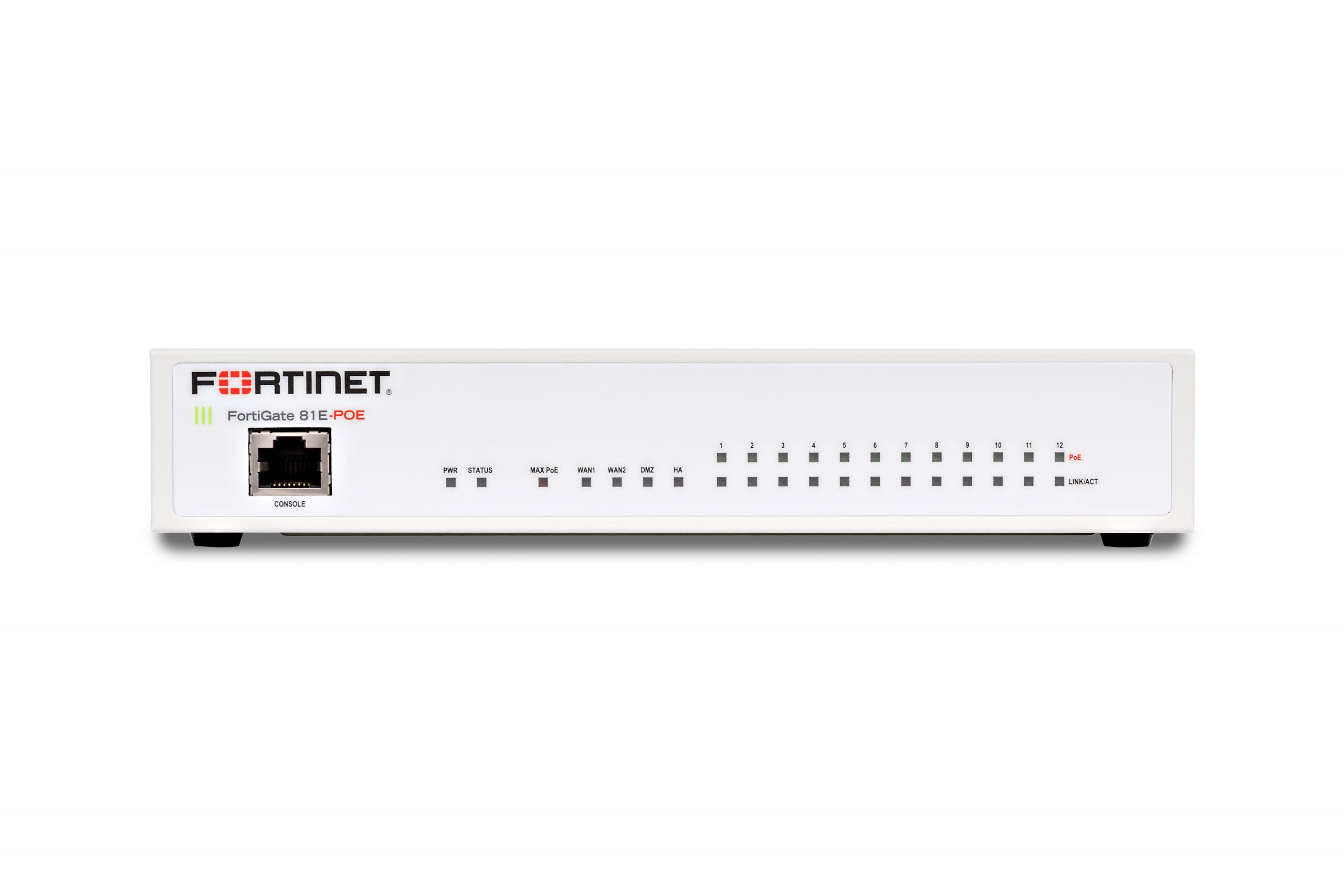

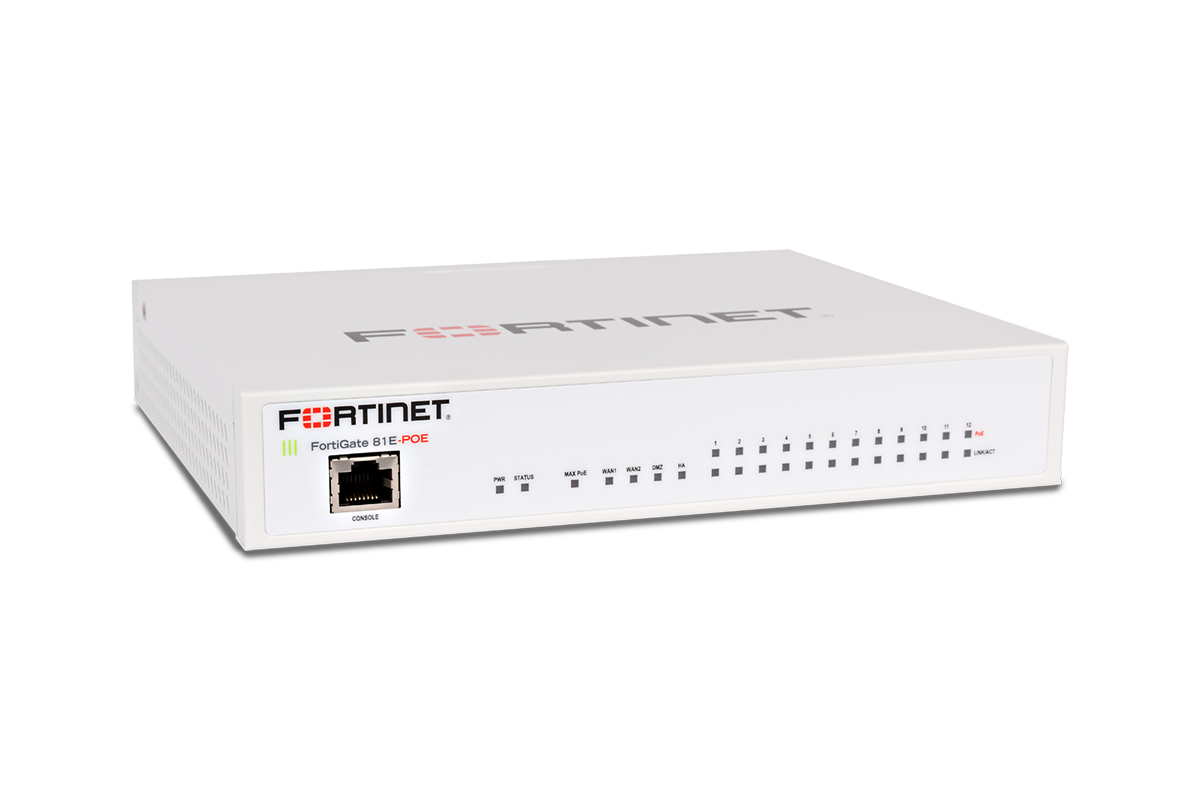

Fortinet FortiGate 81E-POE security appliance FG-81E-POE

Fortinet FortiGate 81E-POE – Security appliance – GigE – desktop

SKU: FG-81E-POE~PVAR Categories: , Brand: Fortinet


Description: 16 X GE RJ45 PT
Fortinet FortiGate 81E-POE – Security appliance – GigE – desktop

The FortiGate offers an excellent network security solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy-to-deploy solution.

Whats in the Box

  • Fortinet FortiGate 81E-POE
  • External power adapter

Key Selling Points

Additional information

Weight 5.194 lbs
Dimensions 7 × 8.5 × 1.7 in

No License, SMB, UTP, 360 Protection, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years

Product Description Fortinet FortiGate 81E-POE - security appliance
Device Type Security appliance
Form Factor Desktop
Processor Fortinet FortiASIC SOC3
Hard Drive 128 GB
Performance Firewall throughput (1518/512/64-byte UDP): 4 Gbps u00a6 IPS throughput: 450 Mbps u00a6 NGFW throughput: 360 Mbps u00a6 Threat protection throughput: 250 Mbps u00a6 Firewall latency (64-byte UDP): 3 u00b5s u00a6 Firewall throughput: 6 Mpps u00a6 VPN throughput (512-bit IPSec): 2.5 Gbps u00a6 VPN throughput (SSL): 200 Mbps u00a6 IPS throughput (HTTP): 1.5 Gbps u00a6 SSL inspection throughput: 180 Mbps u00a6 Application control (AVC) throughput: 900 Mbps u00a6 CAPWAP throughput: 2.2 Gbps
Capacity Concurrent sessions: 1300000 u00a6 New sessions per second: 30000 u00a6 Firewall policies: 5000 u00a6 Gateway to gateway IPSec VPN Tunnels: 200 u00a6 Client to gateway IPSec VPN tunnels: 2500 u00a6 Concurrent SSL VPN users: 200 u00a6 Virtual domains: 10 u00a6 Number of FortiAP devices: 32 u00a6 Number of FortiToken devices: 100 u00a6 Number of FortiClient devices: 200
Power Over Ethernet (PoE) Supported PoE+
Power AC 120/230 V (50/60 Hz)
Processors Installed Fortinet FortiASIC SOC3
Connectivity Technology Wired
Switching Protocol Ethernet
Network / Transport Protocol IPSec
Features Firewall protection, VPN support, High Availability, Intrusion Prevention System (IPS), URL filtering, web threat protection, 3G/4G USB Dongle Support, application filtering

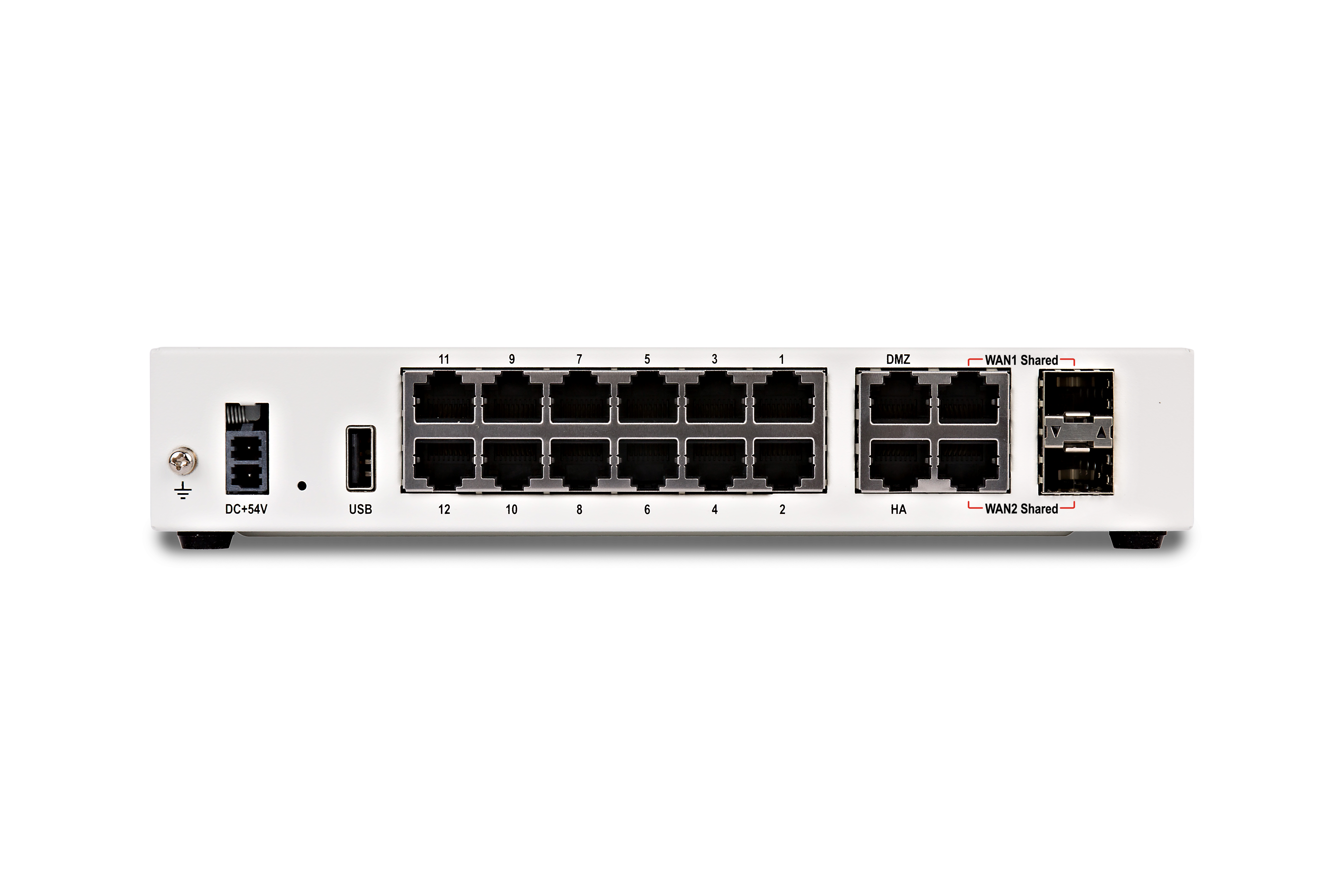

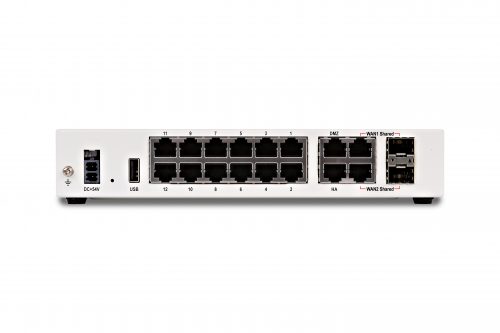

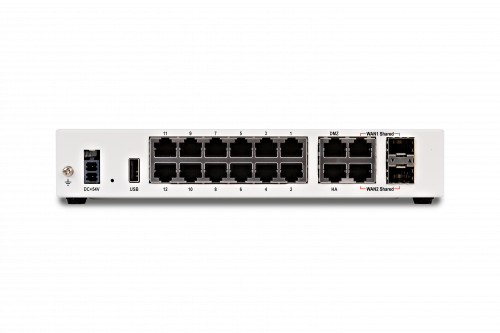

Interfaces 1 x 1000Base-T - RJ-45 u00a6 1 x 1000Base-T - RJ-45 (DMZ) u00a6 12 x 1000Base-T (PoE+) - RJ-45 u00a6 1 x console - RJ-45 u00a6 1 x USB - Type A u00a6 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC)
Compliant Standards UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, RCM, FCC Part 15 Class B, ICSA SSL-VPN, ICSA IPS
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 20 Watt
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 10 - 90% (non-condensing)
