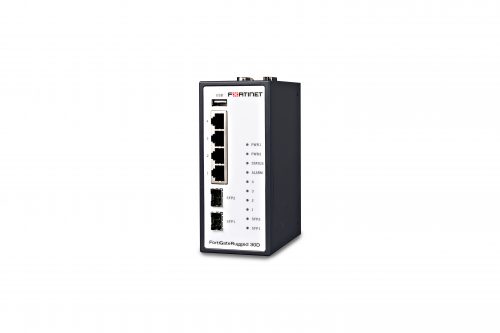

Fortinet FortiGate Rugged 30D / FGR-30D Next Generation (NGFW) Firewall UTM Appliance – (Hardware Only)

Fortinet FortiGate Rugged 30D – Security appliance – GigE – DC power – desktop

SKU: FGR-30D~PVAR Categories: , Brand: Fortinet


While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened, all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.

Ruggedized Protection for Harsh Environments

The ruggedized FortiGate meets all required performance and reliability standards for operating in demanding industrial settings. It was designed from the outset to operate reliably in harsh electrical and environmental conditions, including those with high levels of electrical and radio frequency interference and at wide ambient temperature ranges.

Industrial Network Security

Fortinet’s FortiOS operating system running on the ruggedized platform provides specialized protections for industrial networks such as antivirus and Intrusion Protection (IPS).

Wireless and 3G/4G WAN Extensions

The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.

Compact, Ruggedized and Reliable Form Factor

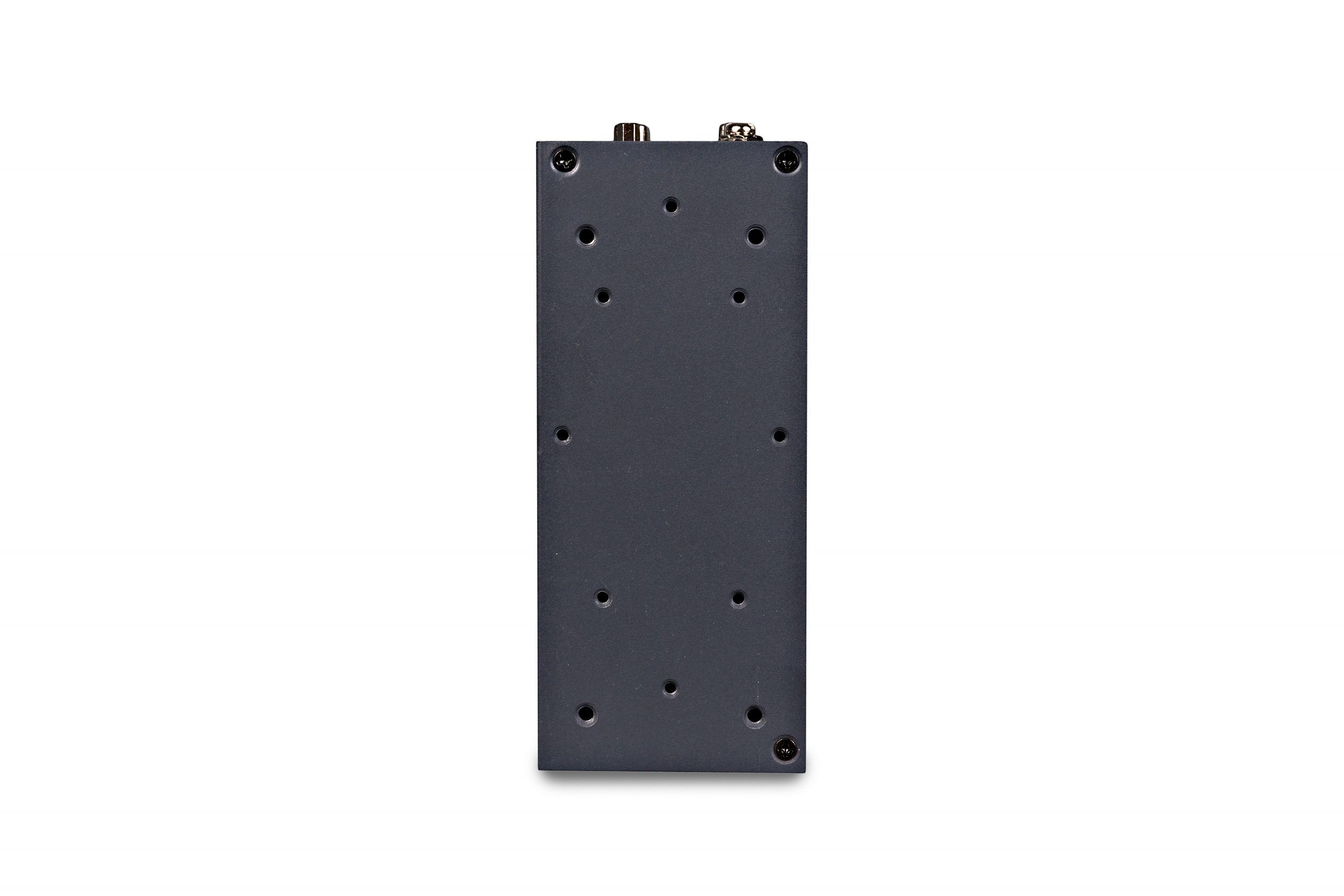

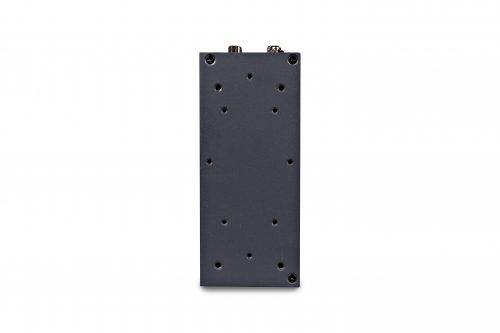

Designed for confined spaces and harsh environments, the ruggedized FortiGate can be mounted within an enclosure, on a wall or on a DIN rail. It is small and lightweight yet highly reliable with superior Mean Time Between Failure (MTBF), minimizing the chance of a network disruption. The hardware components used meet high standards in both EMI and vibration tolerance with a wide thermal operating range supported.

Additional information

Weight 5.6 lbs
Dimensions 2.4 × 4.1 × 5.5 in

No License, UTP, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years

Product Description Fortinet FortiGate Rugged 30D - security appliance
Device Type Security appliance
Form Factor Desktop
Performance Firewall throughput: 900 Mbps u00a6 IPS throughput: 230 Mbps u00a6 Firewall throughput (1518-byte UDP): 900 Mbps u00a6 Firewall latency (64-byte UDP): 70 u00b5s u00a6 Firewall throughput: 87 Kpps u00a6 VPN throughput (512-bit IPSec): 45 Mbps u00a6 VPN throughput (SSL): 25 Mbps
Capacity Concurrent TCP sessions: 750000 u00a6 New TCP sessions per second: 5000 u00a6 Firewall policies: 5000 u00a6 Gateway to gateway IPSec VPN Tunnels: 200 u00a6 Client to gateway IPSec VPN tunnels: 250 u00a6 Concurrent SSL VPN users: 80 u00a6 Virtual domains: 5 u00a6 Number of FortiAP devices: 2 u00a6 Number of FortiToken devices: 20 u00a6 Number of FortiClient devices: 200
Power DC 12/48 V
Connectivity Technology Wired
Status Indicators Port transmission speed, power, status, link/activity
Features Firewall protection, VPN support, manageable, antivirus analysis, High Availability, Intrusion Prevention System (IPS), wall mountable, rugged, DIN rail mountable

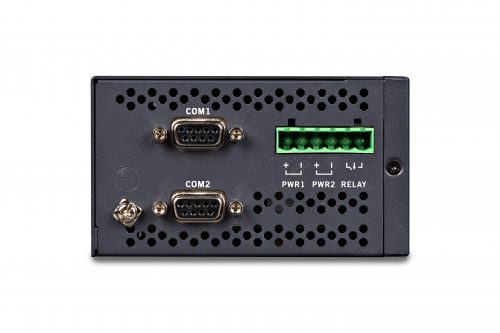

Interfaces 1 x USB - Type A u00a6 4 x 1000Base-T - RJ-45 u00a6 2 x Ethernet 1000 - SFP (mini-GBIC) u00a6 2 x console - DB-9
Compliant Standards UL, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Intrusion Detection, ICSA Antivirus, CB, EMC, FCC Part 15 A, IEC 61850-3, IEEE 1613
Power Device Internal power supply
Voltage Required DC 12/48 V
Power Consumption Operational 15.55 Watt
Min Operating Temperature -40 u00b0F
Max Operating Temperature 158 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
