Panorama Antennas Low Profile 2G/3G/4G Antenna With WiFi And GPS
Designed to be light in weight and easy to install.
Offers up to 6 dBi gain.
Widely used in cellular network.
Rugged Low Profile Design.
Wideband LTE-Cellular Element.
2×2 MiMo 2.4 & 4.9-6GHz Wifi/WIMAX.
Integrated GPS/GNSS/BEIDOU antenna.

SKU: LGEM-7-27-24-58 Category: Brand: Panorama

Description

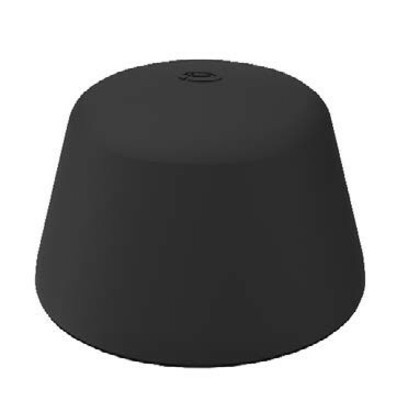

Panorama Antennas Low Profile 2G/3G/4G Antenna With WiFi And GPS

The LG[P]E antenna series is a range of low profile antennas incorporating a combination of a wideband cellular element covering 2G/3G and 4G frequencies along with an active GPS/GNSS/BEIDOU patch with 26dB LNA gain and two dual band WIFI elements for 2×2 MiMo operation all in a robust compact housing.

Designed to be tough yet cost effective the antennas are completely enclosed in a moulded housing made from weather and impact resistant plastic. The range is supplied with short fly leads and can be kitted with Panorama Antennas’ low loss extension cables in various lengths

Additional information

Weight 1.4 lbs
Dimensions 6.00 × 5.00 × 2.76 in
Application/Usage Cellular Network, Wireless Data Network, GPS, GLONASS
Package Contents Low Profile 2G/3G/4G Antenna With WiFi And GPS, Short Fly Leads,
Product Type Antenna
Manufacturer Part Number LGEM-7-27-24-58
Manufacturer Website Address http://www.panorama-antennas.com
Connector Type SMA, FME
Form Factor Panel
Manufacturer Panorama Antennas Ltd
Product Name Low Profile 2G/3G/4G Antenna With WiFi And GPS
Brand Name Panorama Antennas
Diameter 4.53"
Antenna Gain 6 dBi
Product Color Black
Operating Frequency Range 1560 MHz to 1612 MHz, 698 MHz to 960 MHz, 1700 MHz to 2700 MHz, 2.4 GHz, 4.9 GHz to 6 GHz
UNSPSC 43221706
