Panorama Antennas Low Profile MiMo WiFi Antenna1562 MHz to 1612 MHz, 2.4 GHz to 2.5 GHz, 4.9 GHz to 6 GHz, 2.4 GHz, 5 GHz26 dB -… LPM2W-24-58-5RPSP

Please request a quote

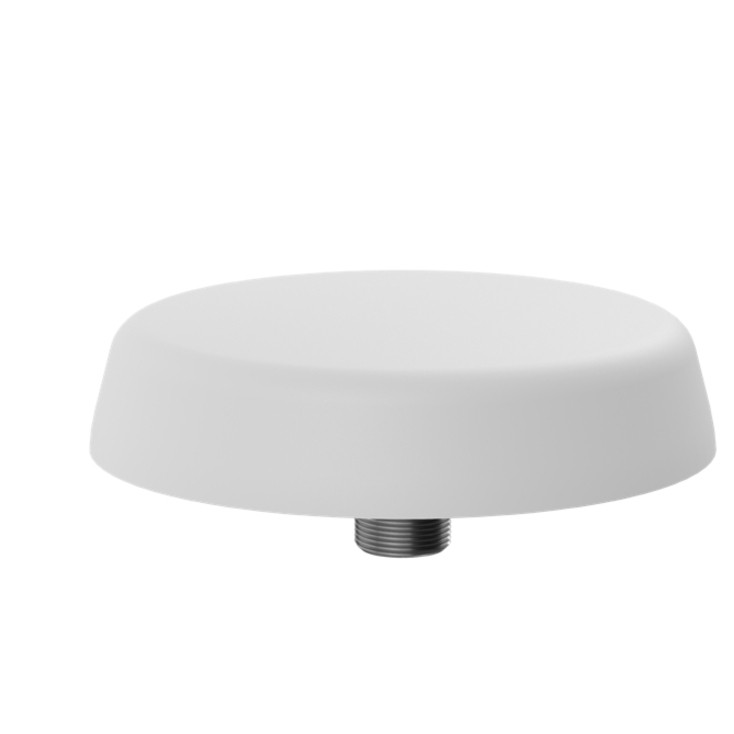

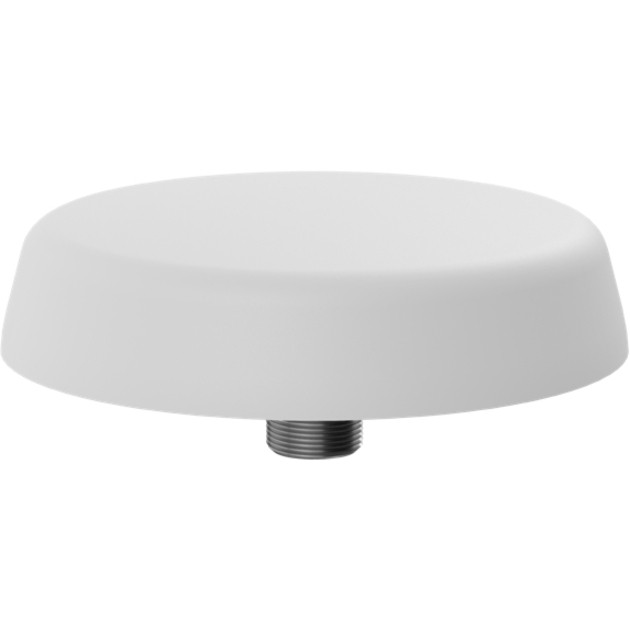

Panorama Antennas Low Profile MiMo WiFi Antenna
Receive signals from multiple directions with this omnidirectional antenna.
Panel-mountable design for mounting convenience.
Provides gain of up to 26 dB.
Dramatically enhance the performance of wireless data network with this antenna.

SKU: LPM2W-24-58-5RPSP Categories: , , Brand: Panorama


Panorama Antennas Low Profile MiMo WiFi Antenna

The L[G]M2-24-58 range has been designed to provide MiMo dual-band WiFi coverage in an ultra low profile package. The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz.

  • Ultra Low Profile
  • Up to 2 x 2 MiMo Dual Band WiFi
  • Optional GPS/GNSS
  • Meets IP69K and IK10
  • Available in Black or White
  • 5m Flame Retardant CS32 cables with Reverse Polarity SMA Plugs

The antenna is designed to be panel mounted on vehicles or devices and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.

The LP[G]M variants have an integrated GPS/GNSS module with 26dB LNA gain. The antenna is available with a black or white radome.

Additional information

Weight 1.4 lbs
Dimensions 8.00 × 4.00 × 1.18 in
