Startech .com 4K HDMI over IP Receiver for ST12MHDLAN4KVideo Over IP Extender with Support for Video Wall4KUse this 4K receiver wit… ST12MHDLAN4R

$356.24

StarTech.com 4K HDMI over IP Receiver for ST12MHDLAN4K – Video Over IP Extender with Support for Video Wall – 4K
Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension.
Astonishing picture quality over IP with support for 4K at 30Hz resolution.
Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser).
Tidy, professional installation using the included mounting hardware.
Connect using a Gigabit LAN network.
Easy point-to-point or point-to-multipoint setup.
Extend HDMI using existing network infrastructure.
Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension.
Astonishing picture quality over IP with support for 4K at 30Hz resolution.
Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser).
Tidy, professional installation using the included mounting hardware.
Connect using a Gigabit LAN network.
Easy point-to-point or point-to-multipoint setup.
Extend HDMI using existing network infrastructure.

SKU: ST12MHDLAN4R Categories: , Brand: Startech

Description

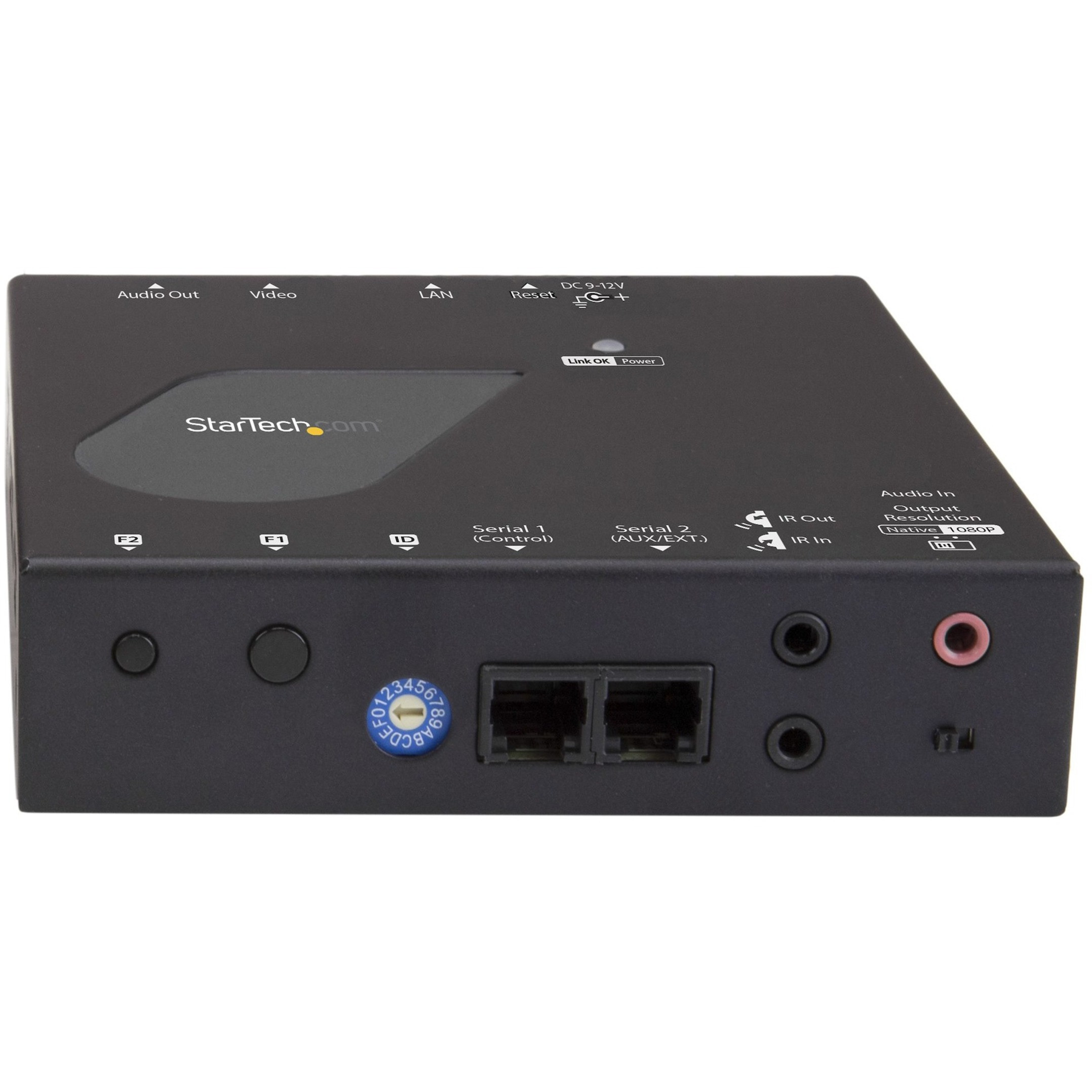

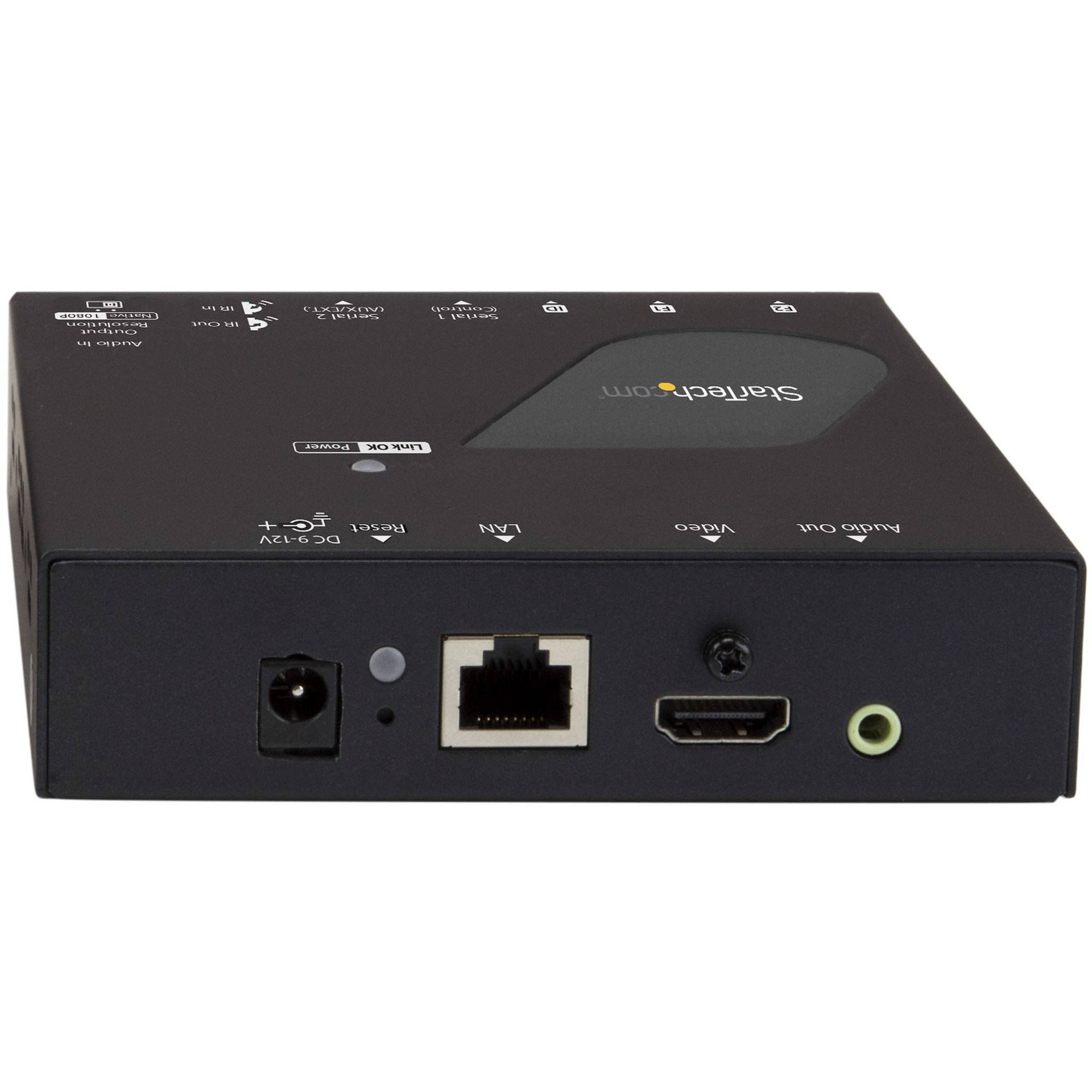

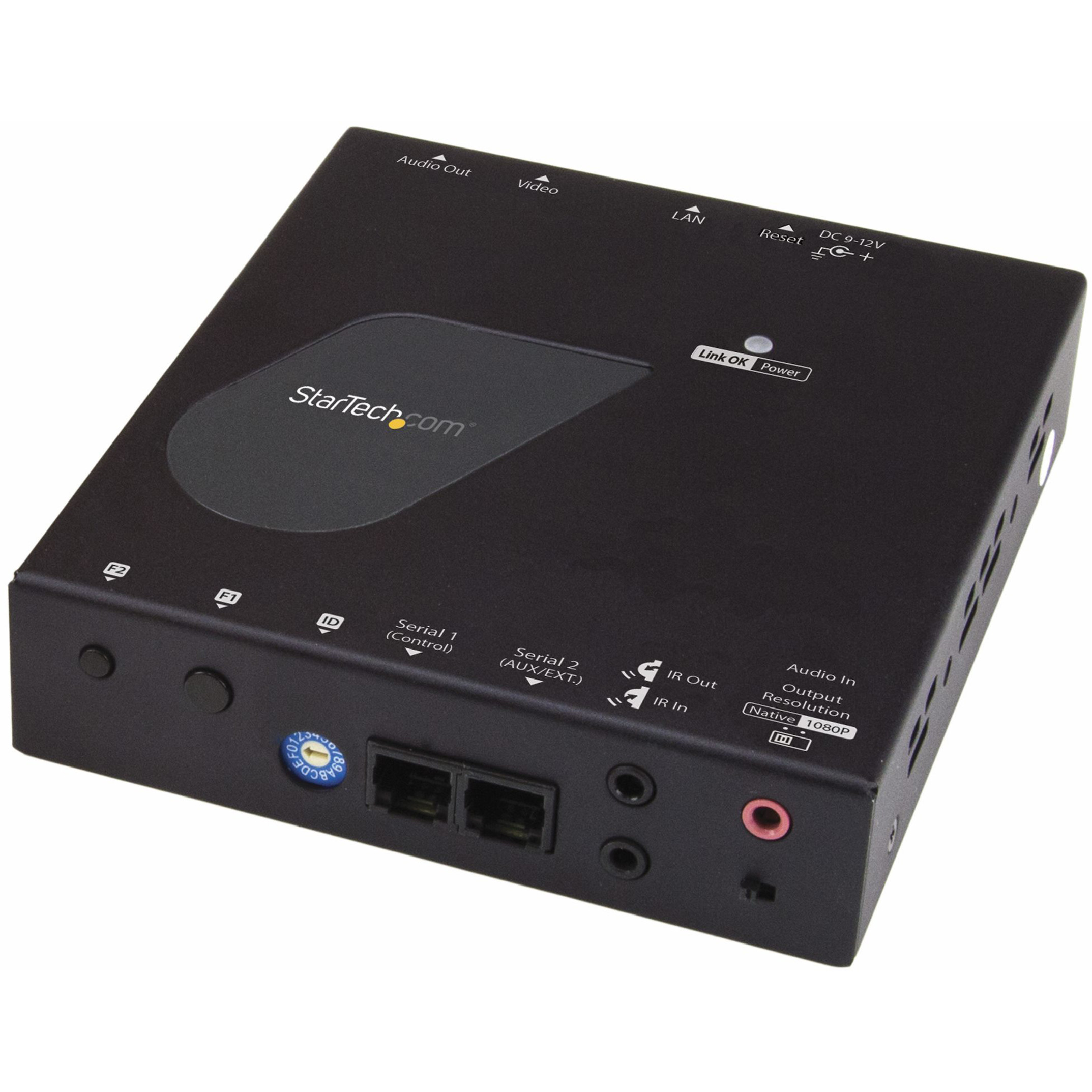

StarTech.com 4K HDMI over IP Receiver for ST12MHDLAN4K – Video Over IP Extender with Support for Video Wall – 4K

This 4K HDMI® over IP receiver works with the 4K HDMI over IP Extender Kit(sold separately) and lets you extend a 4KHDMI signal, as well as RS-232 peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI signal to multiple locations, each with 4K support, and combine your remote displays to create a video wall.

The IP receiveralso features RS-232 extension which enables you to add a remote serial operated device at your video source or each remote display. This HDMI over IP extender is the perfect solution for combining a serial-operated touchscreen with your display or videowall, to create interactive digital signagepresentations.

Extendedscalability

You can addmultiple receivers toyour HDMI over IP extender kit to create apoint-to-multipoint setup or video wall. In theseconfigurations, you can also add additional sources (transmitters) with even more displays (receivers) over your Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 total (transmitters) and as many receivers (displays) as your network bandwidth can support.

The extender also features a separate 3.5 mm audio source that enables you to switch between the native HDMI audio and a separate 3.5 mm audio source, so you can distribute a single audio source to multiple remote locations over IP (also requires a Gigabit Ethernet switch with IGMP).

Ultra HD 4K resolution at 30Hz

This HDMI over IP kit uses H.264 compression to deliver astonishing 4K UHD video to your remote 4Kdisplays over an IP connection. With support for 4K, you can achieve an output resolution of up to 3840 x 2160p at 30Hz, which enables you toextenda 4Kvideo source to multiple remote locations — perfect for digital signage or entertainment video distribution throughout large buildings such as schools, hospitals, shopping centers or areas.

The extenderis backward compatible with lower resolutions such as 1080p or 720p, making it great for lower resolution applications while future-proofing your infrastructure for 4K implementation.

Manage your video distribution from your mobile device

This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation that’s sure to catch your audience’s attention.

The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™browser.

Professional, cost-effective,simpleinstallation

The HDMI over IPextender kit includes optional slot shelf mounting hardware for a tidy installation. Plus, because the extender uses standard non-proprietary CAT5e or CAT6 Ethernet cable with RJ-45 connectors, it eliminates both the expense and hassle of running specialized cables.

The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.

Download the StarTech.com Video Control software to manage your IP video distribution.

The ST12MHDLAN4R is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

Additional information

Weight 4.2 lbs
Dimensions 297.00 × 210.00 × 65.00 in

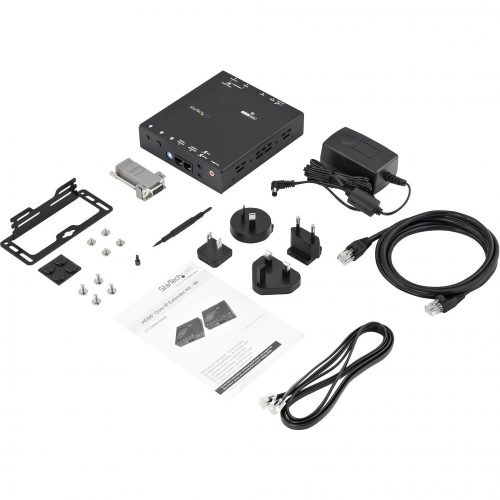

Package Contents 4K HDMI over IP Receiver for ST12MHDLAN4K, 1 x Universal Power Adapter (NA, EU, UK, ANZ), 1 x Mounting Bracket, 1 x CAT5 Cable, 1 x RJ11 to RS232 Adapter, 1 x RJ11 Cable, 1 x Plastic Screwdriver, 1 x Quick-Start Guide,
Product Type Video Extender Receiver
Manufacturer Part Number ST12MHDLAN4R
Manufacturer Website Address http://www.startech.com
Limited Warranty 2 Year
Connectivity Technology Wired
Form Factor Rack-mountable
Manufacturer StarTech.com
Product Name 4K HDMI over IP Receiver for ST12MHDLAN4K
Brand Name StarTech.com
Country of Origin Taiwan
Graphics Modes 4K
Environmentally Friendly Yes
Environmental Certification RoHS, WEEE, REACH
Maximum Video Resolution 3840 x 2160
Twisted Pair Cable Standard Category 5e
Maximum Operating Distance 328.08 ft
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of HDMI Outputs 1
HDMI Out Yes
Media Type Supported Twisted Pair
Number of Output Devices Supported 1
Receiver Height 1.20"
Receiver Width 4.60"
Receiver Depth 5.20"
Receiver Weight (Approximate) 1.31 lb
TAA Compliant Yes
Product Color Black
GTIN 0065030868969
UPC 065030868969
EAN 0065030868969
UNSPSC 43201614
