Description
Description: 0.5M PASSIVE DAC COP INFINIBAND CBL

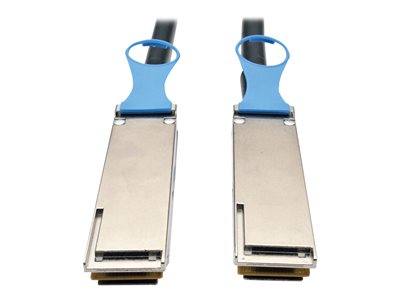

Tripp Lite 0.5M QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable 20″ – InfiniBand cable – QSFP28 (M) to QSFP28 (M) – 1.6 ft – SFF-8665/IEEE 802.3bj – passive – black
The N282-20N-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It’s ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This half-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position “board-as-connector” design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.
Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-20N-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It’s fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
Whats in the Box
- N282-20N-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 0.5 m (20 in.)
Key Selling Points
Combines four 28 Gbps SFP channels into single high-density cable
Ideal for data centers, high-end servers and enterprise wiring closets
Multi-platform support for 128G Fibre Channel and EDR InfiniBand
Lower port cost and power budget when compared to fiber optics
100 GbE 38-position “board-as-connector” design
Zinc die-cast male QSFP+ connectors for superior EMI resistance
Ergonomic pull-tab ejectors for quick, easy connections
8-pair wire technology optimized for bandwidth-intense applications
Flexible 26 AWG conductors maintain smooth high-frequency response
Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards
Complies with IEEE 802.3bj and RoHS
Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture
Compatible with all QSFP and QSRP+ ports
