Description
Description: 24 FIBER MTP MPO TO X6 12 OM4 MTP MPO

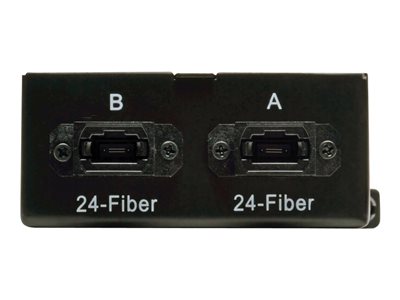

Tripp Lite 2 x 24 Fiber MTP/MPO to 6 x 12 Fiber MTP/MPO Breakout Cassette – Fiber optic cassette – MTP/MPO X 6 – black
Tripp Lite’s N482-2M24-6M12 is a High Density 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber, OM4, MTP/MPO connections. For use with Tripp Lite’s N482-01U and N482-02U High Density Fiber Enclosure Panels; up to 5 cassettes per N482-01U, or up to 14 cassettes per N482-02U. Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Max insertion loss of 0.35dB. Constructed of heavy-duty steel housing.
Whats in the Box
- N482-2M24-6M12 100/120Gb to 40Gb Breakout Cassette – (x2) 24-Fiber MTP/MPO to (x6) OM4 MTP/MPO
- Quick Start Guide
Key Selling Points
High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels
100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber OM4 MTP/MPO connections
Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
Guaranteed compatibility when used with recommended Tripp Lite cabling
Designed specifically for use with Tripp Lite cables, such as the N844- and N846-Series cables
Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required.
Factory terminated connectors reduce the time and labor required of field connector terminations
Max insertion loss of 0.35dB
Constructed of heavy-duty steel housing
