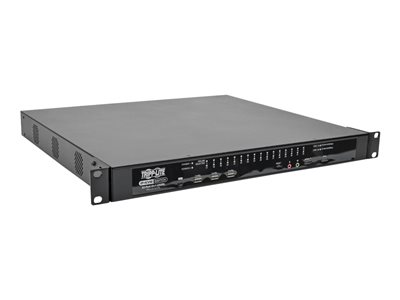

Tripp Lite 32-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA KVM switch 32 ports TAA Compliant B064-032-02-IPG

$6,080.00

Tripp Lite 32-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA – KVM switch – CAT5 – 32 x KVM port(s) – 1 local user – 2 IP users – desktop – TAA Compliant

SKU: B064-032-02-IPG Categories: , Brand: Tripp Lite

Description

Description: 32PT KVM SWCH CAT5 IP 2+1 USER TAA GSA
Tripp Lite 32-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA – KVM switch – CAT5 – 32 x KVM port(s) – 1 local user – 2 IP users – desktop – TAA Compliant

Tripp Lite’s 32-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1920 x 1200 @ 60Hz – 24 bit color depth for the local console; up to 1920 x 1200 @ 60Hz with 24 bit color depth for remote sessions at up to 164 ft. (50 m). A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support, dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit’s cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.

Whats in the Box

  • Tripp Lite 32-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA
  • Keyboard / mouse / video cable
  • Serial adapter
  • Rack mounting kit

Key Selling Points
Up to 3 users (1 Local, 2 Remote) can simultaneously access the connected computers/servers
Features two RJ45 network ports for redundant or dual-IP operation
Includes both DVI and VGA console ports for connection of either a DVI or VGA monitor
High video resolution: up to 1920 x 1200 @ 60Hz – 24 bit color depth for the local console; up to 1920 x 1200 @ 60Hz with 24 bit color depth for remote sessions at up to 164 ft. (50 m)
Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols
Blade server support
Multi-level authentication; Super Administrator, Administrator and User
Advanced encryption technologies – 1024 bit RSA; 56 bit DES; 256 bit AES and 128 bit SSL
Supports FIPS 140-2 level 1 security standards
View multiple ports at the same time using the panel array mode feature
Virtual Media allows computers connected to the KVM using a B055-001-USB-V2 SIU to access DVD/CD drives, flash drives and other storage media from a user’s remote computer as if it were directly connected
An additional three USB ports are located on the front of the KVM for the sharing of USB peripherals.
Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch.
Remote authentication support; RADIUS, LDAP, LDAPS and Active Directory
Track critical events on the installation via email notification, SNMP traps, Windows-based Log Server or Syslog server
Dual power supplies allow the unit to continue running in the event one power supply ceases to receive power
Built-in sensors increase/decrease the speed of the unit’s cooling fans according to the temperature
Dial-in / Dial-out modem support
Graphical OSD can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese
Features an on-screen keyboard with numerous language formats
Supports 10Base-T, 100Base-T, 1000Base-T, Auto-Sense, TCP/IP, HTTP, DNS, DHCP, UDP, ARP and Ping
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Compatible with all major operating systems
Constructed of heavy-duty steel housing

Additional information

Weight 30.18 lbs
Dimensions 580 × 540 × 160 in
