Description
Description: 3M PASSIVE DAC COP INFINIBAND CBL

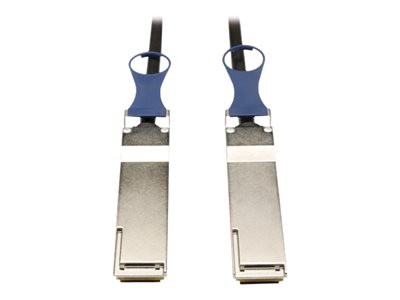

Tripp Lite 3M QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable QSFP-H40G-CU3M Compatible 10ft – Ethernet 40GBase-CR4 cable – QSFP+ (M) to QSFP+ (M) – 10 ft – SFF-8436/IEEE 802.3ba – black
Tripp Lite’s 3m QSFP+ (QSFP Plus) 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position “board-as-connector” design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 30 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 3m (9.84-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports.
Whats in the Box
- 3 Meter, QSFP+ to QSFP+ High Speed Passive Copper 40GB Cable
Key Selling Points
3 Meter QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable
Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards
QSFP+ to QSFP+ 30AWG SFF-8436 compliant cable and connector
Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate )
Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET
Zinc die-cast QSFP+ connectors with “Pull-to-Release” latching
Fully compliant to latest QSFP+ MSA ( Multi Source Agreement )
Lower port cost and reduced power budget vs Fiber Optics
RoHS, SFF-8436, and IEEE 802.3ba Compliant
BER better than 10¹²
