Sale!

Tripp Lite 8-Port Rack Console KVM Switch built in IP w/ 19″ LCD 1U KVM console 19″ B020-U08-19-IP

Original price was: $4,160.00.Current price is: $3,952.00.

Tripp Lite 8-Port Rack Console KVM Switch built in IP w/ 19″ LCD 1U – KVM console with KVM switch – 8 ports – 19″ – rack-mountable – 1280 x 1024 @ 75 Hz – VGA – black – 1U

SKU: B020-U08-19-IP Categories: , Brand: Tripp Lite

Description

Description: 8PT CONS IP KVM SWCH 1URM W/ 19IN LCD TA
Tripp Lite 8-Port Rack Console KVM Switch built in IP w/ 19″ LCD 1U – KVM console with KVM switch – 8 ports – 19″ – rack-mountable – 1280 x 1024 @ 75 Hz – VGA – black – 1U

Tripp Lite’s B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
The B020-U08-19-IP has a built-in 19″ LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.
This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

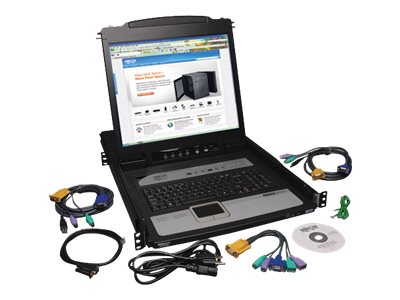

Whats in the Box

  • Tripp Lite 8-Port Rack Console KVM Switch built in IP w/ 19″ LCD 1U
  • 2 x keyboard / mouse / video / USB cable – 1.8 m
  • Serial cable
  • Rack mounting kit

Key Selling Points
Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium
Mounts into 19”-wide rack, 26”-38” deep
Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet
Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping
Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
Panel array mode lets you monitor multiple ports at same time
Supports RADIUS and LDAP/S authentication
Auto-scan mode automatically sequences through all active ports accessible to the user
Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation
Log server tracks events on your installation
Extra-wide display makes multitasking easier
Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200
DDC emulation allows for optimal output to the LCD
Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
Allows up to 64 user accounts, with 3 levels of access
Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
Compatible with all major operating systems for easy integration into existing structure
Firmware is upgradable so your software remains up-to-date
Heavy-duty steel housing stands up to frequent use

Additional information

Weight 46.08 lbs
Dimensions 840 × 675 × 135 in
