Description
Description: DVI OVER CAT5 PASSIVE EXT REM UNIT TAA/G

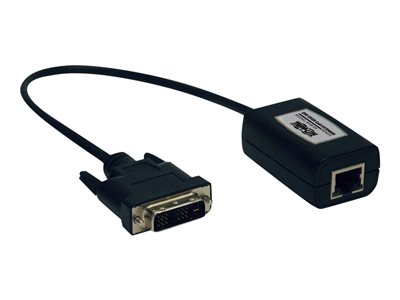

Tripp Lite DVI Over Cat5/Cat6 Passive Video Extender Remote Video Receiver 100′ – Video extender – receiver – over CAT 5/6 – up to 99 ft
The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 30.5 m (100-ft.) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite’s N202-Series). The B140-1P0 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required.
Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1P0’s built-in DVI connector to a display. Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 15 m (50-ft.) from the source, or a 1024 x 768 @ 60Hz signal up to 30.5 m (100-ft.).
