Description: MICRO DATAC 40U 3000VA UPS PDU 42U RACK

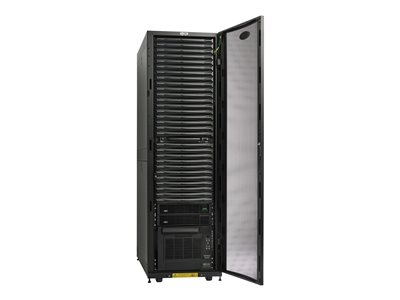

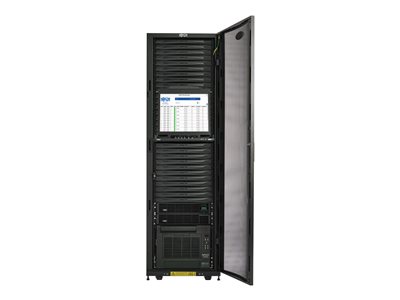

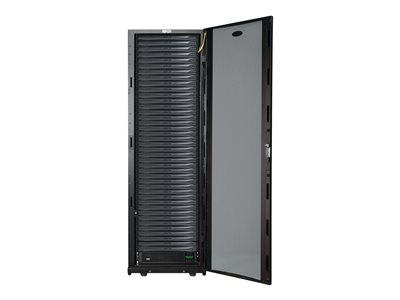

Tripp Lite EdgeReady Micro Data Center – 40U, 3 kVA UPS, Network Management and PDU, 120V Assembled/Tested Unit – Rack cabinet – floor-standing – 40U – 19″
Tripp Lite’s EdgeReady micro data centers ship three business days after order receipt, assembled and tested. 40 base configurations are available for immediate order, or Tripp? Lite’s solutions team can customize every aspect of any base configuration to match your specific application. Customized solutions ship in as little as five business days.
Convenient and cost-effective EdgeReady micro data centers protect edge computing servers, storage and network hardware in locations where dedicated IT space is unavailable. Sites like branch offices, banks, retail locations, cell towers and factories often have little or no access to on-site IT staff, but they still require exceptional uptime for edge computing. Micro data centers require minimal space and support, yet provide availability comparable to a traditional data center.
Base configurations combine a rack enclosure, UPS system, network management card, environmental/security sensor, power distribution unit (PDU), downloadable network management software, passive cooling and optional active cooling.
Preconfigured IT infrastructure accelerates and standardizes installations for quick, easy, repeatable deployments and maintenance. Experienced solution experts design, validate, assemble and test solutions in a controlled environment to simplify orders, prevent configuration errors and reduce field costs. Reinforced shock pallets and torqued fittings stabilize shipment and support re-shipment from an intermediary configuration site.
Tripp Lite offers 40 base configurations, and you can customize any model for your application. Options include active cooling, extended runtime, KVM switches, console servers, added security, airflow management, cable managers, power cords, network cables and patch panels. You can also upgrade the base PDU, rack or UPS.
A SmartOnline UPS system provides voltage- and frequency-independent (VFI) operation, expandable battery backup, zero transfer time and pure sine wave output. On-line double conversion isolates equipment from blackouts, brownouts, overvoltages, transients, surges, line noise, harmonic distortion, electrical impulses and frequency variations to prevent damage, downtime and data loss. Included battery capacity outlasts most power problems, and optional battery packs increase runtime. A metered PDU plugs into the UPS system to provide numerous outlets and digital current metering. An optional switched PDU adds remote current monitoring, threshold notifications and outlet control.
A network management card provides monitoring, control and alerts via SNMP, Web, SSH or telnet. An environmental sensor monitors temperature, humidity and digital inputs. Free PowerAlert Network Management System manages up to 250 units, or you can use your SNMP-compatible software of choice. Additional options include network-accessible KVM switches and console servers with fail-safe remote access.
A PCI-compliant steel cabinet with EIA-standard mounting rails secures rack-mounted IT equipment. Doors and side panels lock to prevent unauthorized access, and an optional door-monitoring kit enables remote intrusion detection.
Optional close-coupled air conditioning units cool efficiently and operate at remote sites without user intervention. A built-in evaporator prevents condensation accumulation, units restart automatically after power failures and all models support network management.
Combining several field-proven product lines, EdgeReady micro data centers leverage Tripp Lite’s unique manufacturing efficiencies to provide a strong balance of features, quality and value.
Key Selling Points
Ships 3 business days from order receipt or as little as 5 days when customized
Provides 40U rack space, 32 outlets and 3 kVA with expandable battery backup for IT equipment
On-line UPS provides VFI operation, zero transfer time and pure sine wave output
Network management card and environmental sensor provide remote monitoring, control and alerts
Close-coupled rack-mount and external air conditioning options provide efficient cooling
2-year limited warranty
