Description: PDU METERED 120V 15A 5-15R 8OUTLET 5 15P
Tripp Lite PDU Metered 120V 15A 5-15R 8 Outlet 5-15P 24″ Height 0URM – Vertical rackmount – power distribution unit (rack-mountable) – 15 A – AC 120 V – 1.44 kW – input: NEMA 5-15P – output connectors: 8 – 0U – 15 ft cord
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Key Selling Points
15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
Two-digit lighted meter reports combined total output current in amps
Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
0U 24in / 61cm vertical rackmount format installs using no rack spaces

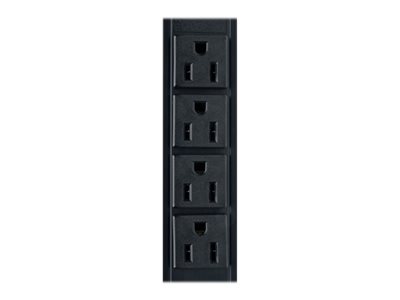

8 NEMA 5-15R outlets

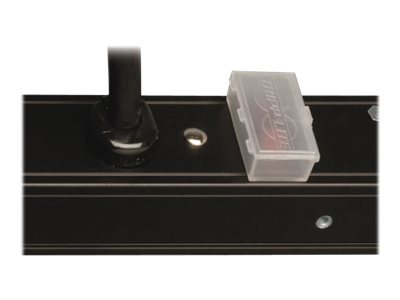

Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
Toolless installation supported in button-mount compatible equipment racks
Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks
Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
