Vertiv Geist Horizontal Switched Rack PDU1U| 32A| (12) Combination Outlets C13/C19| 1P+N+E| 200v/240v| 7.3kW| Horizontal PDU|Outlet Level… VP59100


Vertiv Geist Horizontal Switched Rack PDU – 1U| 32A| (12) Combination Outlets C13/C19| 1P+N+E| 200v/240v| 7.3kW| Horizontal PDU|
Provide circuit protection and easy configuration for trouble-free access.
Remotely control individual outlets for rebooting of locked equipment with switched PDUs.
1U rack PDU with horizontal form factor, ideal for short racks and small network closets.
32A| 200V-240V| (12) Combination C13/C19 outlets| 1P+N+E| 7.3kW.
Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment.
Analyze data and status through a Web browser or serial connection to ensure efficiency.
Three-year warranty is extendable to five years if unit is registered within 120 days of purchase.

SKU: VP59100 Categories: , Brand: Vertiv


Vertiv Geist Horizontal Switched Rack PDU – 1U| 32A| (12) Combination Outlets C13/C19| 1P+N+E| 200v/240v| 7.3kW| Horizontal PDU|

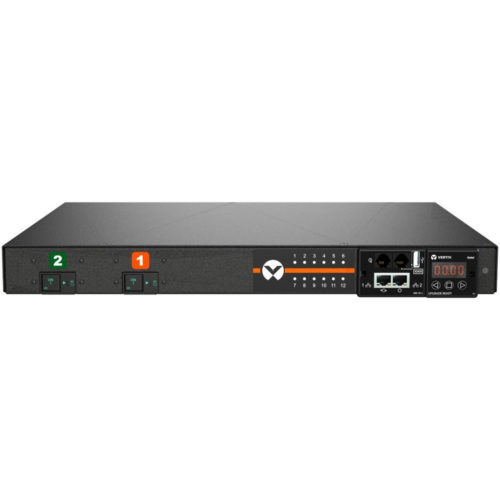

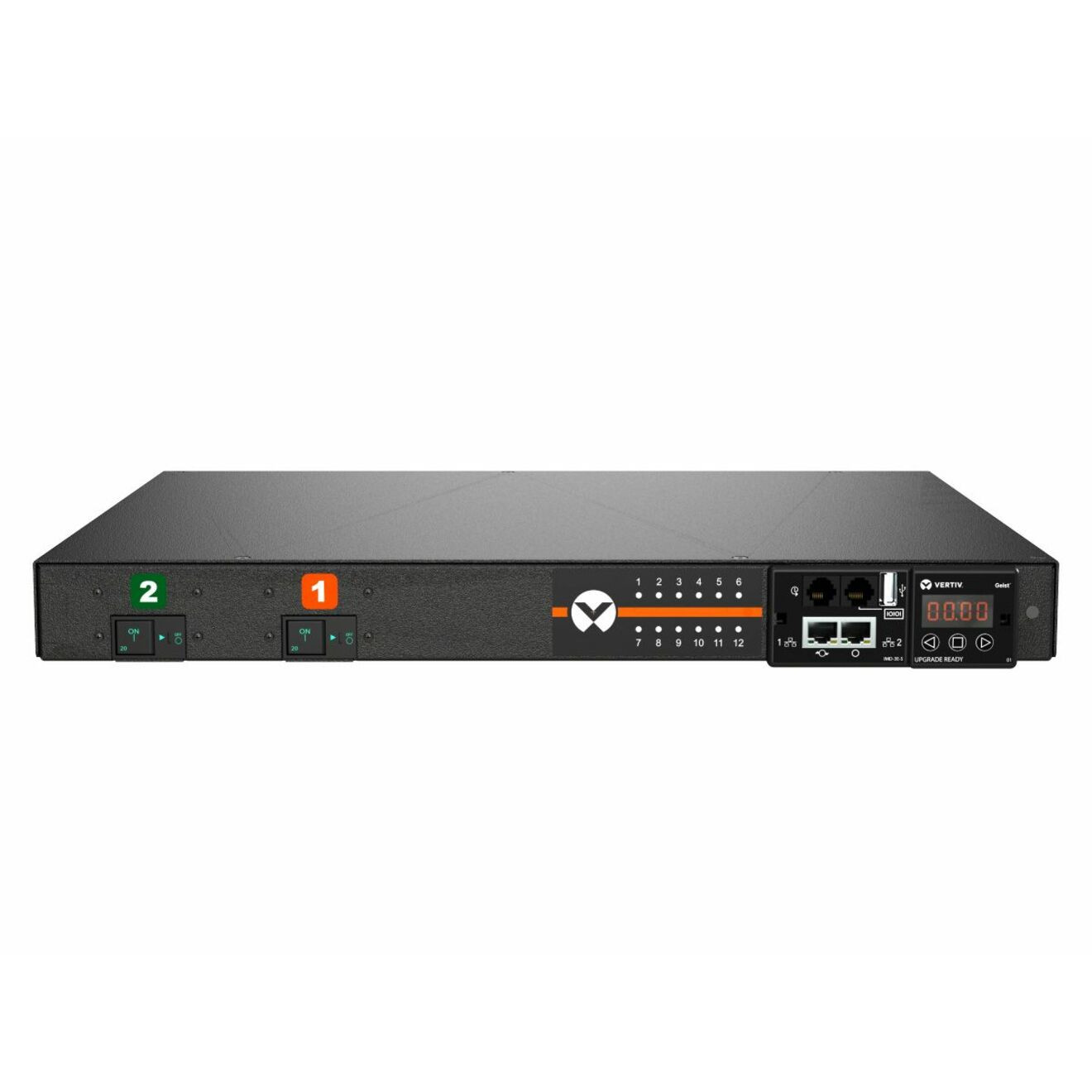

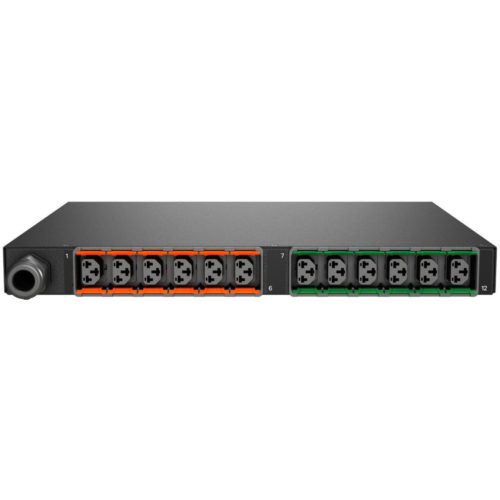

The Vertiv Geist Upgradeable Switched Rack PDU VP59100 is a 32A, 200V/240V, 1U horizontal rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP59100 has 12 Combination Outlet C13/C19 outlets and a 1P+N+E plug providing 7.3kW in power capacity. This 1U rack PDU is designed for easy access in the rack, making it ideal for short cabinets and small network closets. This Switched rPDU allows you to remotely manage receptacles to avoid accidental overloads, or reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each unit undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip.

More from the Manufacturer

Additional information

Weight 17 lbs
Dimensions 12.00 × 17.00 × 1.72 in
Package Contents rPDU MGS3E1R6-12CF13-3PS6B2H10-S 12-Outlets PDU, 10ft / 3m cable,
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number VP59100
Manufacturer Website Address
Packaged Quantity 1 Box
Limited Warranty 5 Year
Output Voltage 230 V AC
Input Current 32 A
Management DHCP, HTTP, HTTP, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, Syslog, TACACS+, <b>SNMP:</b><br /> v1, v2c, v3,
Manufacturer Vertiv
Product Model MGS3E1R6-12CF13-3PS6B2H10-S
Product Name rPDU MGS3E1R6-12CF13-3PS6B2H10-S 12-Outlets PDU
Mount Type Rack-mountable, Cabinet-mountable
Protection Type Overcurrent Protection, Single Pole
Product Series rPDU
Rack Height 1U
Brand Name Geist
Plug/Connector Type IEC 60309 1P + N + E (IP44)
Input Voltage Range 200 V AC - 240 V AC
Country of Origin United States
Phase Single Phase
Receptacle Type Combination C13/C19
Network (RJ-45) Yes
TAA Compliant Yes
PDU Type Switched
Mounting Orientation Horizontal
Power Rating (Watt) 7300 W
Product Color Black
Receptacle Detail 12 x Combination C13/C19
Plug/Connector Detail 1 x IEC 60309 1P + N + E (IP44)
Additional Information Connects to a Vertiv Geist Environmental Monitor or rPDU via Plug-n-Play sensor port., Receive alerts via email, SMS, or SNMP traps for abnormal environmental conditions from the connected Rack PDU., Daisy-chain sensors together to simplify installation and cable management., Ideal for monitoring temperature, humidity, and dewpoint across a row of racks.,
Cord Length 10 ft
Modem (RJ-11) No
Serial Port Yes
Modem (RJ-12) Yes
Remote Outlet Switching Yes
GTIN 3540260188720
EAN 3540260188720
UNSPSC 39121017
