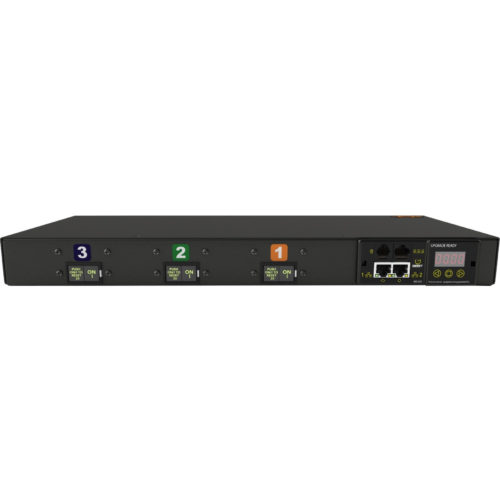

Geist MN02E1R1-06L198-4CS15A0H10-S 6-Outlets PDU
PDU provides power control as remote controlled relay & load monitoring.
Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs.

SKU: I20210L Categories: , Brand: Vertiv


Geist MN02E1R1-06L198-4CS15A0H10-S 6-Outlets PDU

The I20210L provides real-time power metrics to help prevent overloads and safely optimize load levels. The unit offers local and IP-based monitoring with quick access to real-time power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, I20210L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module; all without causing any interruption.

Additional information

Weight 17 lbs
Dimensions 8.50 × 17.00 × 1.72 in
Package Contents MN02E1R1-06L198-4CS15A0H10-S 6-Outlets PDU, Adjustable Mount Brackets,
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number I20210L
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 35 A
Management HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1/v2c/v3, JSON, JSON API, RSTP,
Manufacturer Vertiv
Product Model MN02E1R1-06L198-4CS15A0H10-S
Product Name MN02E1R1-06L198-4CS15A0H10-S 6-Outlets PDU
Mount Type Rack-mountable
Protection Type Overcurrent Protection, Overload Protection
Rack Height 1U
Brand Name Geist
Plug/Connector Type 3P+E CA
Country of Origin United States
Phase Three Phase
Receptacle Type U-Lock IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Horizontal
Power Rating (Watt) 10 kW
Receptacle Detail 6 x U-Lock IEC 60320 C19
Plug/Connector Detail 1 x 3P+E CA
UNSPSC 39121017
