Vertiv Geist MN02E4B0-30PN63-2TL56A0A10-S-A 30-Outlets PDUMonitoredNEMA L22-20P24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19230 V AC,… I20296L

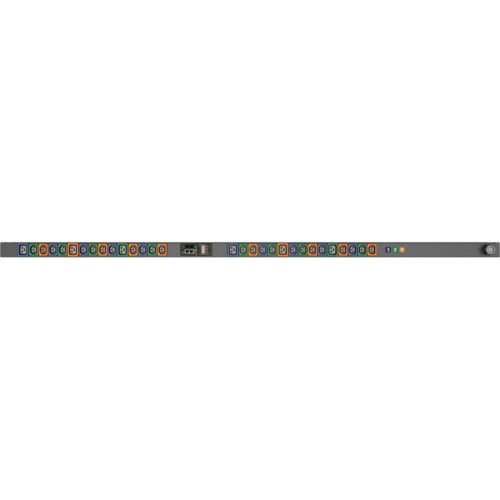

Geist MN02E4B0-30PN63-2TL56A0A10-S-A 30-Outlets PDU
PDU provides power control as remote controlled relay & load monitoring.
Before critical input source become overloaded always be warned with monitored PDUs.

SKU: I20296L Categories: , Brand: Vertiv


Geist MN02E4B0-30PN63-2TL56A0A10-S-A 30-Outlets PDU

The I20296L provides real-time power metrics to help prevent overloads and safely optimize load levels. The unit offers local and IP-based monitoring with quick access to real-time power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, I20296L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module; all without causing any interruption.

Additional information

Weight 21 lbs
Dimensions 2.00 × 2.00 × 7.00 in
Package Contents MN02E4B0-30PN63-2TL56A0A10-S-A 30-Outlets PDU, Vertical Mounting Bracket Kit,
Product Type PDU
Input Voltage 230 V AC, 415 V AC
Manufacturer Part Number I20296L
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 230 V AC
Input Current 20 A
Length 66.3"
Management HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1/v2c/v3, JSON, JSON API, RSTP,
Manufacturer Vertiv
Product Model MN02E4B0-30PN63-2TL56A0A10-S-A
Product Name MN02E4B0-30PN63-2TL56A0A10-S-A 30-Outlets PDU
Mount Type Rack-mountable
Protection Type Overload Protection
Rack Height 0U
Brand Name Geist
Plug/Connector Type NEMA L22-20P
Country of Origin United States
Phase Three Phase
Receptacle Type U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 11 kW
Receptacle Detail 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19
Plug/Connector Detail 1 x NEMA L22-20P
UNSPSC 39121017
