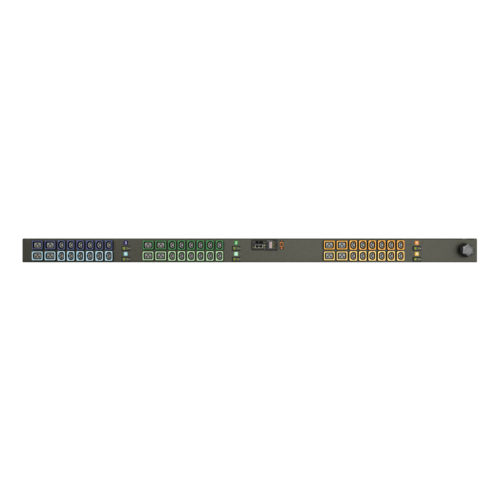

Geist MN02E9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU

SKU: I20155L Categories: , Brand: Vertiv


Geist MN02E9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU

The I20155L provides real-time power metrics to help prevent overloads and safely optimize load levels. The unit offers local and IP-based monitoring with quick access to real-time power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, I20155L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module; all without causing any interruption.

Additional information

Weight 47 lbs
Dimensions 3.40 × 3.80 × 7.00 in
Package Contents MN02E9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU, Vertical Mounting Bracket Kit,
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number I20155L
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 60 A
Length 72"
Management HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1/v2c/v3, JSON, JSON API, RSTP,
Manufacturer Vertiv
Product Model MN02E9W1-48PZB8-6PS15D0A10-S
Product Name MN02E9W1-48PZB8-6PS15D0A10-S 48-Outlets PDU
Mount Type Rack-mountable
Protection Type Overload Protection, Overcurrent Protection, Double Pole
Brand Name Geist
Plug/Connector Type IEC 60309 3P+E 60A
Country of Origin United States
Phase Three Phase
Receptacle Type U-Lock IEC 60320 C13
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 17.20 kW
Receptacle Detail 36 x U-Lock IEC 60320 C13
Plug/Connector Detail 1 x IEC 60309 3P+E 60A
UNSPSC 39121017
