Vertiv Geist MU02E1R0-10L137-2C20A9H00-S 10-Outlets PDUMonitoredIEC 60320 C2010 x U-Lock IEC 60320 C13120 V AC, 230 V ACNetwork (RJ-45)… UI20027L

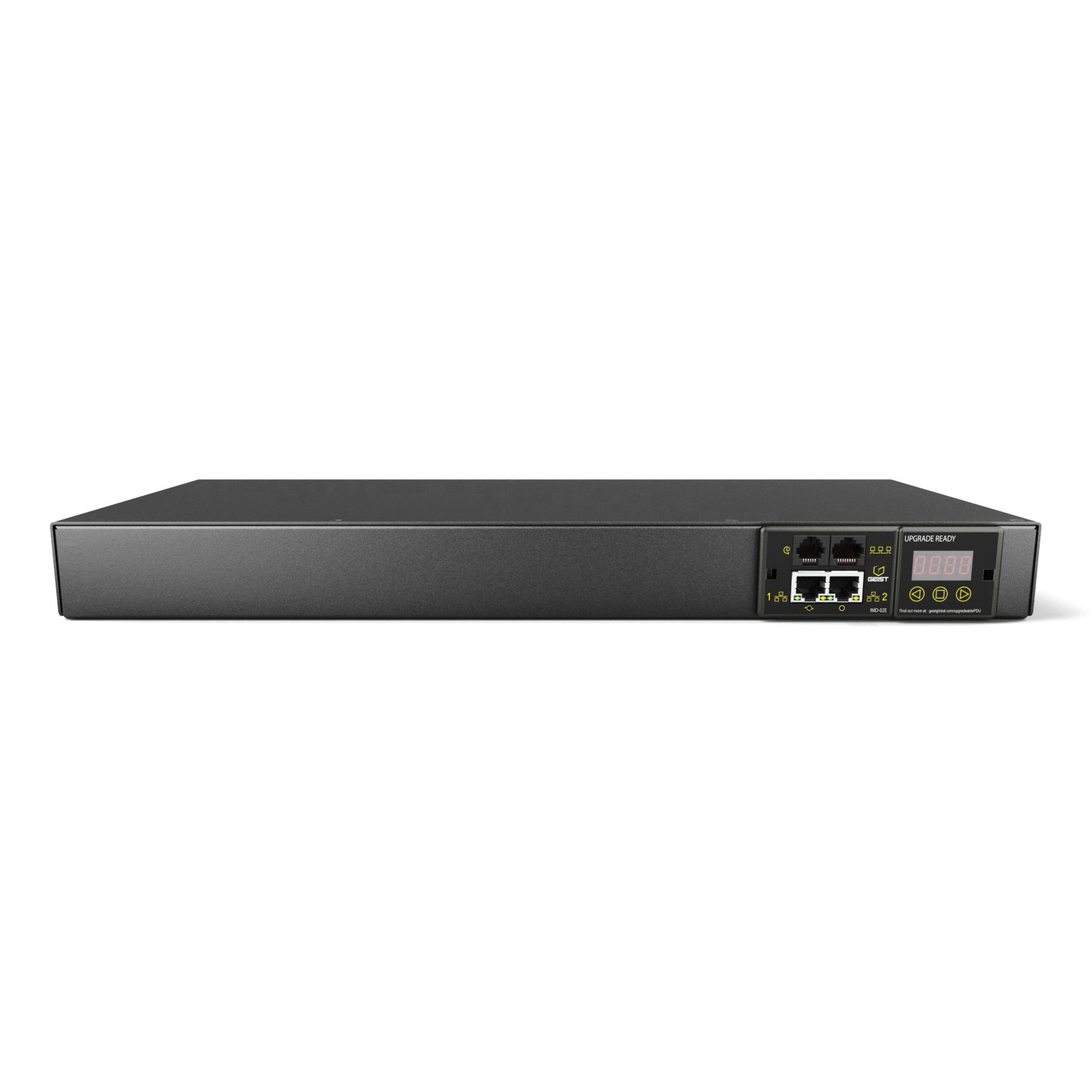

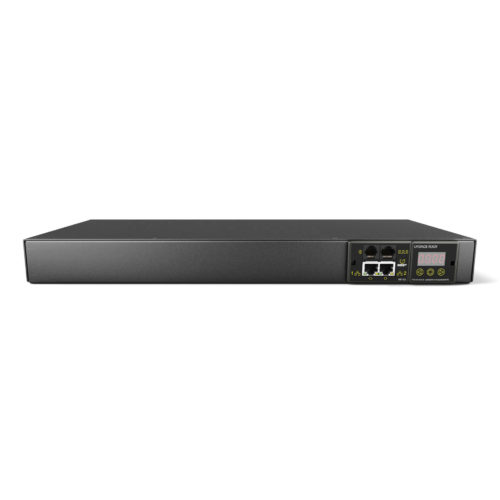

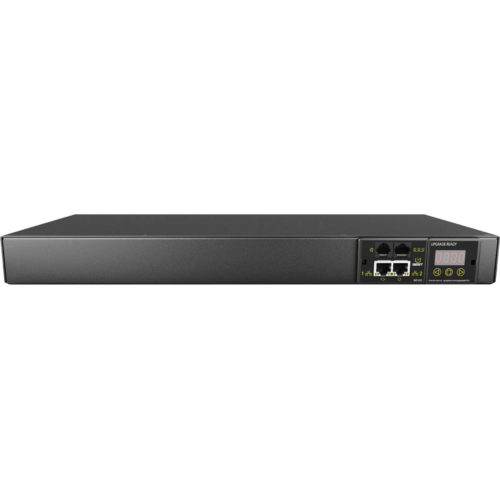

Geist MU02E1R0-10L137-2C20A9H00-S 10-Outlets PDU
Electric power fitted to racks of computers and networking equipment within a data center.
Before critical input source become overloaded always be warned with monitored PDUs.

SKU: UI20027L Categories: , Brand: Vertiv


Geist MU02E1R0-10L137-2C20A9H00-S 10-Outlets PDU

The UI20027L provides real-time power metrics to help prevent overloads and safely optimize load levels. The unit offers local and IP-based monitoring with quick access to real-time power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, UI20027L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module; all without causing any interruption.

Additional information

Weight 17 lbs
Dimensions 8.50 × 17.00 × 1.72 in
Package Contents MU02E1R0-10L137-2C20A9H00-S 10-Outlets PDU, Adjustable Mount Brackets,
Product Type PDU
Input Voltage 120 V AC, 230 V AC
Manufacturer Part Number UI20027L
Manufacturer Website Address
Limited Warranty 5 Year
Input Current 20 A
Management HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1/v2c/v3, JSON, JSON API, RSTP,
Manufacturer Vertiv
Product Model MU02E1R0-10L137-2C20A9H00-S
Product Name MU02E1R0-10L137-2C20A9H00-S 10-Outlets PDU
Mount Type Rack-mountable
Rack Height 1U
Brand Name Geist
Plug/Connector Type IEC 60320 C20
Input Voltage Range 100 V AC - 240 V AC
Receptacle Type U-Lock IEC 60320 C13
Environmentally Friendly Yes
Environmental Certification RoHS, China RoHS
Output Voltage Range 100 V AC - 120 V AC, 208 V AC - 240 V AC
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Horizontal
Power Rating (Watt) 3600 W

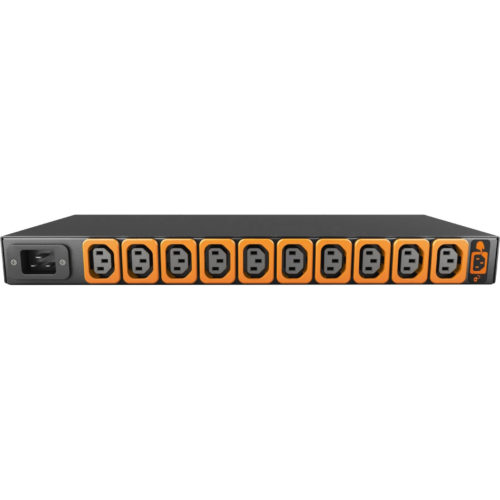

Receptacle Detail 10 x U-Lock IEC 60320 C13
Plug/Connector Detail 1 x IEC 60320 C20
UNSPSC 39121017
