Vertiv Geist rPDU MN03E8W1-24P6H8-5CS15A0A10-S 24-Outlets PDUMonitored3P+E CA6 x U-Lock IEC 60320 C13, 12 x U-Lock IEC 60320 C19230 V AC -… NI30063L

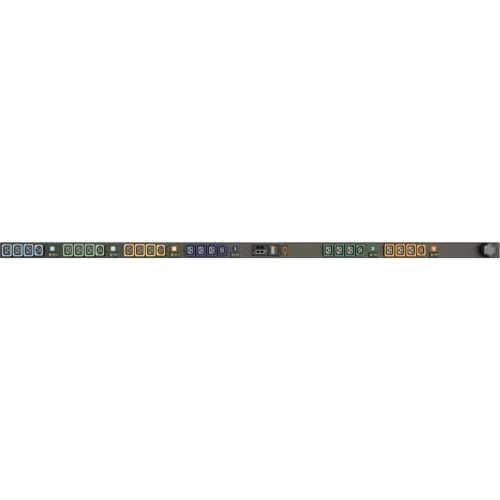

Geist rPDU MN03E8W1-24P6H8-5CS15A0A10-S 24-Outlets PDU
PDU allows power to be more efficiently distributed and controlled.
With monitored PDU, you can remotely monitor single-or three-phase voltage easily.

SKU: NI30063L Categories: , Brand: Vertiv


Geist rPDU MN03E8W1-24P6H8-5CS15A0A10-S 24-Outlets PDU

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.


  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Every unit is 100% tested for reliability and functionality.

Additional information

Weight 45 lbs
Dimensions 3.44 × 2.25 × 87.00 in
Package Contents rPDU MN03E8W1-24P6H8-5CS15A0A10-S 24-Outlets PDU, Vertical Mounting Bracket Kit,
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number NI30063L
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 50 A
Length 72"
Management <p>DHCP<br />HTTP<br />HTTPS<br />IPv4<br />IPv6<br />LDAP<br />NTP<br />RADIUS<br />RSTP<br />SSH<br />SMTP<br /> SNMP (v1/v2c/v3)<br />Syslog<br />TACACS+ </p>
Manufacturer Vertiv
Product Model MN03E8W1-24P6H8-5CS15A0A10-S
Product Name rPDU MN03E8W1-24P6H8-5CS15A0A10-S 24-Outlets PDU
Mount Type Rack-mountable
Protection Type Double Pole, Overcurrent Protection
Product Series rPDU
Brand Name Geist
Plug/Connector Type 3P+E CA
Country of Origin United States
Phase Three Phase
Receptacle Type U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
TAA Compliant Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 14.40 kW
Receptacle Detail 6 x U-Lock IEC 60320 C13, 12 x U-Lock IEC 60320 C19
Plug/Connector Detail 1 x 3P+E CA
UNSPSC 39121017
