Vertiv Geist rPDU MNU3EGW1-36PT68-3TL6A0A10-S 36-Outlets PDUSwitched Outlet MonitoredNEMA L6-30P30 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60… VP5870V-B

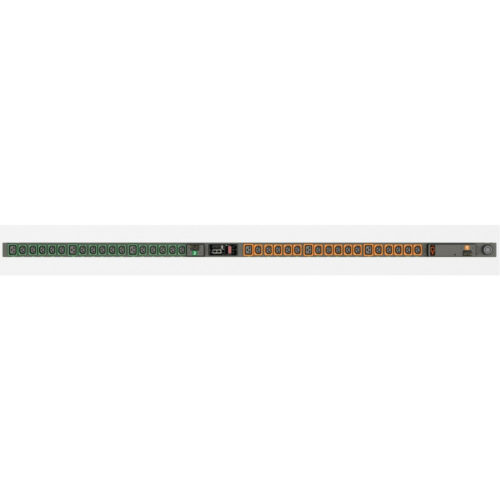

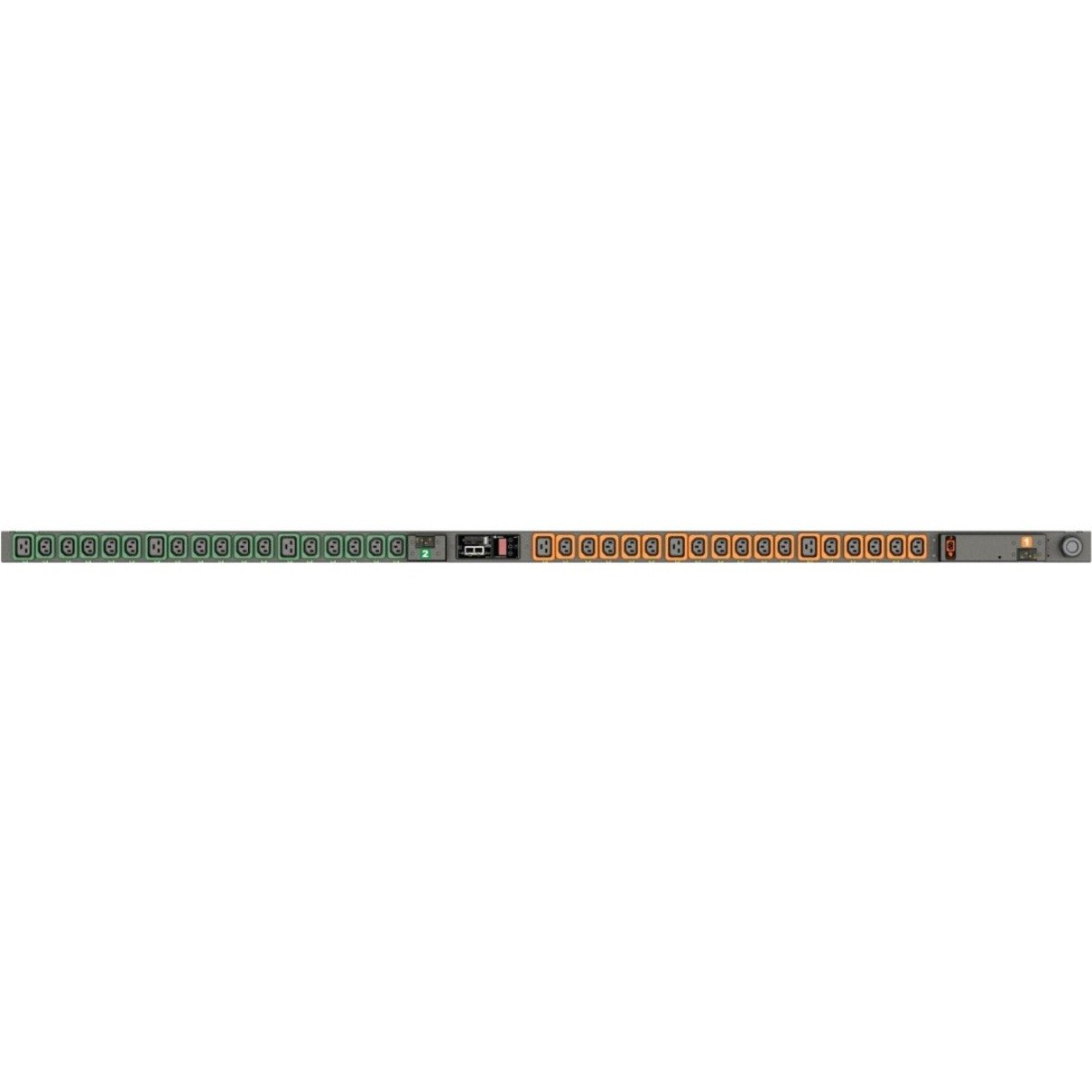

Geist rPDU MNU3EGW1-36PT68-3TL6A0A10-S 36-Outlets PDU

SKU: VP5870V-B Categories: , Brand: Vertiv


Geist rPDU MNU3EGW1-36PT68-3TL6A0A10-S 36-Outlets PDU

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.


  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

Additional information

Weight 30 lbs
Dimensions 2.60 × 2.00 × 9.00 in
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number VP5870V-B
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 30 A
Length 70"
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, Syslog, TACACS+, <b>SNMP:</b><br /> v1, v2c, v3,
Manufacturer Vertiv
Product Model MNU3EGW1-36PT68-3TL6A0A10-S
Product Name rPDU MNU3EGW1-36PT68-3TL6A0A10-S 36-Outlets PDU
Mount Type Rack-mountable
Protection Type Double Pole, Overcurrent Protection, Circuit Protection
Product Series rPDU
Rack Height 0U
Brand Name Geist
Plug/Connector Type NEMA L6-30P
Input Voltage Range 200 V AC - 240 V AC
Country of Origin United States
Receptacle Type U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
TAA Compliant Yes
PDU Type Switched Outlet Monitored
Mounting Orientation Vertical/Toolless
Power Rating (Watt) 4900 W
Receptacle Detail 30 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19
Plug/Connector Detail 1 x NEMA L6-30P
UNSPSC 39121017
