Vertiv Geist rPDU MUR3E1R5-12CF17-2C20A9H00-S 12-Outlets PDUMonitoredIEC 60320 C2012 x Combination C13/C19Network (RJ-45)HorizontalRa… UR30200


Geist rPDU MUR3E1R5-12CF17-2C20A9H00-S 12-Outlets PDU
With PDUs decisions for load balancing and minimizing extra cost can be managed.
Before critical input source become overloaded always be warned with monitored PDUs.

SKU: UR30200 Categories: , Brand: Vertiv


Geist rPDU MUR3E1R5-12CF17-2C20A9H00-S 12-Outlets PDU

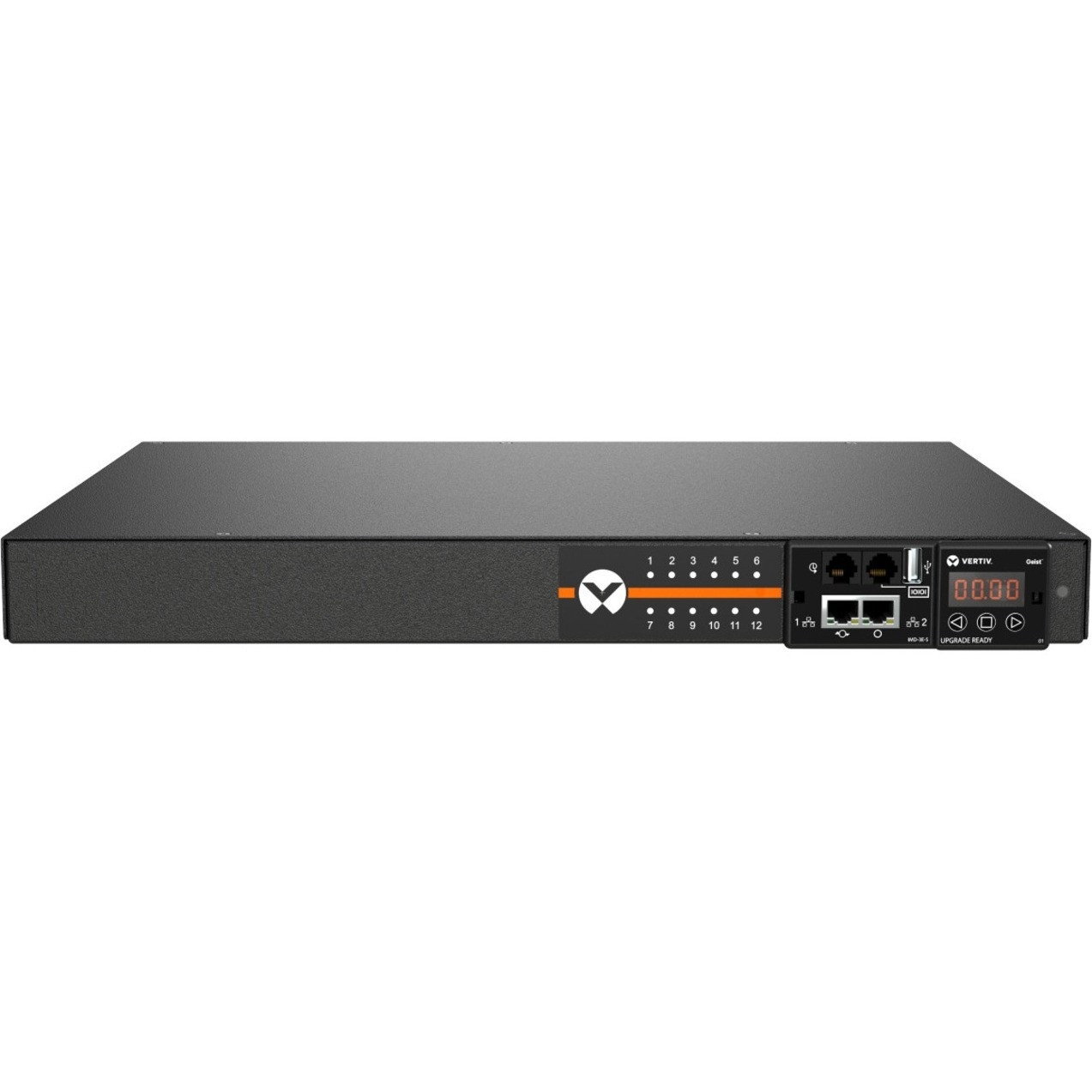

The Vertiv Geist Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. They include environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

The Upgradeable Outlet Level EC Monitored rPDU (UI30200) comes 16A OR 20A, 120V OR 208V OR 230V, 1.9kW or 3.3kW or 3.6kW, Horizontal, (12) Combination C13/C19, C20, Black Powder Coat. It offers Input and Outlet power monitoring, environmental monitoring via optional remote sensors. It has daisy chain Ethernet connectivity and local high visibility LED display. Every unit is 100% tested for reliability and functionality.

Additional information

Weight 14 lbs
Dimensions 12.00 × 17.00 × 1.72 in
Product Type PDU
Manufacturer Part Number UR30200
Manufacturer Website Address
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+,
Manufacturer Vertiv
Product Model MUR3E1R5-12CF17-2C20A9H00-S
Product Name rPDU MUR3E1R5-12CF17-2C20A9H00-S 12-Outlets PDU
Mount Type Rack-mountable
Product Series rPDU
Brand Name Geist
Plug/Connector Type IEC 60320 C20
Input Voltage Range 100 V AC - 240 V AC
Country of Origin United States
Receptacle Type Combination C13/C19
Output Voltage Range 100 V AC - 240 V AC
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Horizontal
Power Rating (Watt) 3600 W
Product Color Black Powder Coat
Receptacle Detail 12 x Combination C13/C19
Plug/Connector Detail 1 x IEC 60320 C20
UNSPSC 39121017
