Vertiv Geist rPDU VSSA104-102S20 10-Outlets PDUBasicNEMA 5-20P10 x NEMA 5-20R120 V ACVerticalRack-mountable, Cabinet-mountableTAA… 28054VH

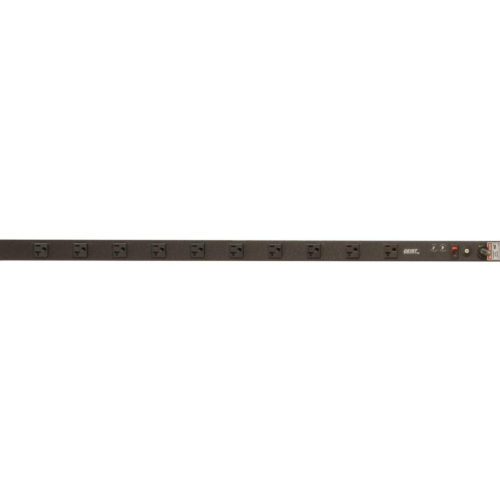

Geist rPDU VSSA104-102S20 10-Outlets PDU
Electric power fitted to racks of computers and networking equipment within a data center.
With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads.

SKU: 28054VH Categories: , Brand: Vertiv


Geist rPDU VSSA104-102S20 10-Outlets PDU

Basic surge protected rPDUs deliver reliable power to critical IT equipment within a rack or cabinet and comes equipped with built-in surge protection.


  • Ideal for environments lacking facility-level surge suppression or for applications requiring additional protection.
  • Reliable rack power distribution.
  • Every unit is 100% tested for reliability and functionality.
  • Simple and convenient configuration options for cord lengths and chassis colors.
  • Standard three-year warranty, upgraded to a five-year warranty with product registration.

Additional information

Weight 8.4 lbs
Dimensions 1.61 × 1.61 × 3.00 in
Product Type PDU
Input Voltage 120 V AC
Manufacturer Part Number 28054VH
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 120 V AC
Input Current 20 A
Length 38.5"
Manufacturer Vertiv
Product Model VSSA104-102S20
Product Name rPDU VSSA104-102S20 10-Outlets PDU
Mount Type Rack-mountable, Cabinet-mountable
Protection Type Overcurrent Protection, Surge Protection
Product Series rPDU
Brand Name Geist
Plug/Connector Type NEMA 5-20P
Input Voltage Range 100 V AC - 120 V AC
Country of Origin United States
Receptacle Type NEMA 5-20R
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
PDU Type Basic
Mounting Orientation Vertical
Power Rating (Watt) 1900 W
Receptacle Detail 10 x NEMA 5-20R
Plug/Connector Detail 1 x NEMA 5-20P
UNSPSC 39121017
